Choosing Ronen® Flange Nut Vision Sorting Machine means investing in stable production quality and significantly reduced after-sales risks. Its modular design also facilitates subsequent integration into automated production lines, providing long-term value to manufacturers.

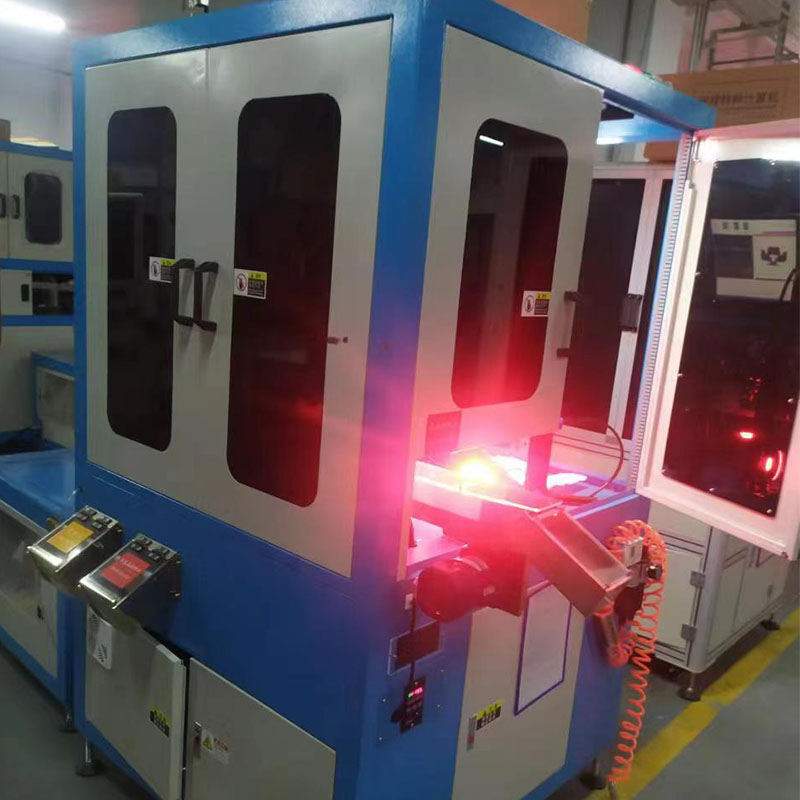

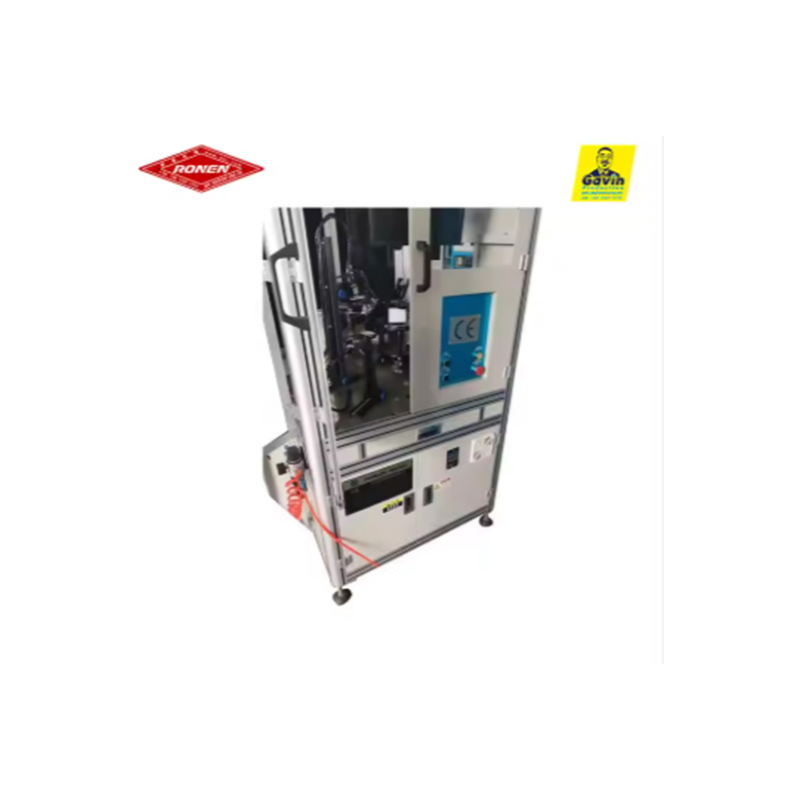

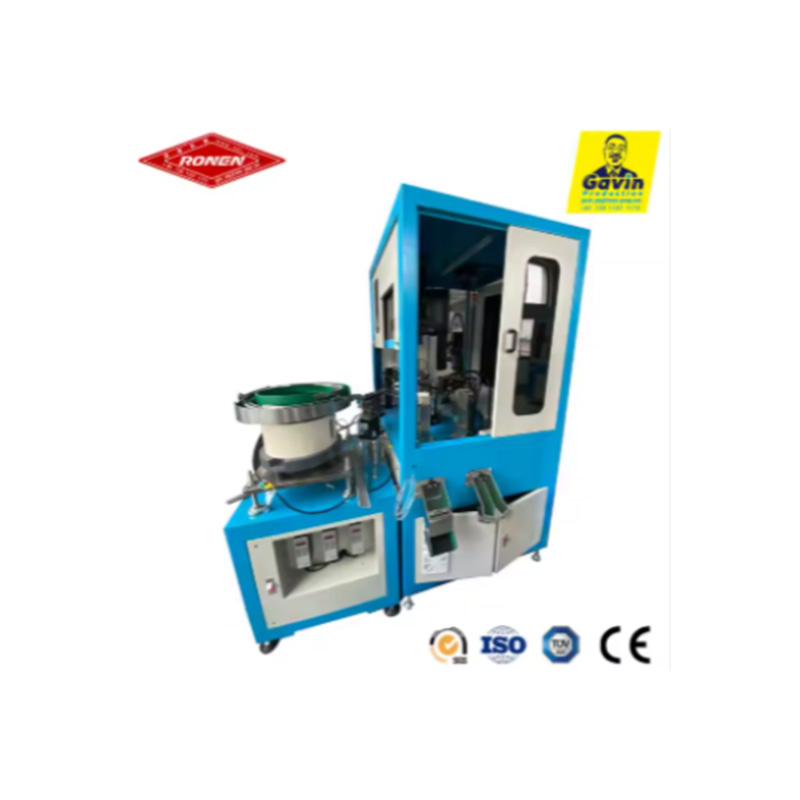

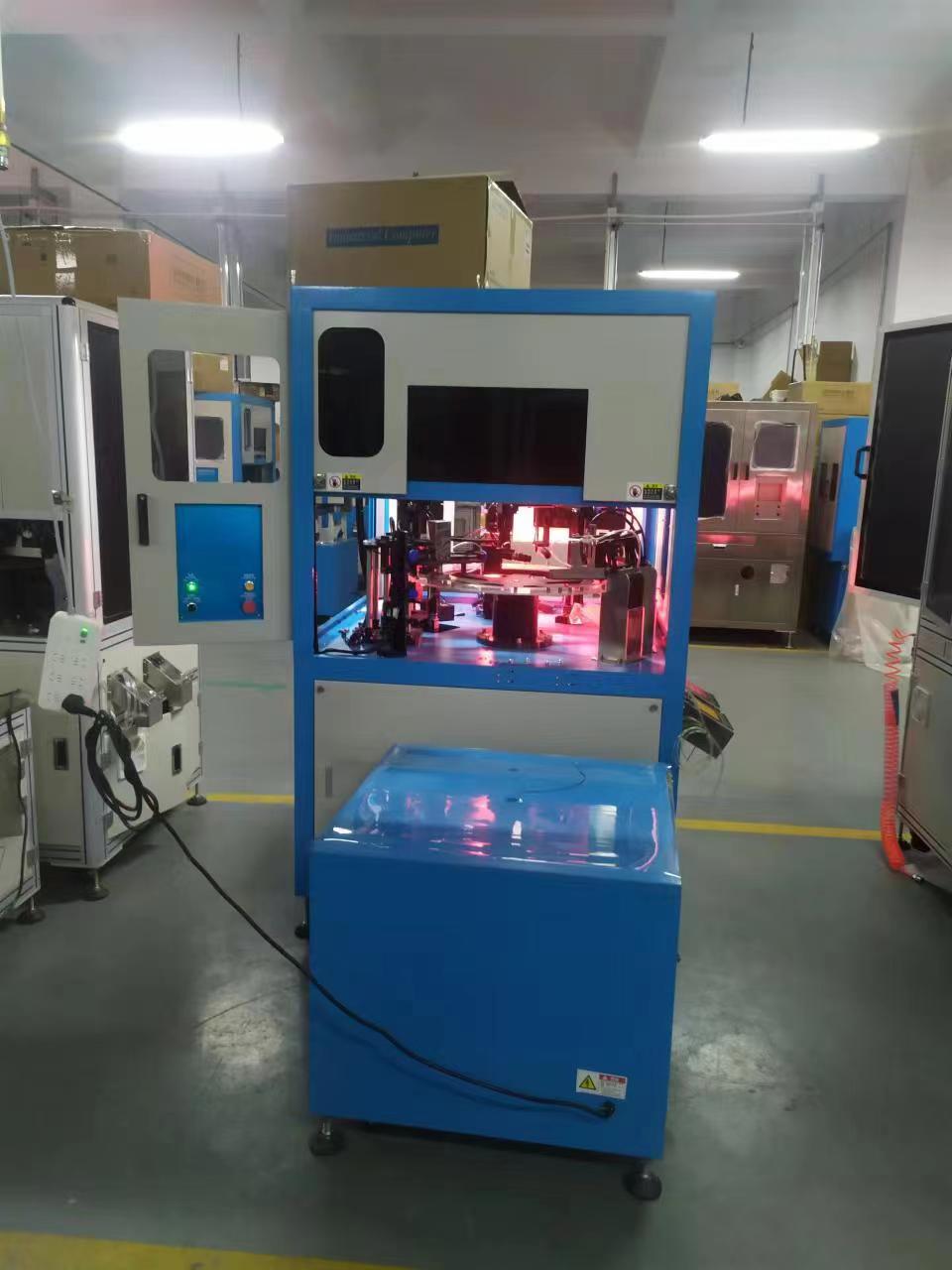

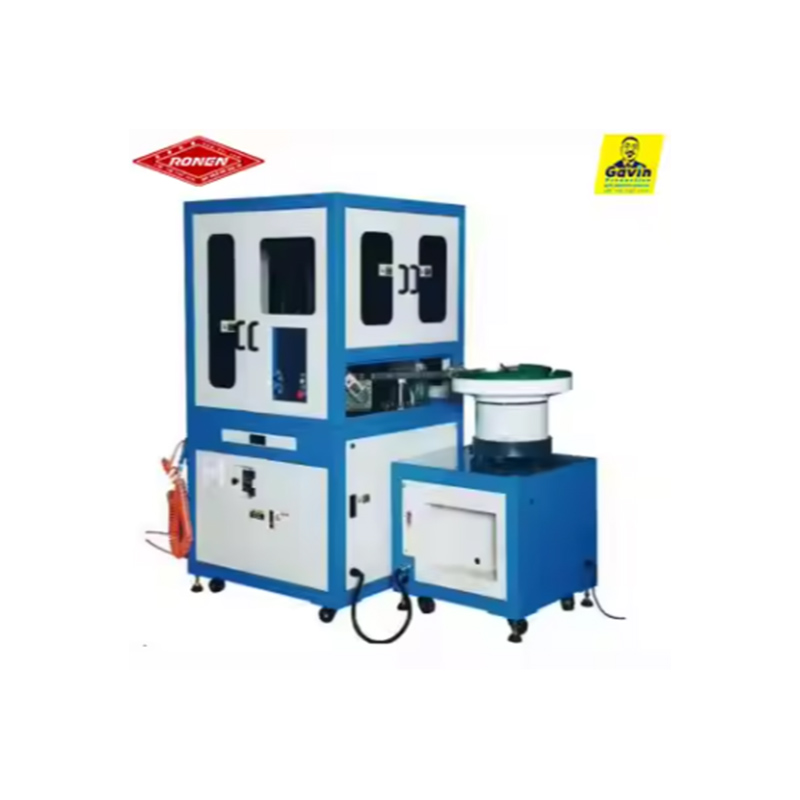

Ronen® Flange Nut Vision Sorting Machine integrates a high-resolution industrial camera with advanced algorithms to simultaneously inspect and sort flange nuts by aperture, thread, flatness, and surface defects at high speed, significantly replacing inefficient manual visual inspection.
Flange Nut Vision Sorting Machine features a durable stainless steel or anodized aluminum body. Its core vision system utilizes internationally renowned industrial cameras and lenses for stable imaging. Its transmission components utilize precision servo motors or stepper motors for precise positioning.
Flange Nut Vision Sorting Machine automates the entire inspection and sorting process. It has deep learning capabilities to identify complex defects and can quickly adapt to the inspection needs of flange nuts of different specifications and sizes, with extremely short changeover times.
The Sorting Machine is used in the following scenarios: at the end of the production line, as the last quality checkpoint before shipment; in the incoming inspection process, for rapid quality inspection of incoming materials.
| Item | PS-1100 | PSL-1300 | PSG-1300 | PSG-2300 |
| Wire Diameter(mm) |
Ø3.0-Ø8.0 |
Ø8.0-Ø16.0 |
Ø1.2-Ø3.0 |
Ø8-Ø20 |
| Head Width(mm) |
Ø5-Ø15 |
Ø10-Ø25 |
Ø2.5-Ø8 |
Ø8-Ø35 |
| Head Height(mm) | 2-10 | 2-25 | 0.5-7 |
|
| Length Under Head(mm) | 5-70 | 15-120 | 1.5-12 | - |
| Sorting precision(mm) | ±0.03 |
±0.03 |
±0.03 |
±0.03 |
| Sorting Speed(pcs/min) | 100-600 | 100-400 | 100-900 | 100-600 |
| Air Pressure(kg/cm³) | 5 | |||
| Computer | Industrial Computer | |||
| Digital Camera | BASLER |
BASLER |
BASLER |
BASLER |
| Net/Gross Weight(kg) | 800/1141 | 950/1351 | 785/1026 | 685/963 |
| Machine Dimension(L*W*H)mm | 2000*2000*2100 | 2200*2200*2100 | 1900*1600*1150 | 1400*1800*2130 |
| Dimension After Crating(Host/Vibrating Place+Computer Base)(L*W*H)mm |
1480*1270*2120 1580*1030*1970 |
1650*1580*2120 1800*1100*1970 |
950*1430*2240 | 2240*2080*2240 |
Technical advantages of the Flange Nut Vision Sorting Machine: Non-contact measurement avoids secondary damage to the workpiece; the test results are objective and stable, not affected by human subjective factors or fatigue; digital management allows all test data to be recorded, traced, and analyzed, providing support for SPC statistical process control and helping enterprises build digital factories.
