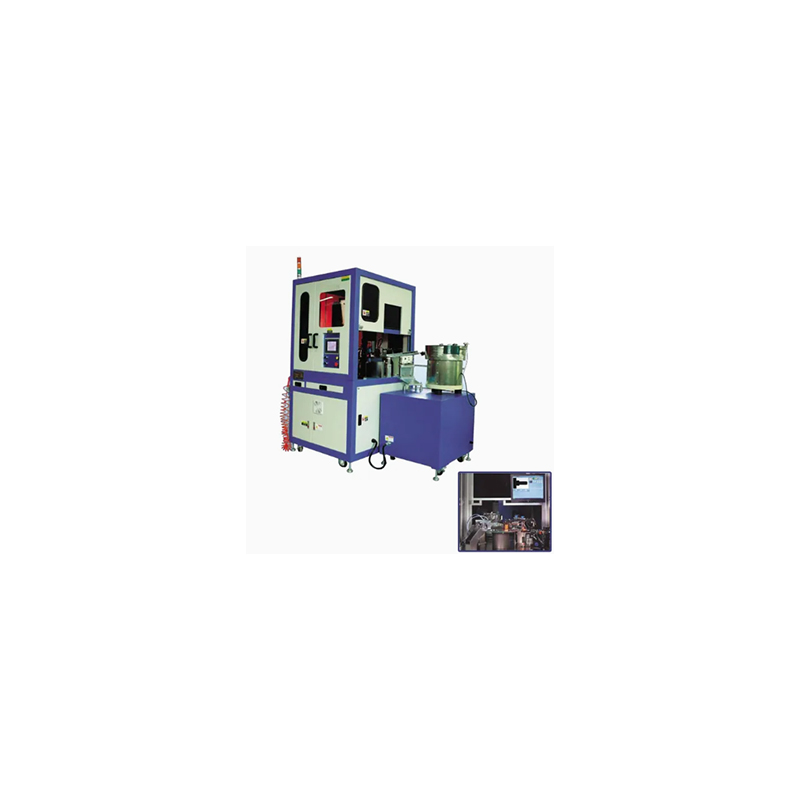

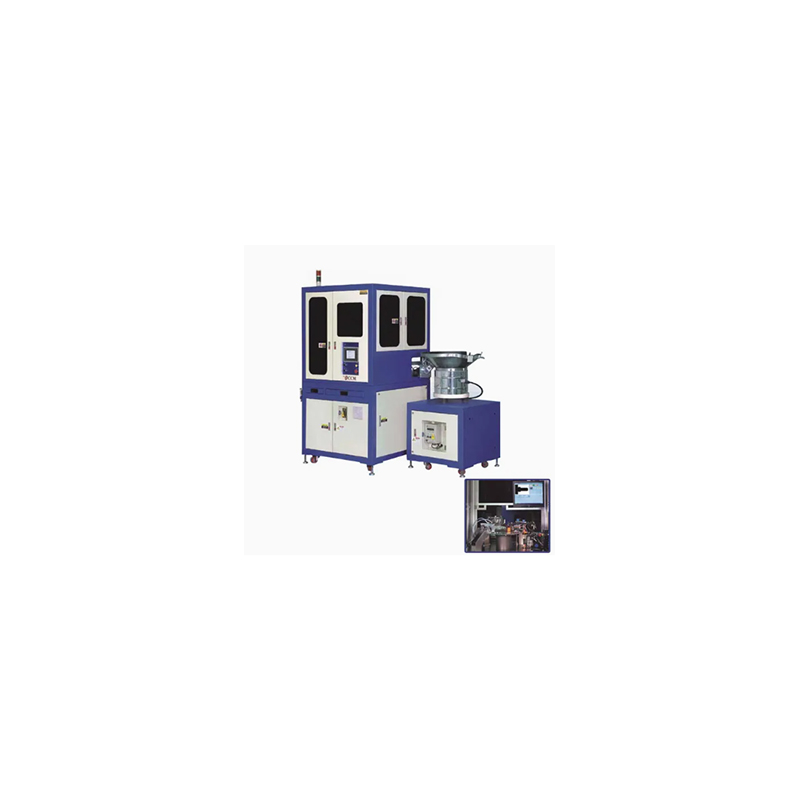

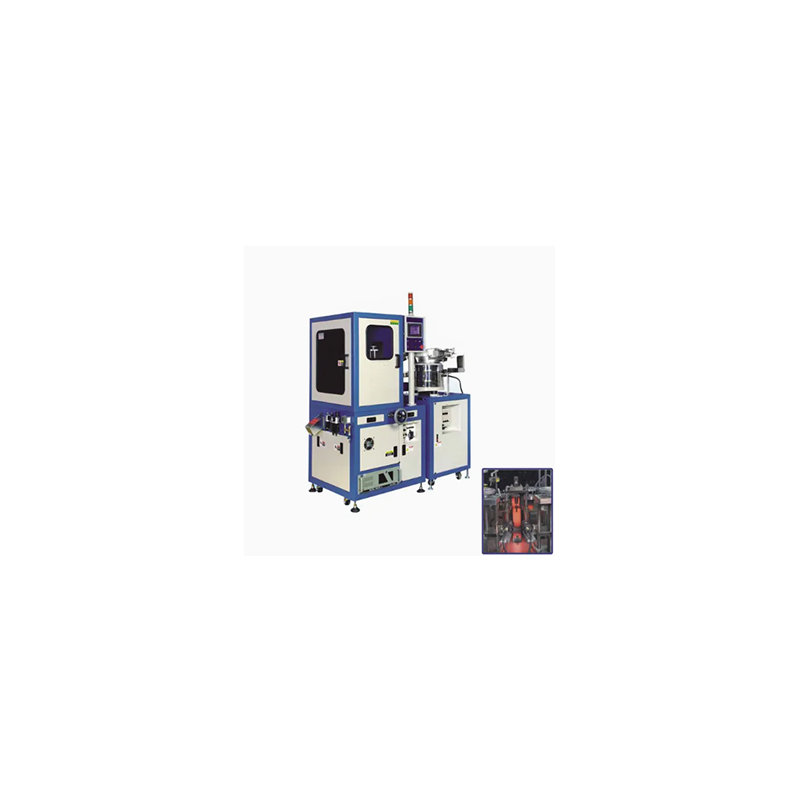

The Ronen® Nut and Bolt Sorting Machine, designed to meet manufacturers’ needs, can sort nuts and bolts by size. You just need to pour the mixed batches of nuts and bolts into the feeder, and the machine will use small screens to sort them into different bins. It can handle common sizes and doesn't require constant adjustments.
The Nut and Bolt Sorting Machine is specifically designed to sort and classify the produced products by specifications and to identify defective items. The vibrating conveyor feeds them into the inspection area and then sorts them into different trays according to the preset specifications.
The Nut and Bolt Sorting Machine can automatically sort mixed fasteners into specific categories. It can strictly implement preset standards for classification and process large quantities of unsorted screws, nuts and washers. This solves the problem of slow and error-prone manual sorting, saves a lot of manpower and material resources, and ensures the consistency of sorting batches that can be used for packaging, inventory or assembly lines.
The Machine employs various sensors to inspect each component. Common types include visual systems used to analyze shape, size, and head type, as well as laser sensors used to measure length, diameter, and pitch. Some machines may use weight or metal sensors to distinguish materials or detect defective parts.
Once the parts are identified, the Nut and Bolt Sorting Machine will activate a mechanism that sorts them into the correct collection bins. This is usually done by using compressed air jetters to blow the parts into specific slots, or by using mechanical push rods or baffles to guide the parts to the correct destinations. The speed of this mechanism determines the overall sorting speed of the machine.
| Item | PS-1100 | PSL-1300 | PSG-1300 | PSG-2300 |
| Wire Diameter(mm) |
Φ3.0-Φ8.0 |
Φ8.0-Φ16.0 |
Φ1.2-Φ3.0 |
Φ8-Φ20 |
| Head Width(mm) |
Φ5-Φ15 |
Φ10-Φ25 |
Φ2.5-Φ8 |
Φ8-Φ35 |
| Head Height(mm) | 2-10 | 2-25 | 0.5-7 |
|
| Length Under Head(mm) | 5-70 | 15-120 | 1.5-12 |
|
| Sorting Precision(mm) | ±0.03 |
±0.03 |
±0.03 |
±0.03 |
| Sorting Speed(PCS/min) | 100-600 | 100-400 | 100-900 | 100-600 |
|
Air Pressure(kg/cm³) |
5 |
|||
|
Computer |
Industrial Computer |
|||
| Digital Camera | BASLER |
BASLER |
BASLER |
BASLER |
| Net/Gross Weight(kg) | 800/1141 | 950/1351 | 785/1026 | 685/963 |
|
Machine Dimension(L*W*H)mm |
2000*2000*2100 | 2200*2200*2100 | 1900*1600*1150 | 1400*1850*2130 |
| Dimension After Crating(Host/Vibrating Place+Computer Base)(L*W*H)mm |
1480*1270*2120 1580*1030*1970 |
1650*1580*2120 1800*1100*1970 |
950*1430*2240 | 2240*2080*2240 |
The feature of the Nut and Bolt Sorting Machine is its high level of precision. The camera can magnify and view the thread profiles, and the sensor can measure the dimensions. It is much more accurate than the human eye. The feeding is also stable. The vibration table will not damage the bolts and nuts, and the discharging is neat without any jamming.
