Stainless Steel Screw Rolling Machine by Ronen® has the advantages of rapid speed and good stability, the capacity can be up to about 300pcs/min, it is advanced thread machine with higher speed in the current market, which is suitable for mass production in the large scope thread factory. We look forward to your cooperation and consultation.
Stainless Steel Screw Rolling Machine specialties:
1.Our machines adopt the forced oil feeding system, to make sure all components of the machine run in films of oil condition, and the machine could be durable for a long time.
2.Single rail skid way design makes the machine runs at high speed, and the production efficiency is also high.
3.Major installation kit of our machines are made from high-quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is endurable with long time preciseness.
Stainless Steel Screw Rolling Machine Parameter (Specification)
|
Model |
3H30A/B |
4H45A/B |
4H55A/B |
6H55A/B |
6H70B |
6H105B |
6H40BL |
8H80B |
8H105B |
|
Diameter Range (mm) |
2-3.5 |
2.5-4 |
3-5 |
4-6 |
4-6 |
4-8 |
4-8 |
5-8 |
5-10 |
|
Blank Length Max (mm) |
30 |
45 |
55 |
50 |
70/85 |
105/125 |
40 |
80 |
105/125 |
|
Max Thread Length (mm) |
30 |
40 |
50 |
45 |
70 |
100 |
40 |
75 |
100 |
|
Capacity (pcs/min) |
230-270 |
180-230 |
160-200 |
120-160 |
120-160 |
120-140 |
60 |
90-120 |
90-120 |
|
Main Motor（KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Height Of Die Pocket (mm) |
25*30*70/80 |
25*45*76/90 |
25*55*85/100 |
25*50*110/125 |
25*70*110/125 |
25*105*110/125 |
40*40*235/260 |
30*80*150/170 |
30*105*150/170 |
|
Oil Motor(KW) |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.37 |
0.37 |
|
Feed Motor(KW) |
0.37 |
0.4 |
0.5 |
0.37 |
0.6 |
0.6 |
0.5 |
0.6 |
0.6 |
|
Packing Volume (cm) |
150*91*140 |
170*125*150 |
172*130*150 |
185*125*150 |
195*145*160 |
200*160*160 |
234*140*160 |
245*150*160 |
244*170*160 |
|
NW (KG) |
570 |
850 |
1170 |
1400 |
1500 |
1700 |
2500 |
3100 |
3200 |
|
Model |
8H150B |
10H105B |
12H150B |
12TH150B |
14H105B |
16H150B/C |
20H150B/C |
24H150C |
|
Diameter Range (mm) |
5-10 |
6-10 |
8-14 |
8-14 |
8-14 |
10-18 |
16-22 |
20-25 |
|
Blank Length Max (mm) |
150/200 |
105/125 |
150/200 |
150/200 |
105 |
150/250 |
150/250 |
150/250 |
|
Max Thread Length (mm) |
150 |
100 |
150 |
150 |
100 |
150 |
150 |
150 |
|
Capacity (pcs/min) |
90-110 |
90-110 |
75 |
75 |
75 |
45-50 |
35-45 |
42 |
|
Main Motor（KW) |
11 |
11 |
15 |
15 |
15 |
22 |
30 |
37 |
|
Height Of Die Pocket (mm) |
30*150*150/170 |
30*105*150/170 |
40*150*190/210 |
40*150*190/210 |
40*150*190/210 |
40*150*235/260 |
50*150*285/310 |
50*150*380/420 |
|
Oil Motor (KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.36 |
0.36 |
0.36 |
|
Feed Motor (KW) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1 |
2 |
4 |
|
Packing Volume (cm) |
245*190*170 |
250*160*170 |
315*195*170 |
304*200*185 |
315*195*170 |
363*215*200+ |
410*215*200+ |
420*225*224+ |
|
NW (KG) |
3300 |
3500 |
4400 |
5200 |
4600 |
12300 |
14700 |
19000 |

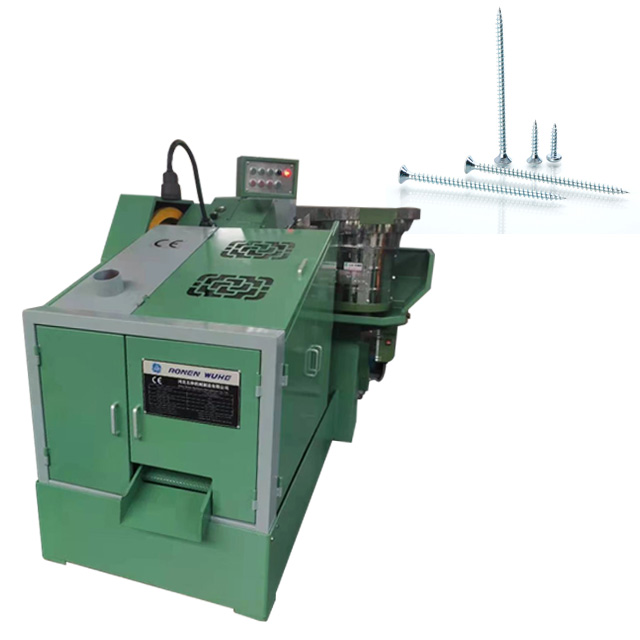

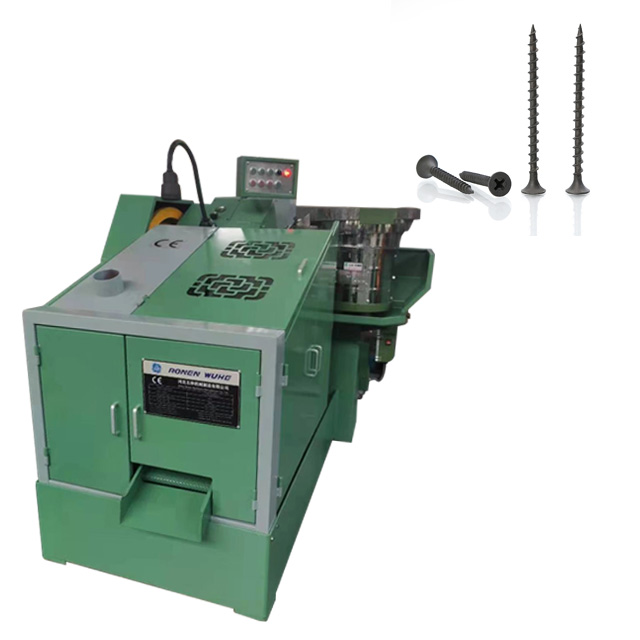

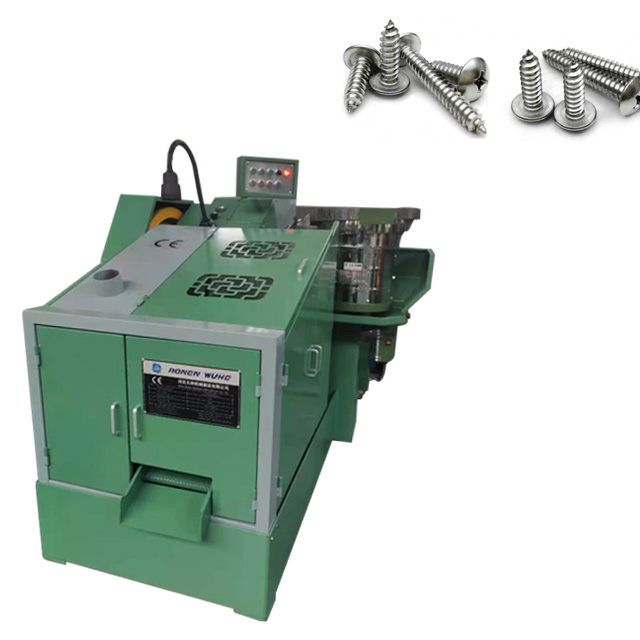

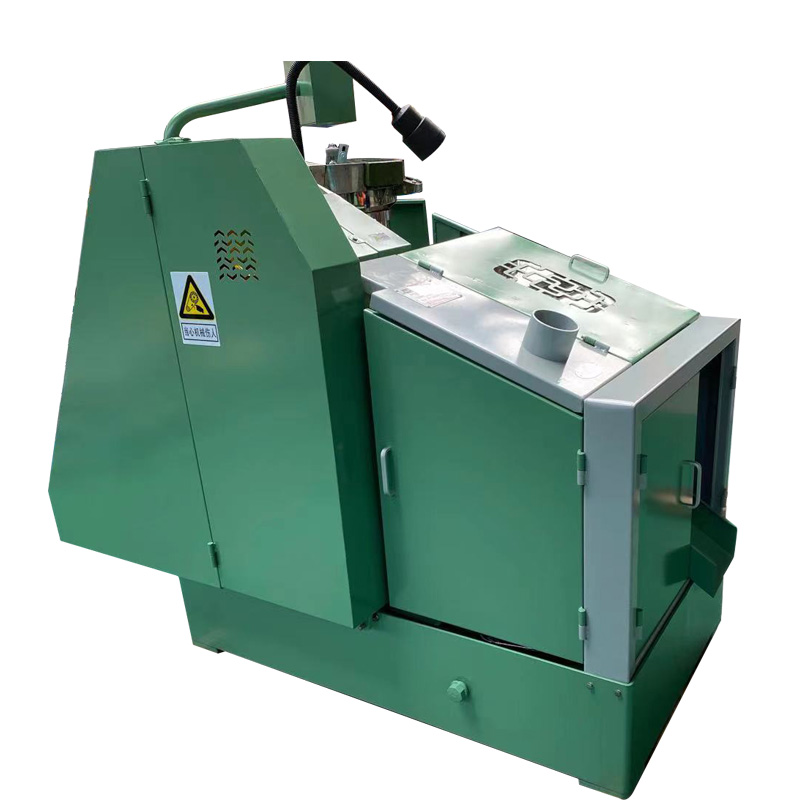

Machine Details And Finished Stainless Steel Screw Rolling Machine Display
GOST 8878 Screw Part Threading Machine by RONEN is mainly used for processing standard parts of external thread and high strength, including regular thread, trapezoid thread and modulus thread,etc.
Finished products:
Product Function Display Video
Stainless Steel Screw Rolling Machine working video.
Packing And Delivery
Stainless Steel Screw Rolling Machine is packing and shipping.
Certifications
Certificates for Stainless Steel Screw Rolling Machine.
FAQ
Q:Do you provide custom services?
A:Yes,we could customize the machine according to your samples or drawings.
Q.What kind of package do you offer?
A.Normally in wood box, to make sure all goods in good condition.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q:What can you buy from us?
A:Cold heading machine,cold forging machine,bolts nuts machine,screws machine,threading machine,etc.
