Self-tapping Screw Part Threading Machine

As the professional Cold Forging Machines (Fastener) manufacturer, we would like to provide you Self-tapping Screw Part Threading Machine. Ronen® with strict assembly and inspection requirements. As the top Fasteners Making Machines manufacturer in China, Ronen® has the high level in machine production and running.

Send Inquiry

Product Description

Ronen® as the professional manufacturer, we would like to provide you high quality Self-tapping Screw Part Threading Machine. And we will offer you the best after-sale service and timely delivery.


Self-tapping Screw Part Threading Machine features:

1.The key components of our machines are imported from Taiwan, Japan, and Germany, which are all complied with the all high-precision, high-hardness, high-abrasion resistant requirements.
2.Perfect design, easy operation.
3.Our machines adopt the forced oil feeding system, to make sure all components of the machine run in films of oil condition, and the machine could be durable for a long time.


Self-tapping Screw Part Threading Machine Parameter (Specification)

Model

3H30A/B

4H45A/B

4H55A/B

6H55A/B

6H70B

6H105B

6H40BL

8H80B

8H105B

Diameter Range

(mm)

2-3.5

2.5-4

3-5

4-6

4-6

4-8

4-8

5-8

5-10

Blank Length Max (mm)

30

45

55

50

70/85

105/125

40

80

105/125

Max Thread Length (mm)

30

40

50

45

70

100

40

75

100

Capacity

(pcs/min)

230-270

180-230

160-200

120-160

120-160

120-140

60

90-120

90-120

Main Motor(KW)

1.5

2.2

3

4

5.5

5.5

5.5

7.5

7.5

Height Of Die Pocket (mm)

25*30*70/80

25*45*76/90

25*55*85/100

25*50*110/125

25*70*110/125

25*105*110/125

40*40*235/260

30*80*150/170

30*105*150/170

Oil Motor(KW)

0.18

0.18

0.18

0.18

0.18

0.18

0.18

0.37

0.37

Feed Motor(KW)

0.37

0.4

0.5

0.37

0.6

0.6

0.5

0.6

0.6

Packing Volume (cm)

150*91*140

170*125*150

172*130*150

185*125*150

195*145*160

200*160*160

234*140*160

245*150*160

244*170*160

NW (KG)

570

850

1170

1400

1500

1700

2500

3100

3200


Model

8H150B

10H105B

12H150B

12TH150B

14H105B

16H150B/C

20H150B/C

24H150C

Diameter Range

(mm)

5-10

6-10

8-14

8-14

8-14

10-18

16-22

20-25

Blank Length Max (mm)

150/200

105/125

150/200

150/200

105

150/250

150/250

150/250

Max Thread Length (mm)

150

100

150

150

100

150

150

150

Capacity

(pcs/min)

90-110

90-110

75

75

75

45-50

35-45

42

Main Motor(KW)

11

11

15

15

15

22

30

37

Height Of Die Pocket (mm)

30*150*150/170

30*105*150/170

40*150*190/210

40*150*190/210

40*150*190/210

40*150*235/260

50*150*285/310

50*150*380/420

Oil Motor

(KW)

0.37

0.37

0.37

0.37

0.37

0.36

0.36

0.36

Feed Motor

(KW)

0.8

0.8

0.8

0.8

0.8

1

2

4

Packing Volume (cm)

245*190*170

250*160*170

315*195*170

304*200*185

315*195*170

363*215*200+
160*160*190

410*215*200+
160*160*190

420*225*224+
160*160*190

NW (KG)

3300

3500

4400

5200

4600

12300

14700

19000


Machine Details And Finished Products Display

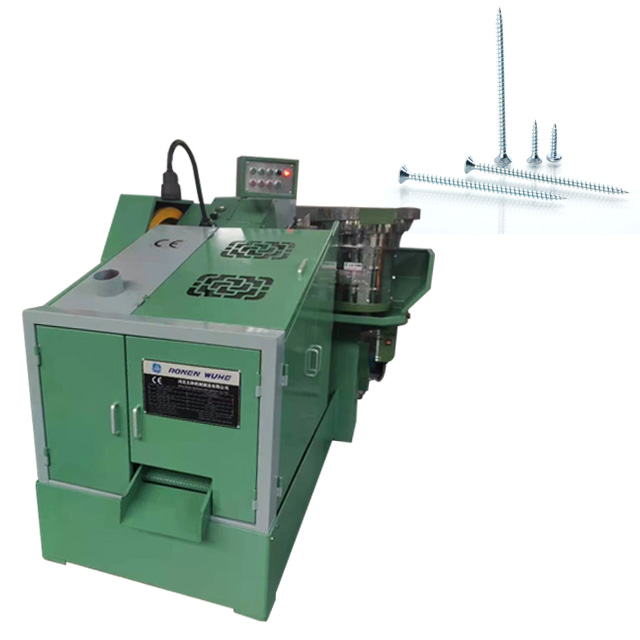

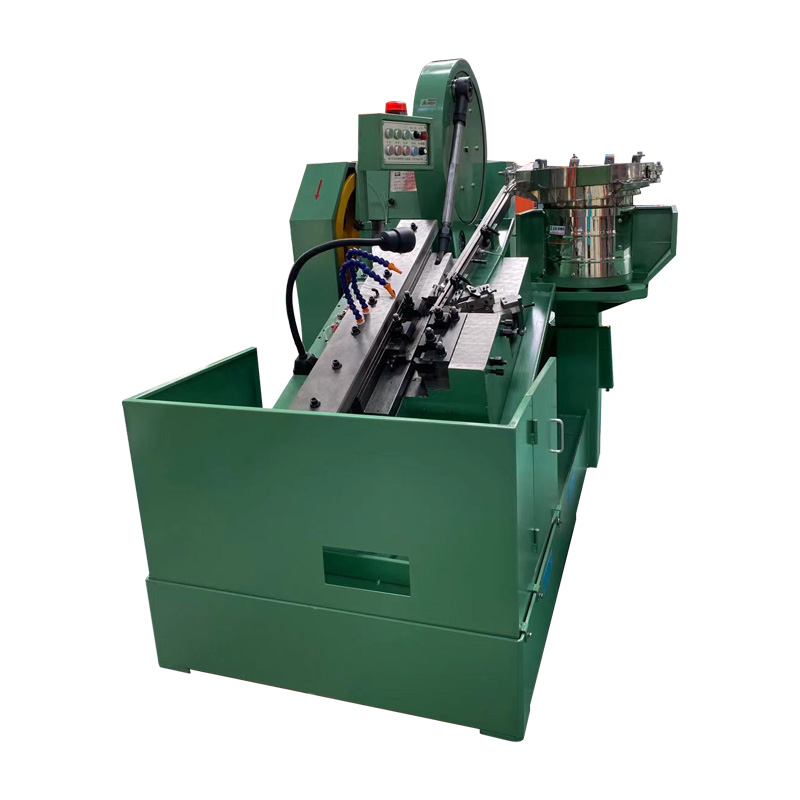

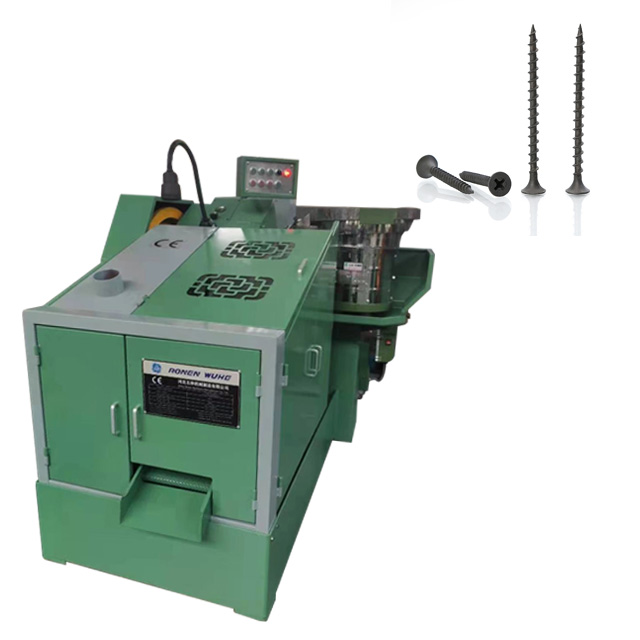

Self-tapping Screw Part Threading Machine by RONEN. With max. speed is about 300pcs/min. The engineers in charge has more than 20 years experience in design and product.

Finished products:


Product Function Display Video

Self-tapping Screw Part Threading Machine video.



Packing And Delivery

Self-tapping Screw Part Threading Machine packing / shipping.


Certifications

Self-tapping Screw Part Threading Machine :certificates


FAQ

Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.

Q:Do you have CE certification?
A: Yes, we have CE certification.

Q: If it is beyond the warranty period, can we check the technical problems with you?
A: Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.

Q:What can you buy from us?
A:Cold heading machine,cold forging machine,bolts nuts machine,screws machine,threading machine,etc.

Q: Do you provide any training to ensure that our users can operate the Self-tapping Screw Part Threading Machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
