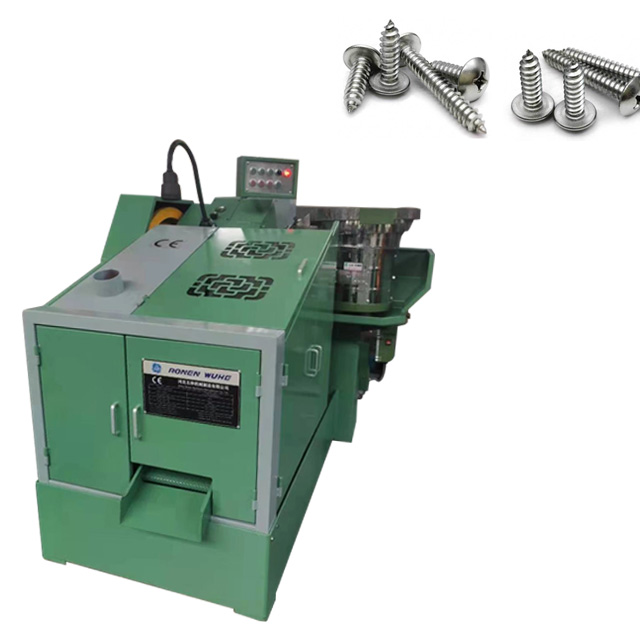

Drilling Screw Threading Machine

Drilling Screw Threading Machine by Ronen® has the strict assembly and inspection requirements. Ronen® is the top manufacturer in China of Fasteners Making Machines.

Send Inquiry

Product Description

Ronen® has the high level in machine production and running. All Ronen® machines in standard price at home and abroad will be your best helper in Fasteners Industry.


Drilling Screw Threading Machine features:

1.Perfect design, easy operation.

2.Single rail skid way design makes the machine runs at high speed, and the production efficiency is also high.

3.Major installation kit of our machines are made from high-quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is endurable with long time preciseness.

4.Our machines adopt the forced oil feeding system, to make sure all components of the machine run in films of oil condition, and the machine could be durable for a long time.


Drilling Screw Threading Machine Parameter (Specification)

Model

3H30A/B

4H45A/B

4H55A/B

6H55A/B

6H70B

6H105B

6H40BL

8H80B

8H105B

Diameter Range

(mm)

2-3.5

2.5-4

3-5

4-6

4-6

4-8

4-8

5-8

5-10

Blank Length Max (mm)

30

45

55

50

70/85

105/125

40

80

105/125

Max Thread Length (mm)

30

40

50

45

70

100

40

75

100

Capacity

(pcs/min)

230-270

180-230

160-200

120-160

120-160

120-140

60

90-120

90-120

Main Motor(KW)

1.5

2.2

3

4

5.5

5.5

5.5

7.5

7.5

Height Of Die Pocket (mm)

25*30*70/80

25*45*76/90

25*55*85/100

25*50*110/125

25*70*110/125

25*105*110/125

40*40*235/260

30*80*150/170

30*105*150/170

Oil Motor(KW)

0.18

0.18

0.18

0.18

0.18

0.18

0.18

0.37

0.37

Feed Motor(KW)

0.37

0.4

0.5

0.37

0.6

0.6

0.5

0.6

0.6

Packing Volume (cm)

150*91*140

170*125*150

172*130*150

185*125*150

195*145*160

200*160*160

234*140*160

245*150*160

244*170*160

NW (KG)

570

850

1170

1400

1500

1700

2500

3100

3200


Model

8H150B

10H105B

12H150B

12TH150B

14H105B

16H150B/C

20H150B/C

24H150C

Diameter Range

(mm)

5-10

6-10

8-14

8-14

8-14

10-18

16-22

20-25

Blank Length Max (mm)

150/200

105/125

150/200

150/200

105

150/250

150/250

150/250

Max Thread Length (mm)

150

100

150

150

100

150

150

150

Capacity

(pcs/min)

90-110

90-110

75

75

75

45-50

35-45

42

Main Motor(KW)

11

11

15

15

15

22

30

37

Height Of Die Pocket (mm)

30*150*150/170

30*105*150/170

40*150*190/210

40*150*190/210

40*150*190/210

40*150*235/260

50*150*285/310

50*150*380/420

Oil Motor

(KW)

0.37

0.37

0.37

0.37

0.37

0.36

0.36

0.36

Feed Motor

(KW)

0.8

0.8

0.8

0.8

0.8

1

2

4

Packing Volume (cm)

245*190*170

250*160*170

315*195*170

304*200*185

315*195*170

363*215*200+
160*160*190

410*215*200+
160*160*190

420*225*224+
160*160*190

NW (KG)

3300

3500

4400

5200

4600

12300

14700

19000

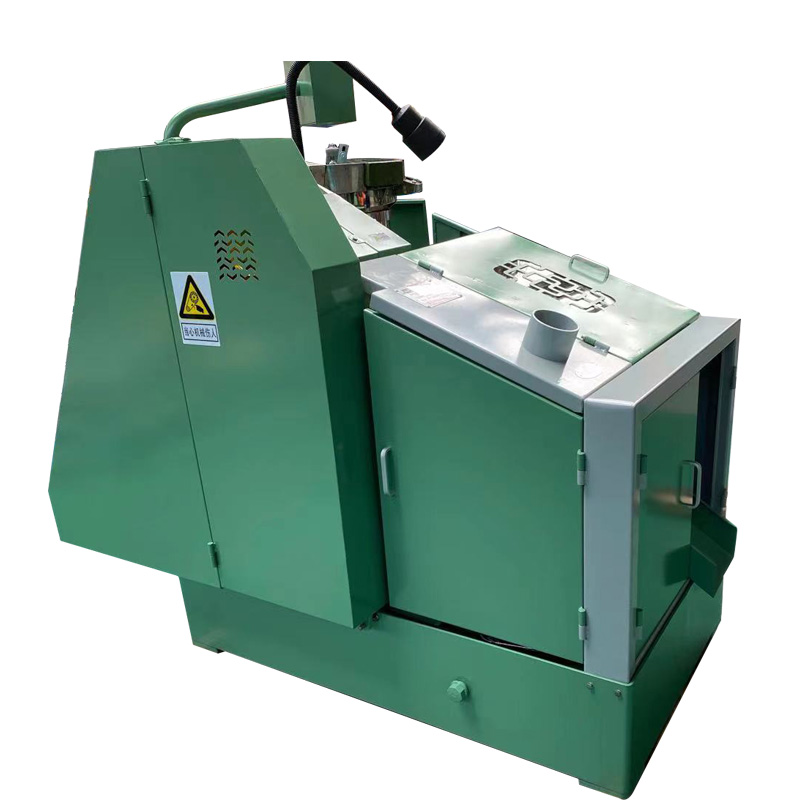

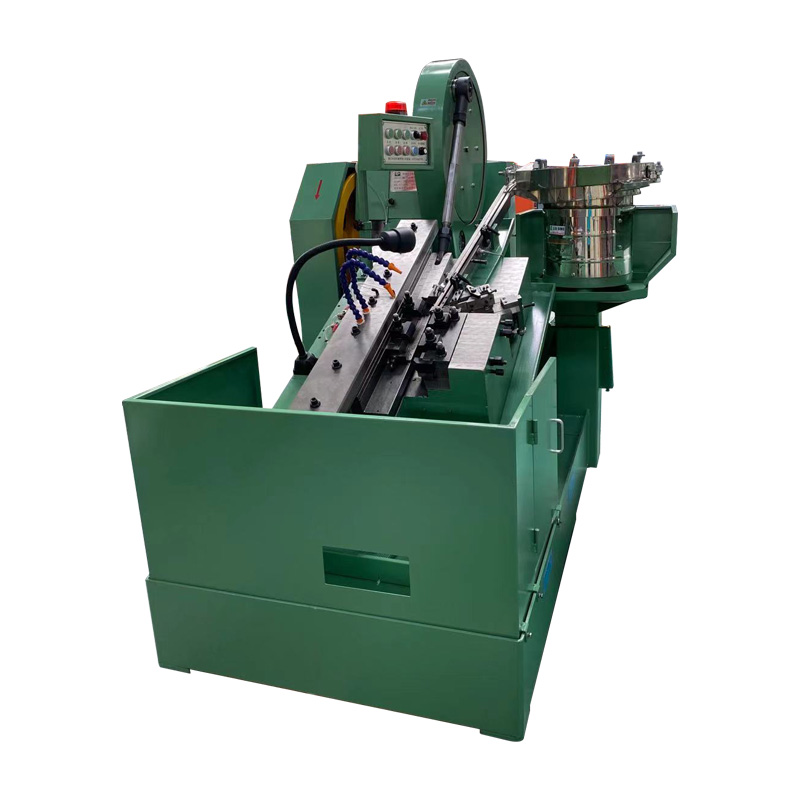

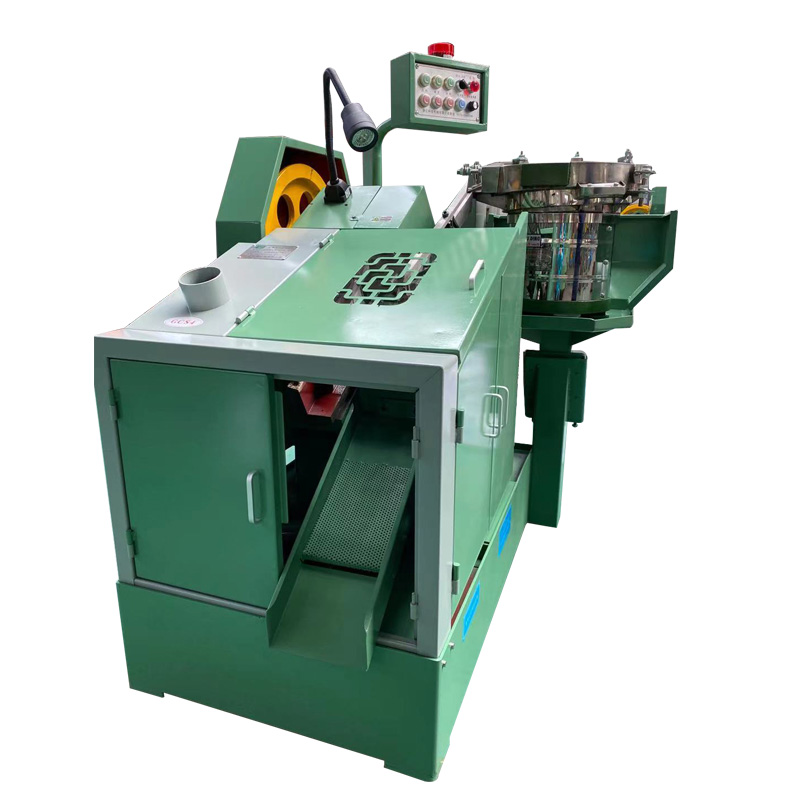

Machine Details And Finished Products Display

Drilling Screw Threading Machine by RONEN. Max. speed is about 300pcs/min in stable running. All RONEN Threading Machines has the engineers in charge more than 20 years experience in design and product. Special design and strict assemble, making the RONEN machines in good using and long life time.

Finished products:


Product Function Display Video

Drilling Screw Threading Machine working video.



Packing And Delivery

Drilling Screw Threading Machine packing and shipping.


Certifications

Certificates for Drilling Screw Threading Machine.


FAQ

Q:Do you provide custom services?

A:Yes,we could customize the machine according to your samples or drawings.


Q: What are your payment terms?

A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.


Q: Where is your factory?

A: Our manufacturing workshop is located in Hebei Province in China.


Q:Do you provide video outgoing-inspection?

A:Yes,we provide the video of outgoing-inspection.


Q: If it is beyond the warranty period, can we check the technical problems with you?

A: Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
