With years of experience in production Fastener machines, RONEN can supply a wide range of Screw Threading Machines. High quality Stable Working Screw Part Threading Machine can meet many applications, if you need, please get our online timely service about Stable Working Screw Part Threading Machine. In addition to the product list below, you can also customize your own unique Screw Threading Machine according to your specific needs.
Stable Working Screw Part Threading Machine characteristic:
1. The machine has the advantages of rapid speed and good stability, the minute capacity can be up to about 300pcs/min, it is advanced thread machine with higher speed in the current market, which is suitable for mass production in the large scope thread factory.
2.Single rail skid way design makes the machine runs at high speed, and the production efficiency is also high.
Stable Working Screw Part Threading Machine Parameter (Specification)
|
Model |
3H30A/B |
4H45A/B |
4H55A/B |
6H55A/B |
6H70B |
6H105B |
6H40BL |
8H80B |
8H105B |
|
Diameter Range (mm) |
2-3.5 |
2.5-4 |
3-5 |
4-6 |
4-6 |
4-8 |
4-8 |
5-8 |
5-10 |
|
Blank Length Max (mm) |
30 |
45 |
55 |
50 |
70/85 |
105/125 |
40 |
80 |
105/125 |
|
Max Thread Length (mm) |
30 |
40 |
50 |
45 |
70 |
100 |
40 |
75 |
100 |
|
Capacity (pcs/min) |
230-270 |
180-230 |
160-200 |
120-160 |
120-160 |
120-140 |
60 |
90-120 |
90-120 |
|
Main Motor（KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Height Of Die Pocket (mm) |
25*30*70/80 |
25*45*76/90 |
25*55*85/100 |
25*50*110/125 |
25*70*110/125 |
25*105*110/125 |
40*40*235/260 |
30*80*150/170 |
30*105*150/170 |
|
Oil Motor(KW) |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.37 |
0.37 |
|
Feed Motor(KW) |
0.37 |
0.4 |
0.5 |
0.37 |
0.6 |
0.6 |
0.5 |
0.6 |
0.6 |
|
Packing Volume (cm) |
150*91*140 |
170*125*150 |
172*130*150 |
185*125*150 |
195*145*160 |
200*160*160 |
234*140*160 |
245*150*160 |
244*170*160 |
|
NW (KG) |
570 |
850 |
1170 |
1400 |
1500 |
1700 |
2500 |
3100 |
3200 |
|
Model |
8H150B |
10H105B |
12H150B |
12TH150B |
14H105B |
16H150B/C |
20H150B/C |
24H150C |
|
Diameter Range (mm) |
5-10 |
6-10 |
8-14 |
8-14 |
8-14 |
10-18 |
16-22 |
20-25 |
|
Blank Length Max (mm) |
150/200 |
105/125 |
150/200 |
150/200 |
105 |
150/250 |
150/250 |
150/250 |
|
Max Thread Length (mm) |
150 |
100 |
150 |
150 |
100 |
150 |
150 |
150 |
|
Capacity (pcs/min) |
90-110 |
90-110 |
75 |
75 |
75 |
45-50 |
35-45 |
42 |
|
Main Motor（KW) |
11 |
11 |
15 |
15 |
15 |
22 |
30 |
37 |
|
Height Of Die Pocket (mm) |
30*150*150/170 |
30*105*150/170 |
40*150*190/210 |
40*150*190/210 |
40*150*190/210 |
40*150*235/260 |
50*150*285/310 |
50*150*380/420 |
|
Oil Motor (KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.36 |
0.36 |
0.36 |
|
Feed Motor (KW) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1 |
2 |
4 |
|
Packing Volume (cm) |
245*190*170 |
250*160*170 |
315*195*170 |
304*200*185 |
315*195*170 |
363*215*200+ |
410*215*200+ |
420*225*224+ |
|
NW (KG) |
3300 |
3500 |
4400 |
5200 |
4600 |
12300 |
14700 |
19000 |
Machine Details And Finished Products Display

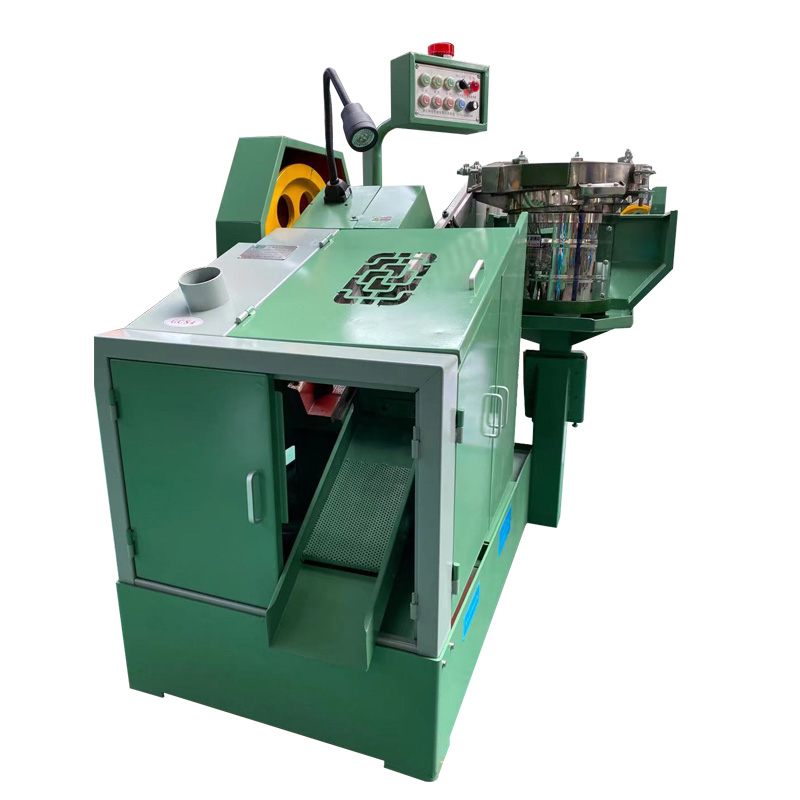

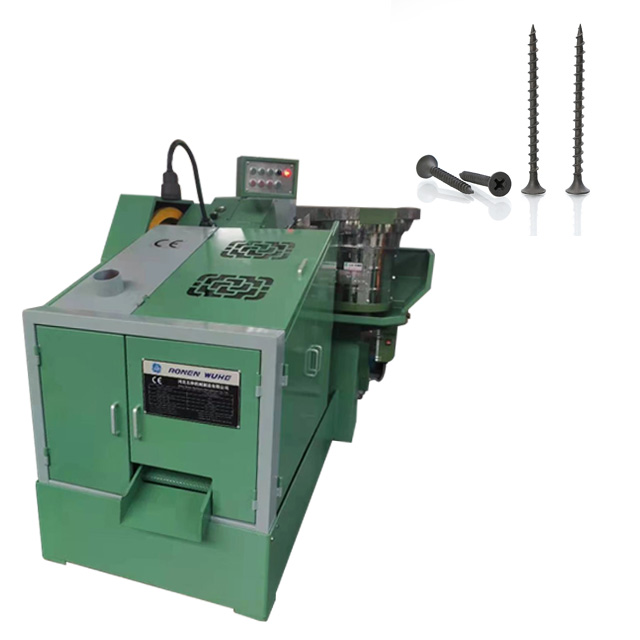

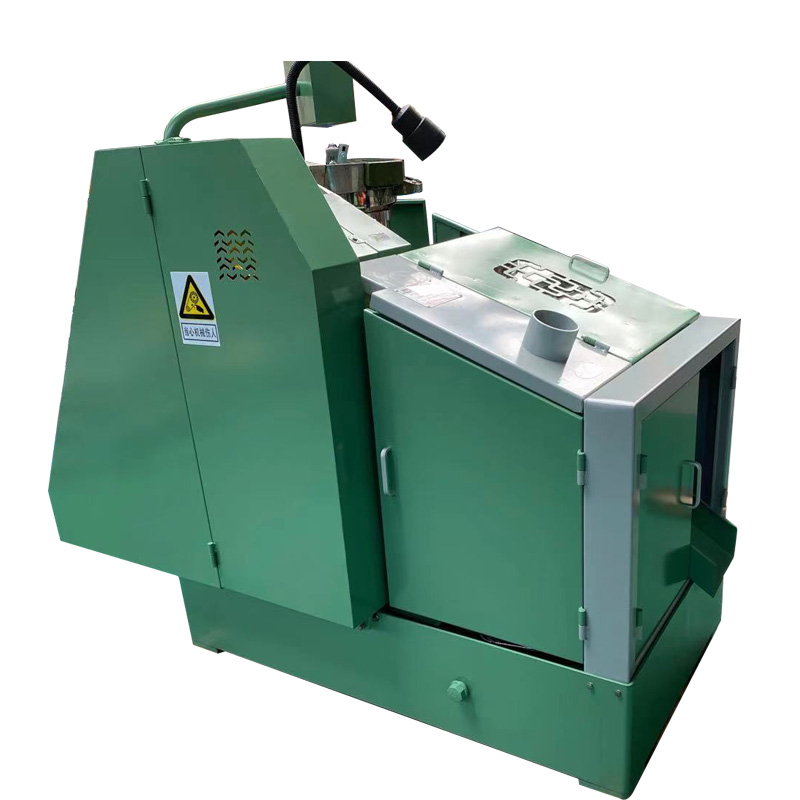

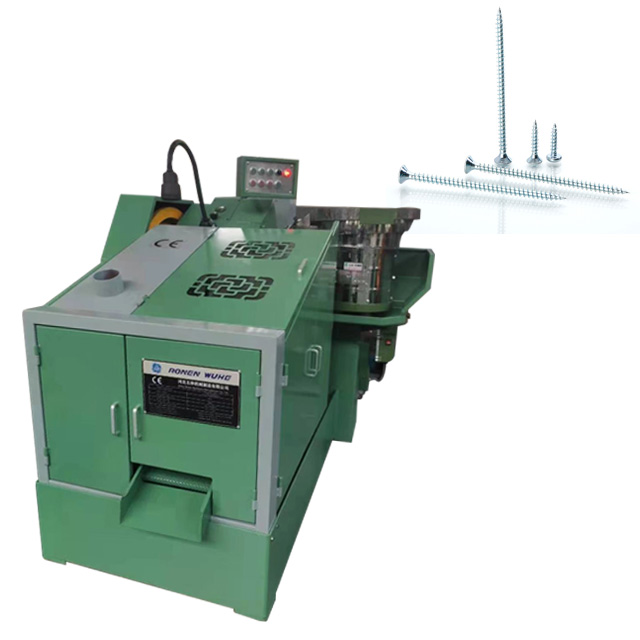

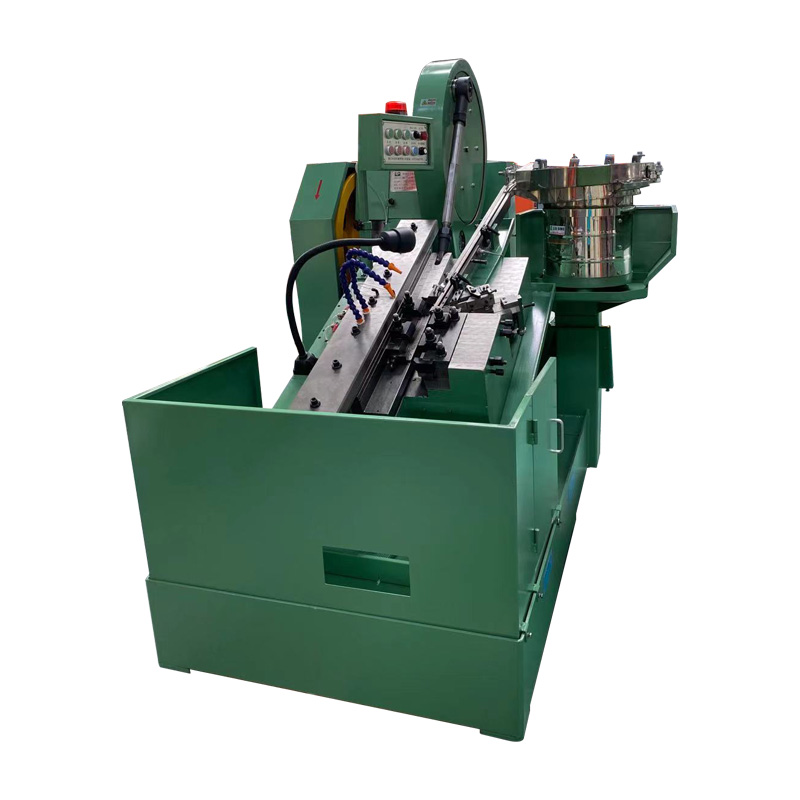

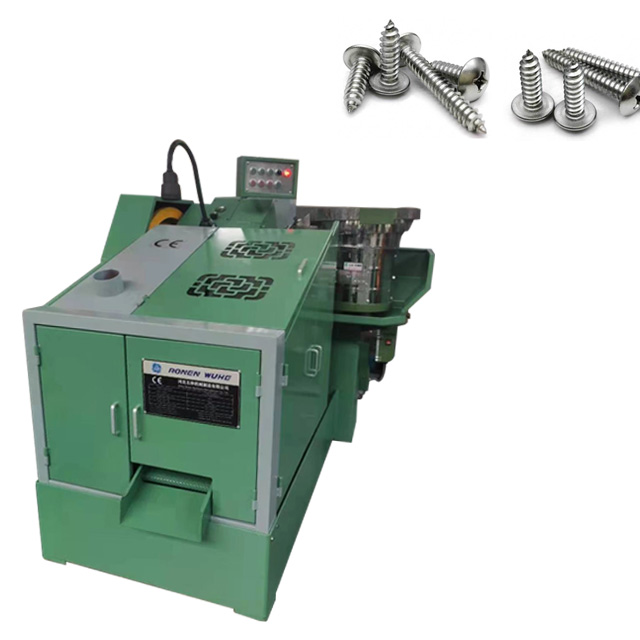

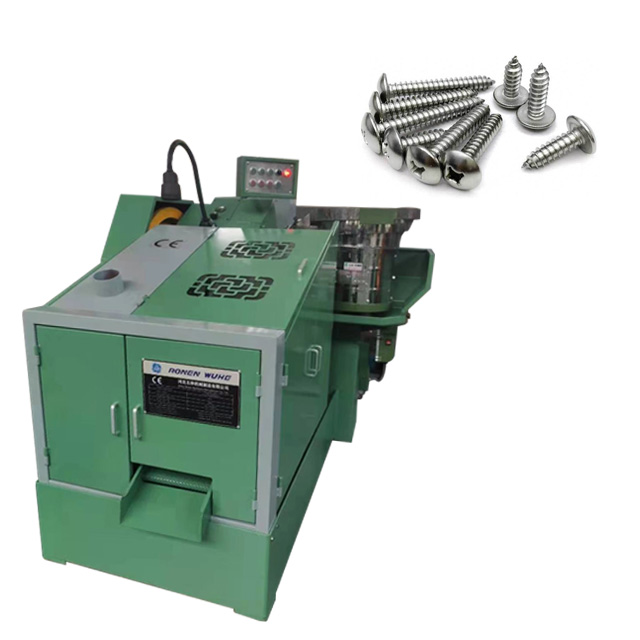

Stable Working Screw Part Threading Machine in RONEN workshop.
Finished products:
Product Function Display Video
Stable Working Screw Part Threading Machine working video.
Packing And Delivery
Stable Working Screw Part Threading Machine is packing and shipping.
Certifications
Certificates for Stable Working Screw Part Threading Machine.
FAQ
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q: Do you provide any training to ensure that our users can operate the machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
