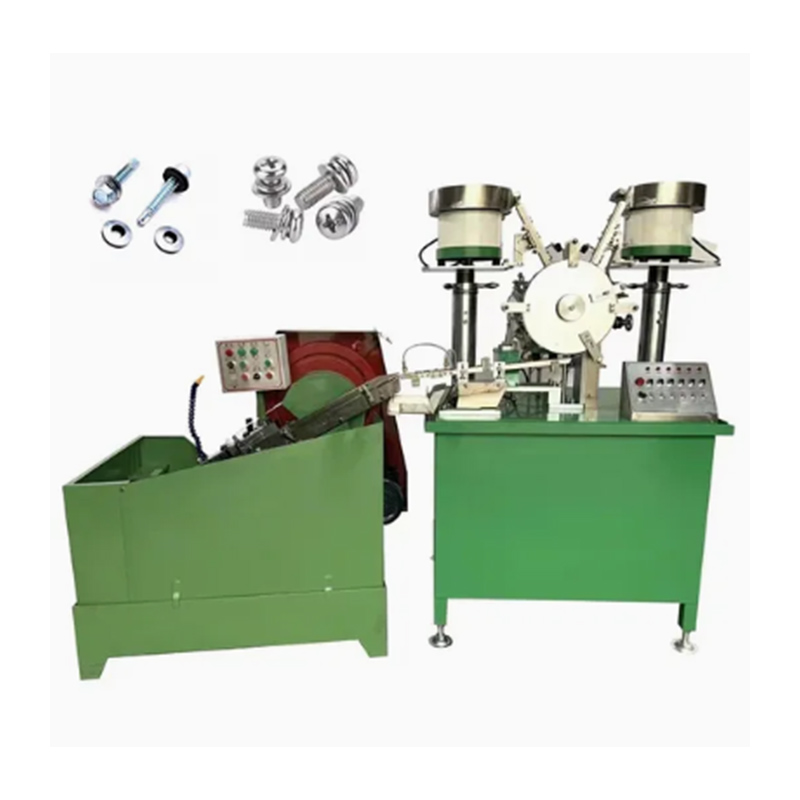

The Self Drilling Screw Washer Assembly Machine, from manufacturer Ronen®, can automatically attach washers to self-drilling screws. Just insert screws and washers into the feeder separately, set dimensions (as guided by manufacturer Ronen®), and the machine will press washers onto screw heads.
The Self Drilling Screw Washer Assembly Machine automatically secures screws and washers together. It comes with a built-in drill bit—you won’t need to do any drilling at all. The washers are locked into place, preventing loosening, and the assembly process is complete.

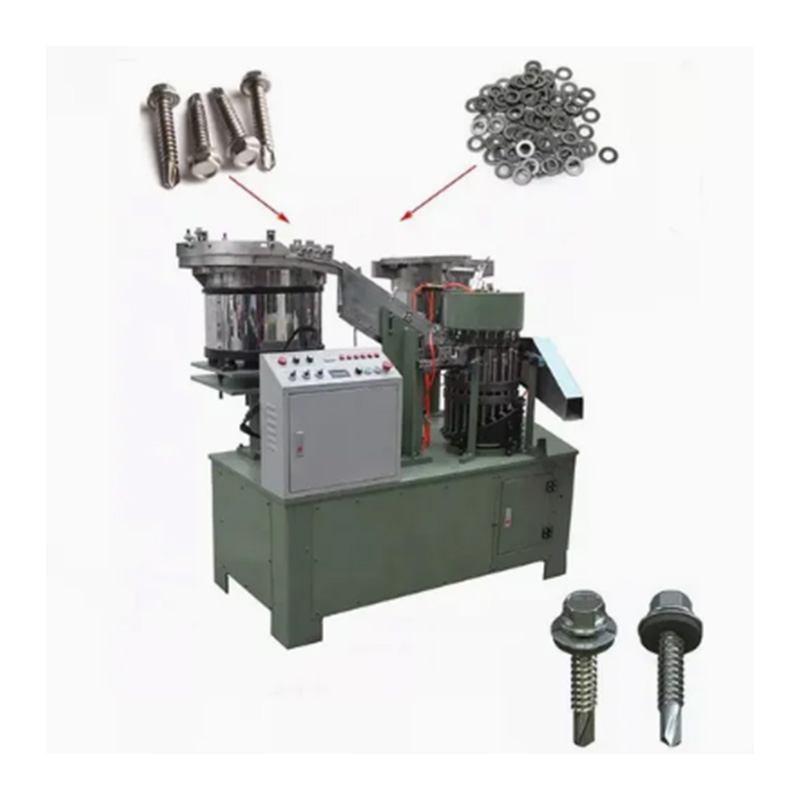

The Self Drilling Screw Washer Assembly Machine has fully automatic operation capabilities and can complete the core processes of precise screw feeding, precise washer feeding, and positioning the washer under the screw head in sequence, without the need for human intervention in key assembly steps. The screws and washers are fed into two hoppers respectively, and then sorted and aligned by the machine, and finally the washers are accurately put on the screw shafts. Finally, the machine delivers them neatly.
The Machine eliminates mistakes. When manually assembling screws and washers, abnormal phenomena caused by human errors mainly manifest as: washers not installed and washer installation angle deviation. Machines are able to perform tasks repeatedly in a highly standardized manner, a characteristic that directly translates into fewer rejects and significantly reduced resource waste.
The Machine is compatible with a wide variety of washers and self-drilling screws. Whether flat washers, spring washers, or washers with anti-slip grooves, as long as the size matches the screw, simply adjust the washer feed track to use it. Self-drilling screws, whether round or countersunk, can also be smoothly fed and installed as long as the shank diameter ranges from M3 to M10.
| Model | Speed(pcs/min) | Motor Power(kw) | Oil Power(kw) | Size(L*W*H/mm) | Weight(kg) |
| M5 | 200 |
1.5-1.6 |
0.09 |
1350*1000*1500 |
1100 |
| M6 | 200 | ||||
| M8 | 185 | ||||
| M10 | 170 |
1.5-1.8 |
0.09 |
1450*1150*1600 |
1400 |
| M12 | 150 | ||||
| M14 | 100 |
2.2-8 |
0.09 |
1450*1200*1700 |
1500 |
| M16 | 100 | ||||
| M18 | 80 |
3-8 |
0.09 |
1600*1280*1800 |
1850 |
| M20 | 80 | ||||
| M22 | 80 |

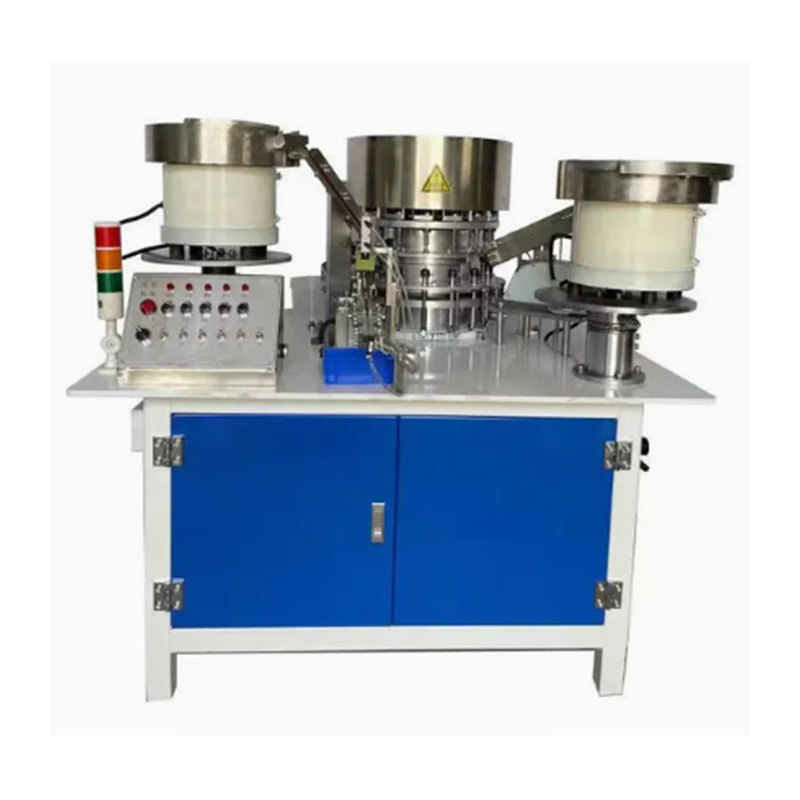

The feature of the Self Drilling Screw Washer Assembly Machine is the separate feeding of two feed bins and controllable fitting force. Screws and washers are fed by two independent feed bins, thus not getting mixed together. The feeding tracks are also separate, allowing for independent speed adjustment to ensure precise alignment of both. The force during the fitting of the washers can be adjusted.
