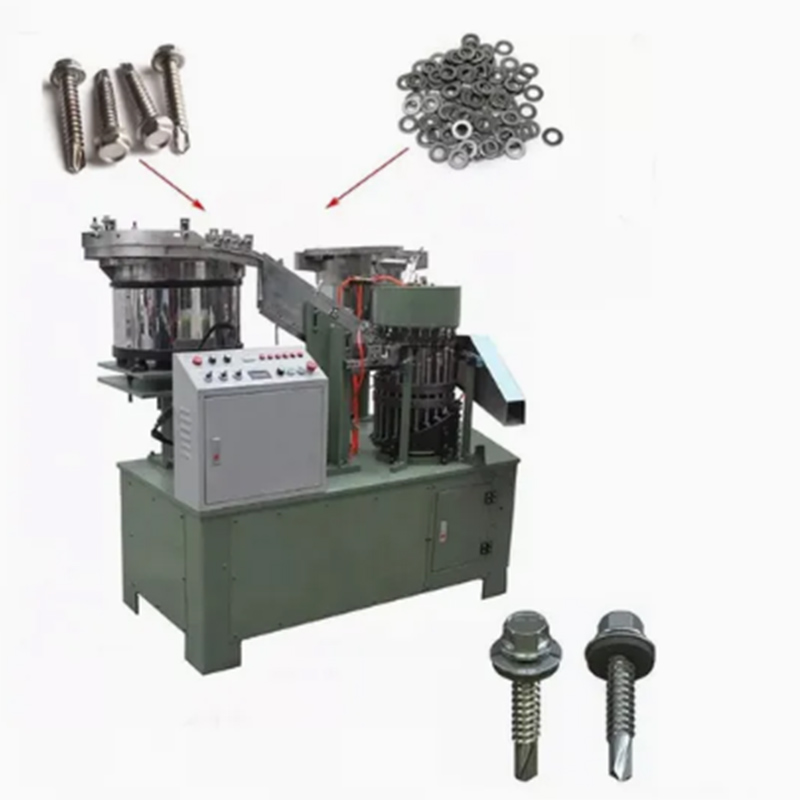

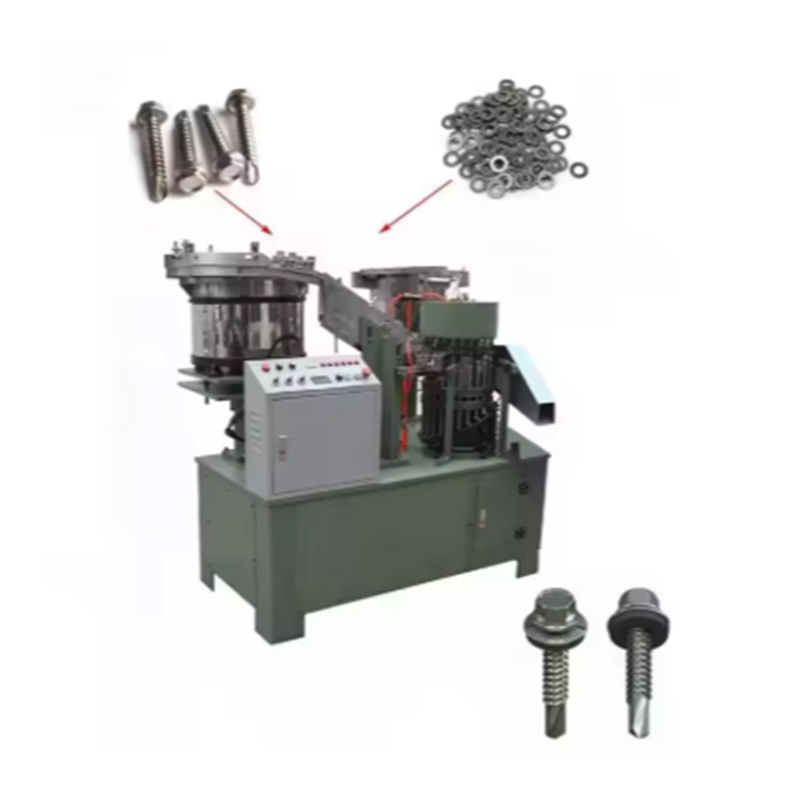

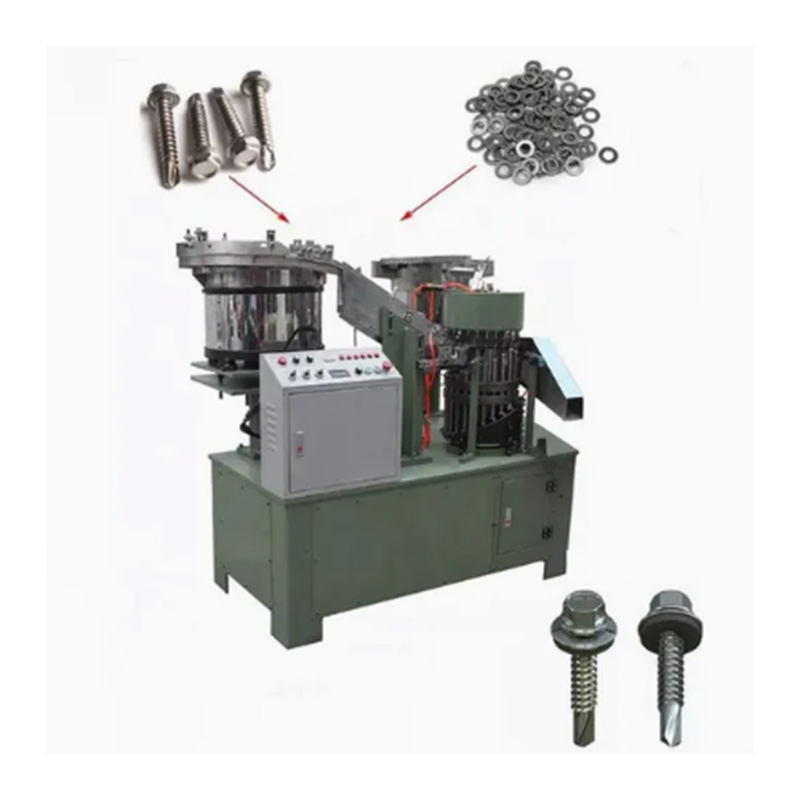

The Ronen® Carbon Steel Screw Washer Assembly Machine, perfect for factory use, installs washers onto carbon steel screws without additional materials. Simply place them into the two feeders separately, and the machine will firmly press washers onto screw heads.
The Carbon Steel Screw Washer Assembly Machine receives screws and washers from separate bins. It can automatically achieve precise alignment between the screw and the washer, and stably press the washer into the specified position of the screw. This device is specifically designed to handle the hardness of carbon steel parts and will not wear out quickly.
You can adjust the Machine according to different screw lengths. It is applicable to various types of carbon steel screws, ranging from short mechanical screws to longer structural screws. You can switch between different tasks, thus saving your time.
The Carbon Steel Screw Washer Assembly Machine can handle various types of carbon steel screws and washers. You can handle flat washers, locking washers or gasket washers by changing the feeding tool. The equipment uses vibrating bowls to accurately position the parts. The tracks guide the carbon steel screws and washers to the assembly points. Then, the mechanical arm uniformly pushes the washers onto the threads each time.
The inspection system in the Machine will check for the absence of washers. If a washer is missing, it will transfer the screw to the scrap bin. You need to clean the feeder regularly. The carbon steel components will produce dust, so the tracks need to be cleaned occasionally. Applying oil to the moving parts weekly can ensure the smooth operation of the machine.
The Carbon Steel Screw Washer Assembly Machine is a device specifically designed for assembling carbon steel parts. Carbon steel screws and washers are harder than aluminum ones. When manually fitting them, they are prone to causing discomfort on the hands. The machine's fixtures and tracks are designed according to the hardness of carbon steel, ensuring smooth feeding without any jamming. Each washer is precisely in contact with the head of the screw, without affecting the subsequent packaging or usage.
| Model | Speed(pcs/min) | Motor Power(kw) | Oil Power(kw) | Size(L*W*H/mm) | Weight(kg) |
| M5 | 200 |
1.5-1.6 |
0.09 |
1350*1000*1500 |
1100 |
| M6 | 200 | ||||
| M8 | 185 | ||||
| M10 | 170 |
1.5-1.8 |
0.09 |
1450*1150*1600 |
1400 |
| M12 | 150 | ||||
| M14 | 100 |
2.2-8 |
0.09 |
1450*1200*1700 |
1500 |
| M16 | 100 | ||||
| M18 | 80 |
3-8 |
0.09 |
1600*1280*1800 |
1850 |
| M20 | 80 | ||||
| M22 | 80 |
