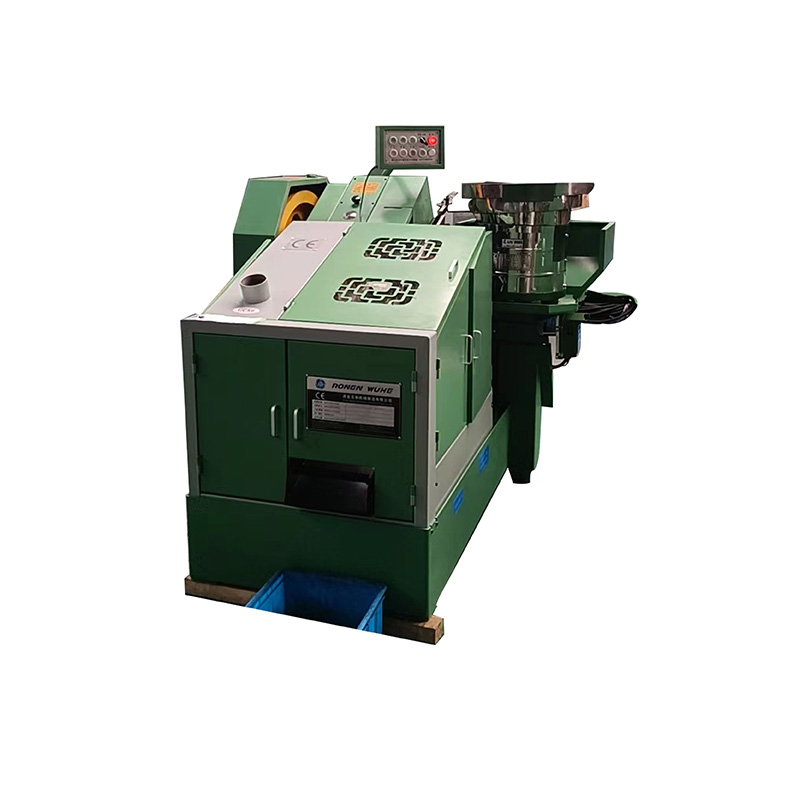

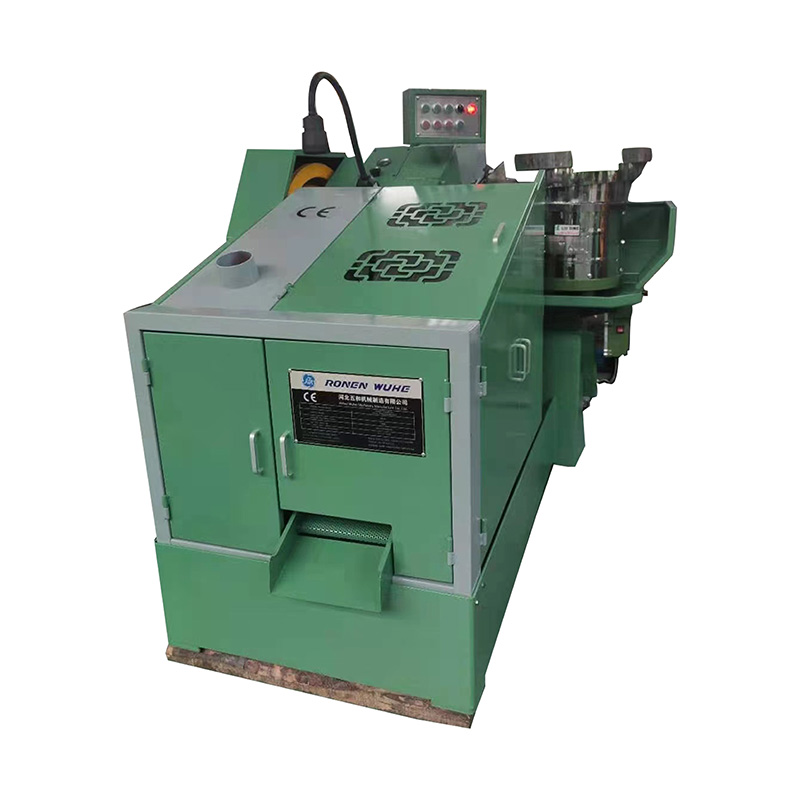

The Ronen® Round Rod Threading Machine is manufactured by leading manufacturers to cut the threads of round rods. It can be used together with common pole materials such as steel and aluminum, without the need for meticulous settings. It comes with some common molds, so you can start using it immediately.
The Round Rod Threading Machine is specifically designed for processing external threads on cylindrical parts. By clamping one end of the cylindrical rod onto the machine's chuck, and setting the length and pitch of the thread, the machine will cut the thread on the surface of the cylindrical rod.
The Round Rod Threading Machine is used to cut or roll external threads at the ends of circular metal rods or metal bars. It is designed to handle cylindrical materials, firmly clamping the material, and then using a rotating mold to form the threads. This machine can automatically create the external thread section at the ends of components such as studs, threaded rods, or shafts, facilitating assembly.
The Machine requires straight cylindrical rods as raw materials.
In single-piece processing scenarios, the bar material can be fed through a material storage device or racking system. Whether operated manually or automatically, this system provides stable support for continuous production. To ensure processing accuracy, the equipment uses a dual combination of guide rails and clamps to achieve precise centering of the bar material. This critical step effectively ensures that the processed thread is strictly concentric with the diameter of the bar material itself. This concentricity is the core prerequisite for the correct installation of the nut and ensures the stability of the connection.
The Round Rod Threading Machine typically uses self-opening die heads. This die head consists of multiple cutting dies, which close around the fixed rod. Then, the entire die head assembly rotates and moves along the length of the rod to cut the thread profile. Once the desired length is reached, the dies automatically open, allowing the die head to return to the starting position without needing to reverse.
| Modle | X065 | X0685 | X06127 | X0860 | X08100 |
| Main Motor KW(4HP) | 4 | 4 | 5.5 | 7.5 | 7.5 |
| Dismeter(mm) | Max.6 | Max.6 |
Max.6 |
Max.8 |
Max.8 |
| Length(mm) |
Max.50 |
Max.85 |
Max.127 |
Max.60 |
Max.100 |
| MainDie(mm) |
Φ45*108 |
Φ45*108 |
Φ45*150 |
Φ60*128 |
Φ60*128 |
| 1stPunch(mm) |
Φ36*94 |
Φ36*94 |
Φ36*94 |
Φ38*107 |
Φ38*107 |
| 2rdPunch(mm) |
Φ36*60 |
Φ36*60 |
Φ36*60 |
Φ38*107 |
Φ38*107 |
| Cutter(mm) | 10*25 | 10*25 | 10*25 | 12*28 | 12*28 |
| Speed(pcs/min.) | 130 | 80 | 70 | 60-100 | 60-80 |
| Weight(kg) | 2200 | 2200 | 2500 | 4000 | 4200 |
The selling point of the Round Rod Threading Machine is very practical. It specializes in processing round rods and ensures that the rods do not deviate during the manufacturing process. Its chuck is made in the shape of a round rod, which can firmly hold the rod and cut the threads straight. It's also convenient to change the specifications. Adjust the tightness of the chuck and the position of the tool.
