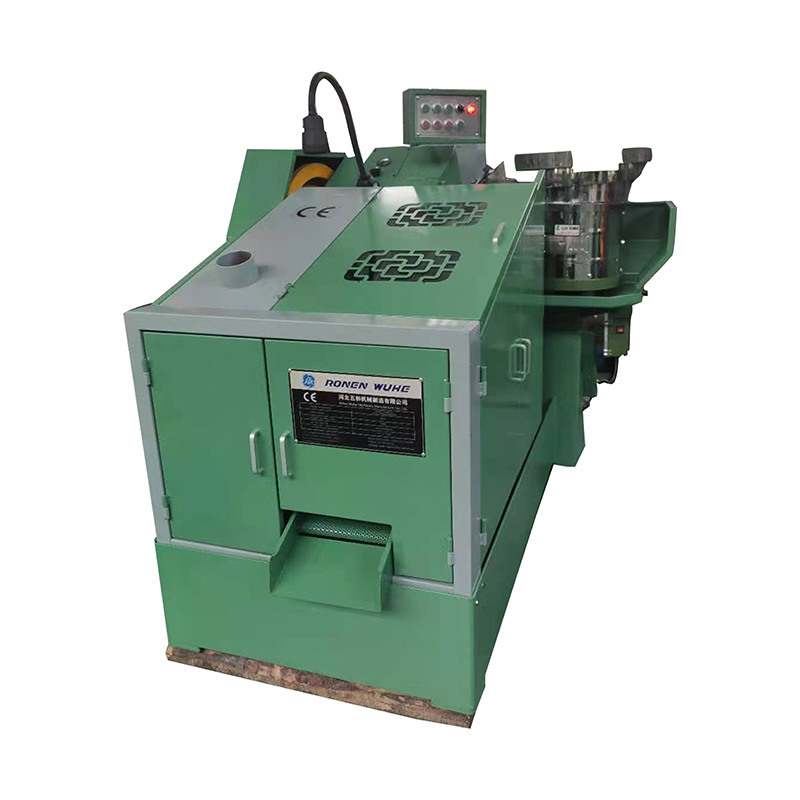

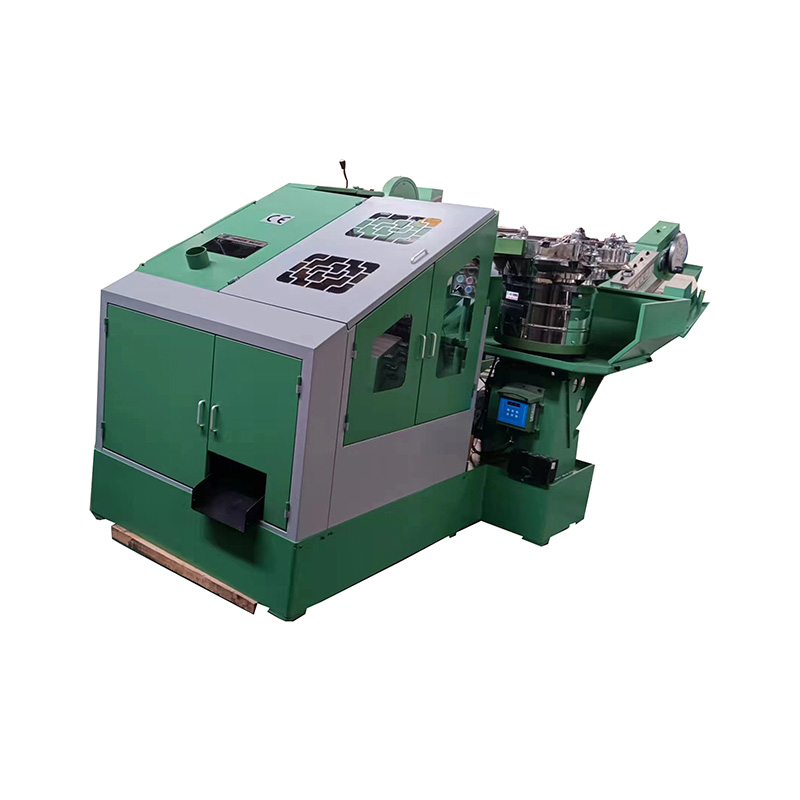

The Ronen® electric tapping machine is powered by electricity and does not require manual rotation. It can smoothly drill holes on metal parts. It can easily adjust the speed to suit different materials. It is equipped with several commonly used tap sizes, allowing you to get started immediately.
The Electric Tapping Machine is specifically designed to create threads on metals, plastics and other materials. The motor provides the power, which drives the tap to rotate. The tap is aligned with the pre-drilled hole and slowly moves down, thereby creating threads on the hole wall.
The Electric Tapping Machine utilizes the power of an electric motor to cut internal threads (truing holes) into pre-drilled holes. It is equipped with a cutting tool called a tap, which rotates and is pushed downward into the hole. The main function of this machine is tapping, and it is faster than using a wrench for manual tapping, especially suitable for larger holes or mass production.
The Electric Tapping Machine uses an electric motor as its power source. This motor drives the gearbox or belt wheel system, reducing the high rotational speed of the motor to a more suitable speed and higher torque to achieve efficient cutting. The output spindle for fixing the tap receives this controlled rotation and the downward force required for thread processing.
The machine is equipped with a spindle nose for securely holding taps. Common mechanisms include Morse taper sleeves, spring chuck heads, or tap adapters (such as floating chucks). The drive system must transmit torque to rotate the tap while allowing for slight axial floatation or compensation to prevent breakage when the tap's pitch does not perfectly match the feed rate of the machine.
| Model | Max.dia.mm | Speed Pcs/min. | Motor HP | OilL | Sizes W*L*H/mm | Weight Kg |
| 13B M4-M6 | 18 | 50-80 | 1HP | 120 | 1050*1100*1450 | 660 |
| 19B M8-M16 | 22 | 40-60 | 2HP | 120 | 1050*1100*1450 | 760 |
| 24B M14-M16 | 33 | 20-50 | 3HP | 150 | 1300*1250*1600 | 1100 |
The Electric Tapping Machine is equipped with overload protection. If the tap gets stuck, the motor will automatically stop running, preventing the motor from overheating and the tap from breaking. The speed adjustment range is wide, ranging from several dozen revolutions to several hundred revolutions. It is very flexible and can handle different materials. It has a forward-reverse switch. After threading, just press the reverse button and the tap will automatically retract, eliminating the need for manual rotation.
