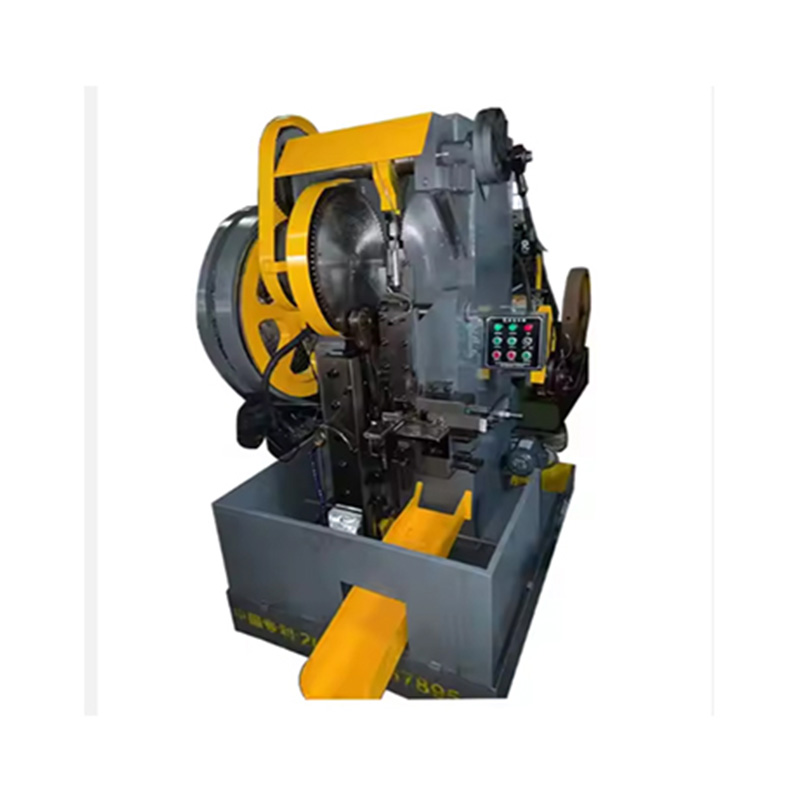

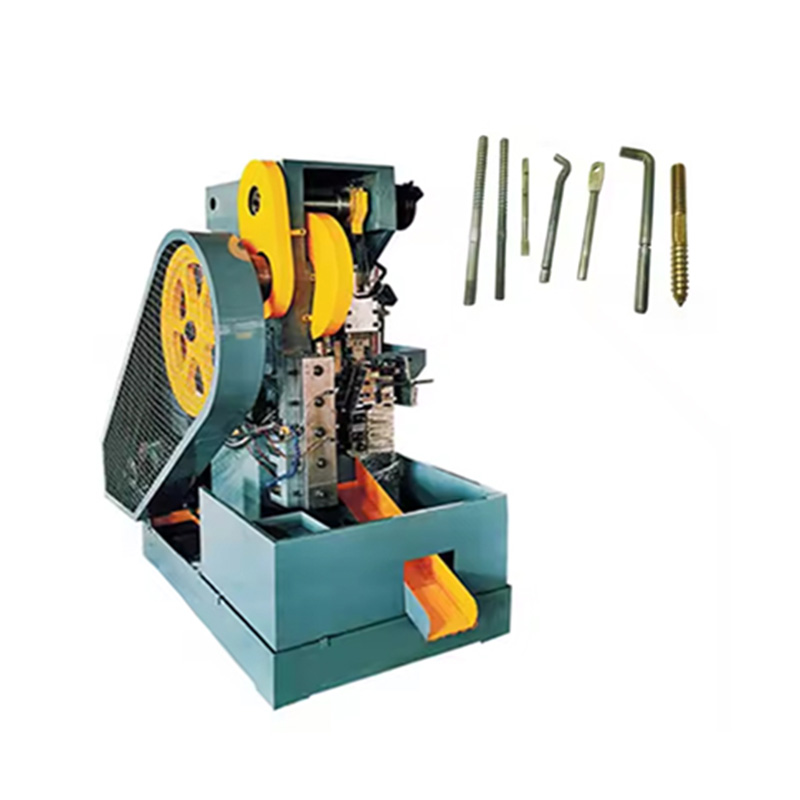

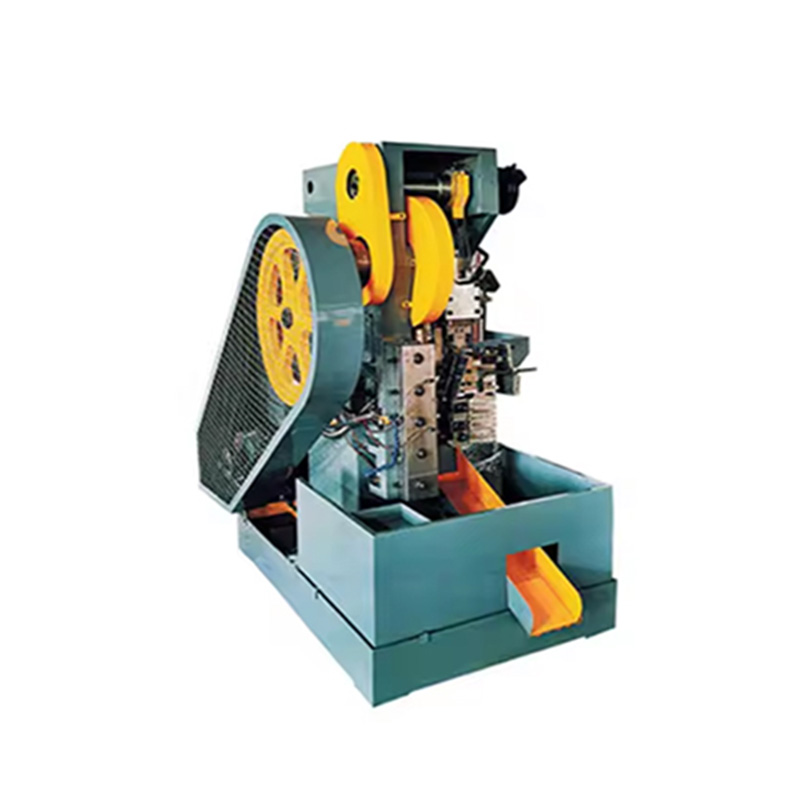

Ronen® Bolt Threading Machine is a highly efficient Wholesale Bolt Threading Machine capable of precisely processing a wide range of bolt specifications. Its stable performance ensures machining quality and minimizes errors, making it an ideal choice for machining applications.
Bolt threading machines operate on the principle of mechanical cutting, forming threads through the relative motion of the tool and the bolt blank. During this process, a cooling system simultaneously sprays cutting fluid to cool the tool and flush away chips, preventing any loss of precision.
The core components of the Bolt Threading Machine are made of high-strength alloy to ensure that they are not easily worn during long-term operation. They can accurately process threads that meet international standards and meet the processing needs of bolts of different specifications.
One of the major advantages of Bolt Tapping Machine lies in its energy conservation and environmental protection. The machine has low power consumption during operation, and the metal chips generated during the cutting operation can be centrally collected and processed with the help of a negative pressure collection device. This can minimize pollution to the environment and is in line with the green production standards followed by modern factories.
Bolt Threading Machines are widely used in automotive manufacturing, construction machinery, power equipment, rail transit, and other fields. Whether it's batch processing of automotive chassis bolts or producing high-strength bolts for large-scale construction machinery, they precisely meet the industry's stringent requirements for threaded connections.
| Model | Max.Thread Diameter(mm) | Max.Thread Length(mm) | Moving Dies Stationary Length(mm)(L*TH.*W) | Motor(KW) | Capacity(pcs/min) | Volume(L*W*H)(m) | Weight(Kg) | |
| M6-70 | 8 | 70 | 125*25*70 | 110*25*70 | 4 | 80-100 | 1.60*1.60*1.35 | 1300 |
| M8-80 | 10 | 80 | 170*30*80 | 150*30*130 | 5.5 | 80-100 | 1.74*1.36*1.20 | 1500 |
| M10-130 | 12 | 130 | 170*30*130 | 150*30*130 | 7.5 | 70-90 | 2.00*1.48*1.25 | 2000 |
| M12-160 | 14 | 160 | 210*40*160 | 190*40*200 | 11 | 40-50 | 2.45*1.80*1.45 | 2800 |
| M14-200 | 16 | 200 | 210*40*200 | 190*40*200 | 15 | 30-40 | 2.50*1.65*1.50 | 3500 |
| M16-200 | 18 | 200 | 210*45*200 | 190*45*200 | 15 | 30-40 | 2.75*2.10*1.65 | 4000 |
The notable features of bolt threading machines are its intelligent operation and easy maintenance. It is equipped with an intelligent touch screen that supports one-click start-up, parameter presetting, and self-diagnosis of faults, enabling even novices to quickly master the operation.
