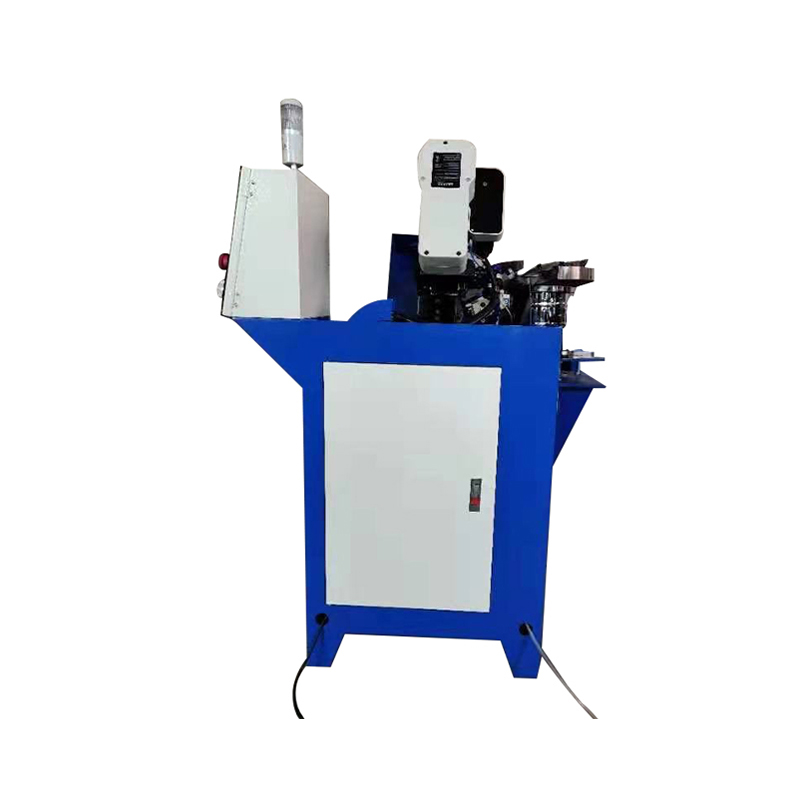

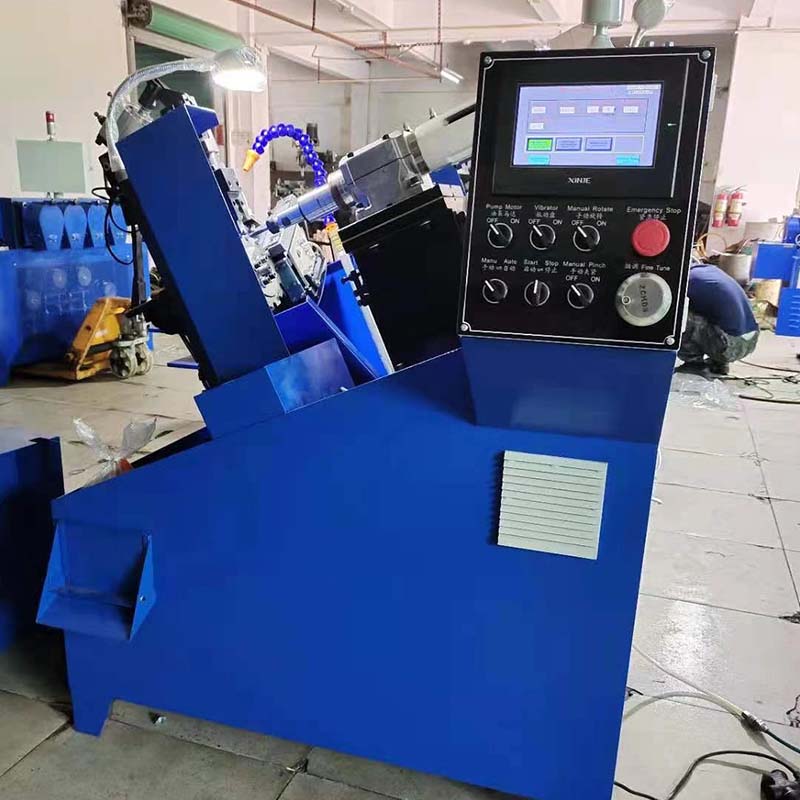

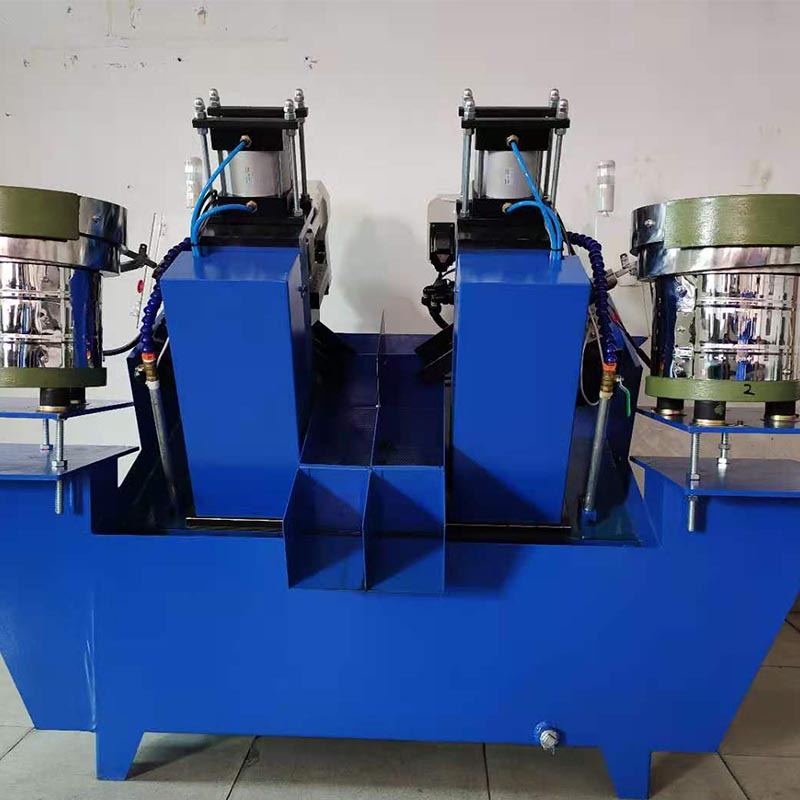

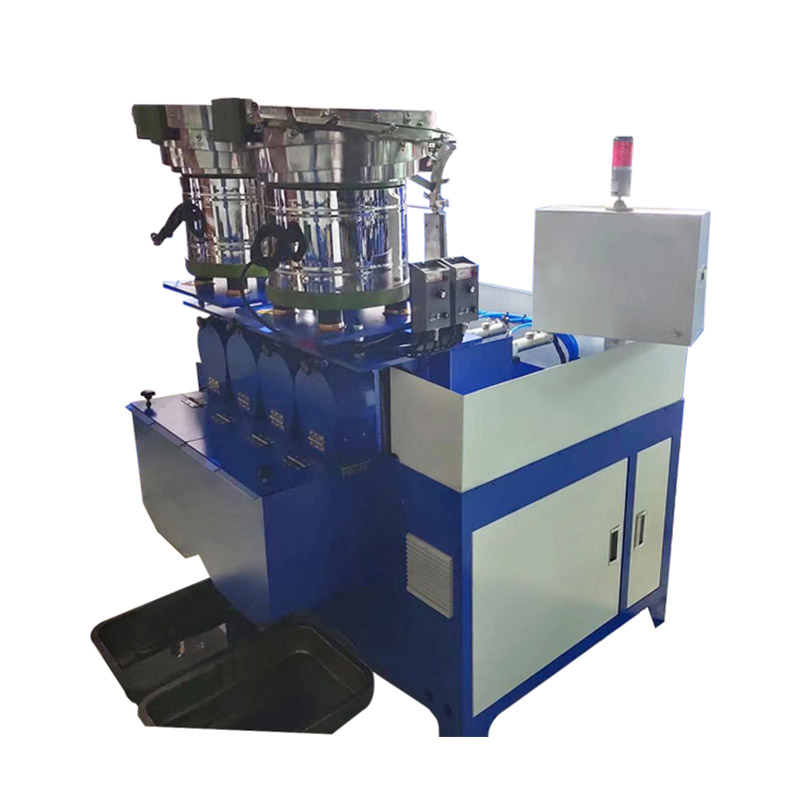

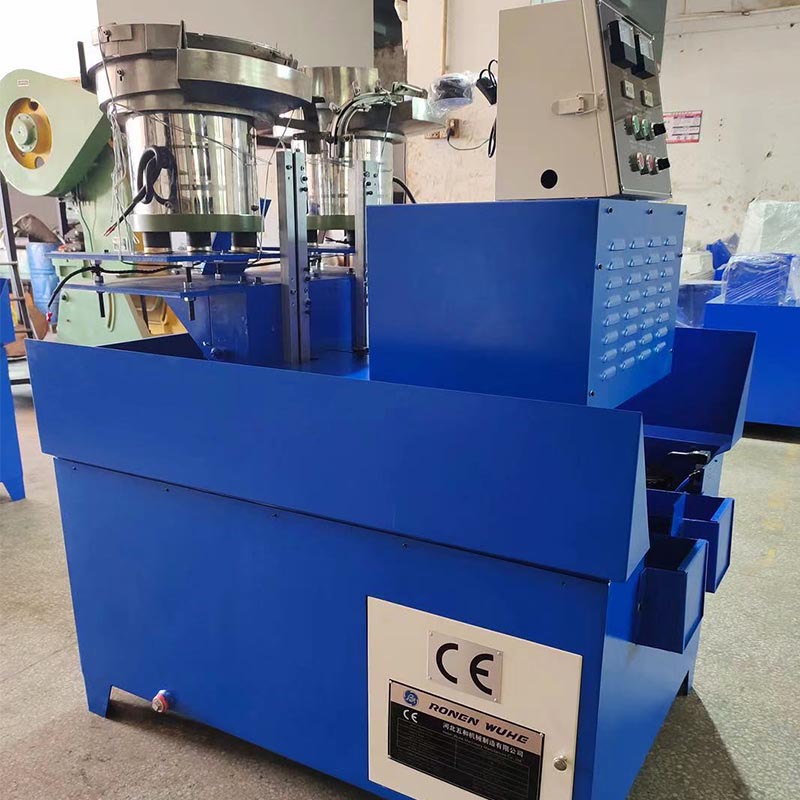

The Automatic Nut Tapping Machine from Ronen®—a seasoned manufacturer of industrial equipment—can handle special-shaped nuts. It has been programmed to handle unique sizes or custom designs. You only need to input the specifications once, and it can perfectly repeat the tapping process every time.
Automatic Nut Tapping Machine: This machine is specifically designed for processing internal threads on nuts of special specifications or irregular shapes. The feeding, positioning and tapping mechanisms of the machine are all designed according to specific nuts.
Automatic Nut Tapping Machine: Specifically designed for processing non-standard hexagonal or quadrangular-shaped nuts and other special geometric shapes. This includes wing-shaped nuts, dome-shaped nuts, or flanged nuts with flanges. The customized feed system can accurately position these shapes, and the dedicated fixtures can firmly fix them during the tapping process to prevent rotation or misalignment due to irregular shapes.
The Nut Tapping Machine is designed for nuts with incomplete thread penetration or extremely deep threads. It incorporates an accurate depth control mechanism, allowing the tapping process to stop precisely at the desired position. The chip removal system is crucial for preventing blockages in deep or blind holes.
The Automatic Nut Tapping Machine has modified the spindle drive and reverse logic. The spindle rotates counterclockwise to cut the thread, and then rotates clockwise to retract. The special tooling and programming ensure the correct left-handed thread formation in applications requiring safety of reverse threads.
The molds and taps of the Automatic Nut Tapping Machine are all specially designed, corresponding only to one type or category of special nuts. Therefore, the positioning is extremely accurate and the tapping process will not deviate. It has an automatic detection function. After threading, it will conduct a simple check. Any defective nuts will be automatically identified and removed, eliminating the need for manual screening.
| Modle | X065 | X0685 | X06127 | X0860 | X08100 |
| Main Motor KW(4HP) | 4 | 4 | 5.5 | 7.5 | 7.5 |
| Diameter(mm) | Max.6 |
Max.6 |
Max.6 |
Max.8 |
Max.8 |
| Length(mm) |
Max.50 |
Max.85 |
Max.127 |
Max.60 |
Max.100 |
| MainDie(mm) | Φ45*108 |
Φ45*108 |
Φ45*150 | Φ60*128 |
Φ60*128 |
| 1stPunch(mm) | Φ36*94 |
Φ36*94 |
Φ36*94 |
Φ38*107 |
Φ38*107 |
| 2rdPunch(mm) |
Φ36*60 |
Φ36*60 |
Φ36*60 |
Φ38*107 |
Φ38*107 |
| Cutter(mm) | 10*25 | 10*25 | 10*25 | 12*28 | 12*28 |
| Speed(Pcs/min) | 130 | 80 | 70 | 60-100 | 60-80 |
| Weight(kg) | 2200 | 2200 | 2500 | 4000 | 4200 |
