RONEN is China manufacturer & supplier who mainly produces Advanced Screw Thread Making Machine. RONEN MACHINERY will offer you the high quality machine and best service. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.
Advanced Screw Thread Making Machine features:
1.Major installation kit of our machines are made from high-quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is endurable with long time preciseness.
2.RONEN MACHINERY threading machine can be made in PKO type.
3.Perfect design, easy operation.
Advanced Screw Thread Making Machine Parameter (Specification)
|
Model |
3H30A/B |
4H45A/B |
4H55A/B |
6H55A/B |
6H70B |
6H105B |
6H40BL |
8H80B |
8H105B |
|
Diameter Range (mm) |
2-3.5 |
2.5-4 |
3-5 |
4-6 |
4-6 |
4-8 |
4-8 |
5-8 |
5-10 |
|
Blank Length Max (mm) |
30 |
45 |
55 |
50 |
70/85 |
105/125 |
40 |
80 |
105/125 |
|
Max Thread Length (mm) |
30 |
40 |
50 |
45 |
70 |
100 |
40 |
75 |
100 |
|
Capacity (pcs/min) |
230-270 |
180-230 |
160-200 |
120-160 |
120-160 |
120-140 |
60 |
90-120 |
90-120 |
|
Main Motor（KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Height Of Die Pocket (mm) |
25*30*70/80 |
25*45*76/90 |
25*55*85/100 |
25*50*110/125 |
25*70*110/125 |
25*105*110/125 |
40*40*235/260 |
30*80*150/170 |
30*105*150/170 |
|
Oil Motor(KW) |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.37 |
0.37 |
|
Feed Motor(KW) |
0.37 |
0.4 |
0.5 |
0.37 |
0.6 |
0.6 |
0.5 |
0.6 |
0.6 |
|
Packing Volume (cm) |
150*91*140 |
170*125*150 |
172*130*150 |
185*125*150 |
195*145*160 |
200*160*160 |
234*140*160 |
245*150*160 |
244*170*160 |
|
NW (KG) |
570 |
850 |
1170 |
1400 |
1500 |
1700 |
2500 |
3100 |
3200 |
|
Model |
8H150B |
10H105B |
12H150B |
12TH150B |
14H105B |
16H150B/C |
20H150B/C |
24H150C |
|
Diameter Range (mm) |
5-10 |
6-10 |
8-14 |
8-14 |
8-14 |
10-18 |
16-22 |
20-25 |
|
Blank Length Max (mm) |
150/200 |
105/125 |
150/200 |
150/200 |
105 |
150/250 |
150/250 |
150/250 |
|
Max Thread Length (mm) |
150 |
100 |
150 |
150 |
100 |
150 |
150 |
150 |
|
Capacity (pcs/min) |
90-110 |
90-110 |
75 |
75 |
75 |
45-50 |
35-45 |
42 |
|
Main Motor（KW) |
11 |
11 |
15 |
15 |
15 |
22 |
30 |
37 |
|
Height Of Die Pocket (mm) |
30*150*150/170 |
30*105*150/170 |
40*150*190/210 |
40*150*190/210 |
40*150*190/210 |
40*150*235/260 |
50*150*285/310 |
50*150*380/420 |
|
Oil Motor (KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.36 |
0.36 |
0.36 |
|
Feed Motor (KW) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1 |
2 |
4 |
|
Packing Volume (cm) |
245*190*170 |
250*160*170 |
315*195*170 |
304*200*185 |
315*195*170 |
363*215*200+ |
410*215*200+ |
420*225*224+ |
|
NW (KG) |
3300 |
3500 |
4400 |
5200 |
4600 |
12300 |
14700 |
19000 |
Machine Details And Finished Products Display

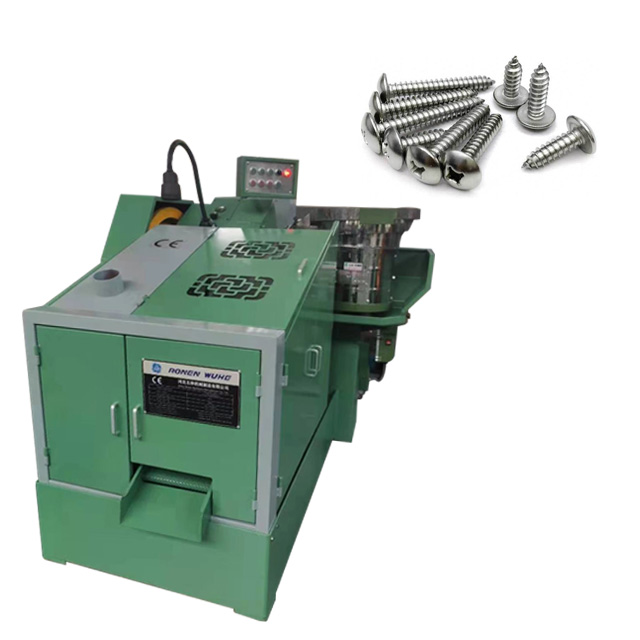

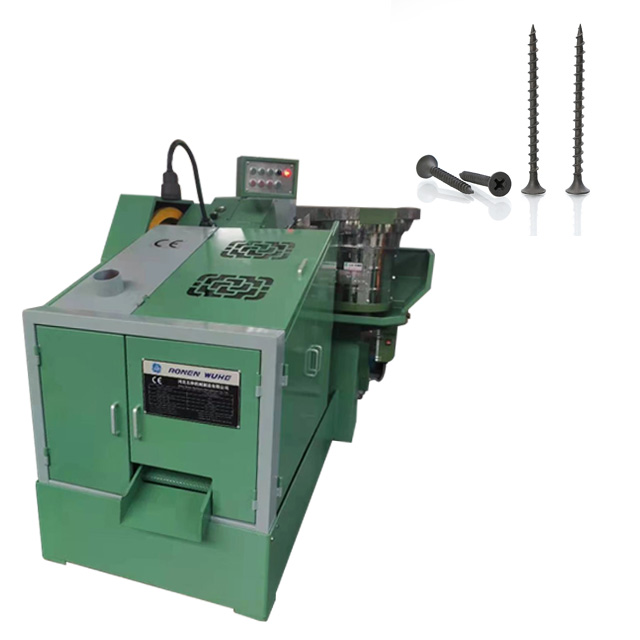

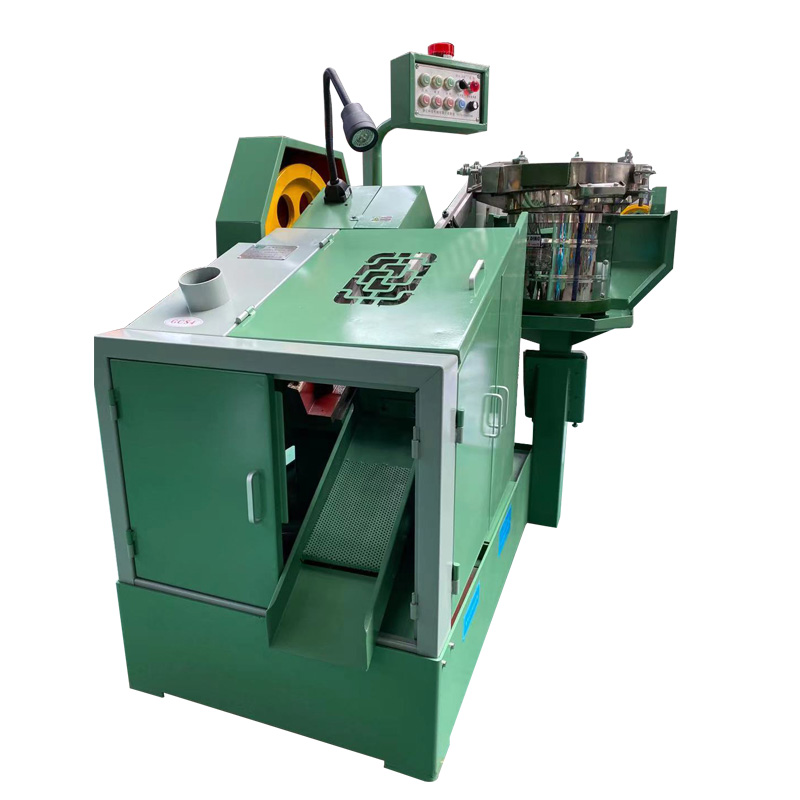

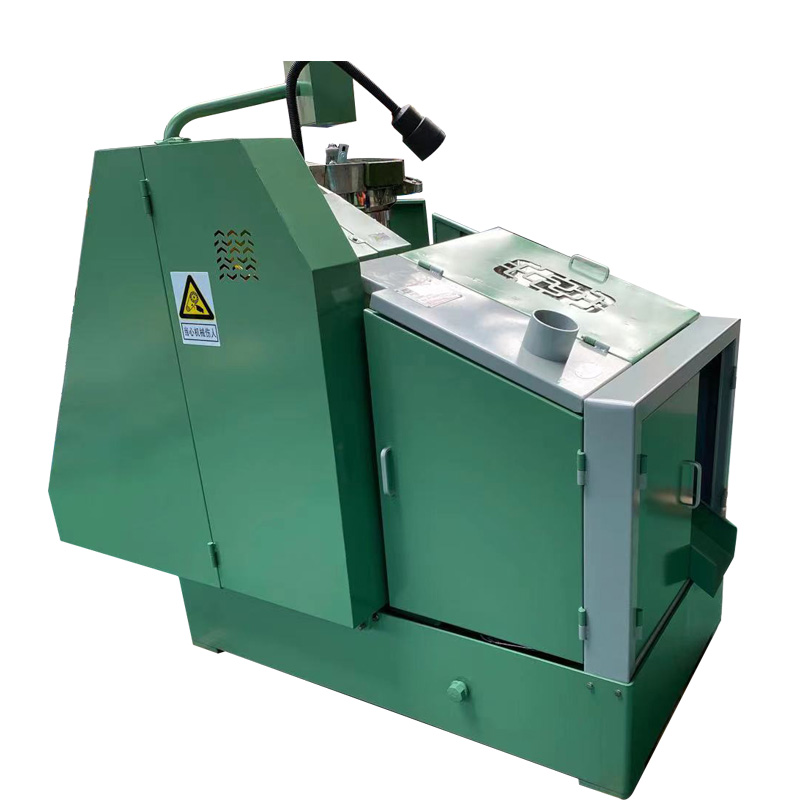

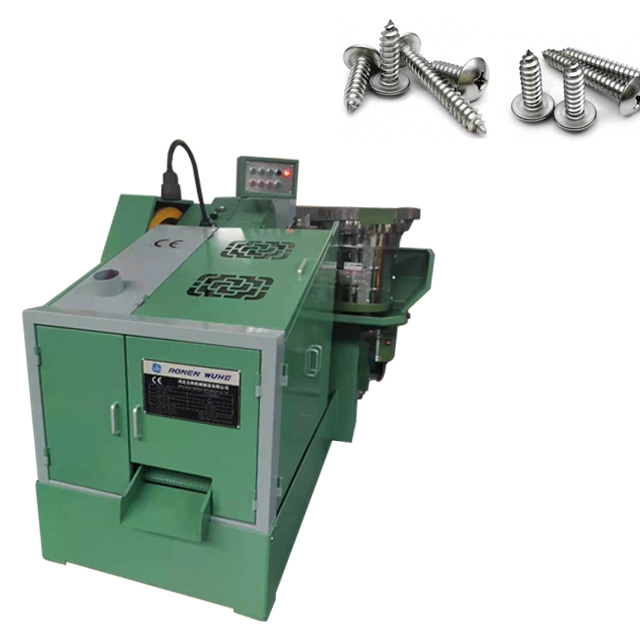

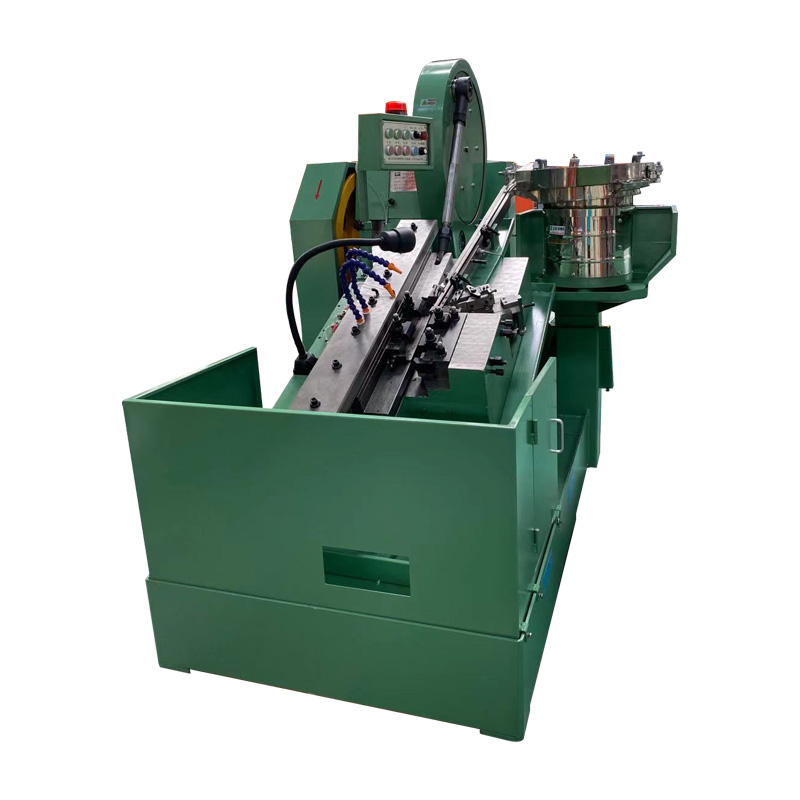

Advanced Screw Thread Making Machine in RONEN workshop.
Finished products:
Product Function Display Video
Advanced Screw Thread Making Machine working video.
Packing And Delivery
Advanced Screw Thread Making Machine is packing and shipping.
Certifications
Certificates for Advanced Screw Thread Making Machine.
FAQ
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q:What can you buy from us?
A:Cold heading machine, cold forging machine, bolts nuts machine, screws machine, threading machine and so on.
