Welcome to purchase or customized Wide Application Screw Part Cold Forging Machine from our factory at any time. RONEN is Wide Application Screw Part Cold Forging Machine manufacturers and suppliers in China. We have the design and production engineers with more than 20 years of experience, we can customize according to your drawings or samples. We assure you of our high quality services at all time.
Wide Application Screw Part Cold Forging Machine features :
1.It is suitable for auto parts, construction hardware, construction fasteners, machinery, electronics,industrial fields, etc. In recent years, we have exported to Europe, USA, Korea, Russia, India, Indonesia, Vietnam etc. counties.
2.At present, the largest model can reach X08100, diameter 2.5mm-8mm, length 6-127mm. The maximum speed of our machine can reach about 270 pcs/min.
Product Parameter (Specification)
|
Model |
D12-70 |
D12-150 |
D12-200 |
D12-250 |
D12-300 |
D12-450 |
D16-180 |
D16-450 |
|
Max.Blank Diameter (mm) |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ8.0-16 |
Φ8.0-18 |
Φ8.0-18 |
|
Max.Blank Length (mm) |
70 |
150 |
200 |
250 |
300 |
450 |
180 |
450 |
|
Max.Cut- off Length (mm) |
90 |
170 |
220 |
270 |
320 |
480 |
210 |
480 |
|
Stroke (mm) |
120 |
190 |
250 |
300 |
330 |
550 |
240 |
550 |
|
Capacity (pcs/min) |
60-70 |
40-50 |
30-40 |
30-40 |
25-35 |
25-35 |
35-40 |
25-35 |
|
Main Die Diameter (mm) |
Φ80×120 |
Φ80×200 |
Φ88×260 |
Φ88×330 |
Φ88×360 |
Φ90×540 |
Φ98×220 |
Φ98×540 |
|
The Initial Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
The Precise Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
Cut-off Die Diameter (mm) |
Φ35×45 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ60×80 |
Φ60×80 |
|
Cutter Size (mm) |
16×50×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
20×60×125 |
20×70×125 |
|
Main Motor Power (kw) |
20HP/15kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/22kw |
25HP/22kw |
25HP/22k w |
|
Volume L*W*H/(mm) |
4.50×2.00×1.32 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
6.50×2.25×2.10 |
4.40×2.10×1.95 |
6.50×2.25×2/.10 |
|
Weight (kg) |
8700 |
14000 |
14300 |
15000 |
15850 |
20800 |
20800 |
21000 |
Machine Details And Finished Products Display
Wide Application Screw Part Cold Forging Machine can produce Truss Head, Countersunk Head, Set Screw, Wood Screw, Chipboard Screw, Self Tapping Screw, Flat Head Hex Head, Pan Head, Hexagon Head, Socket Head, Button Head and so on..

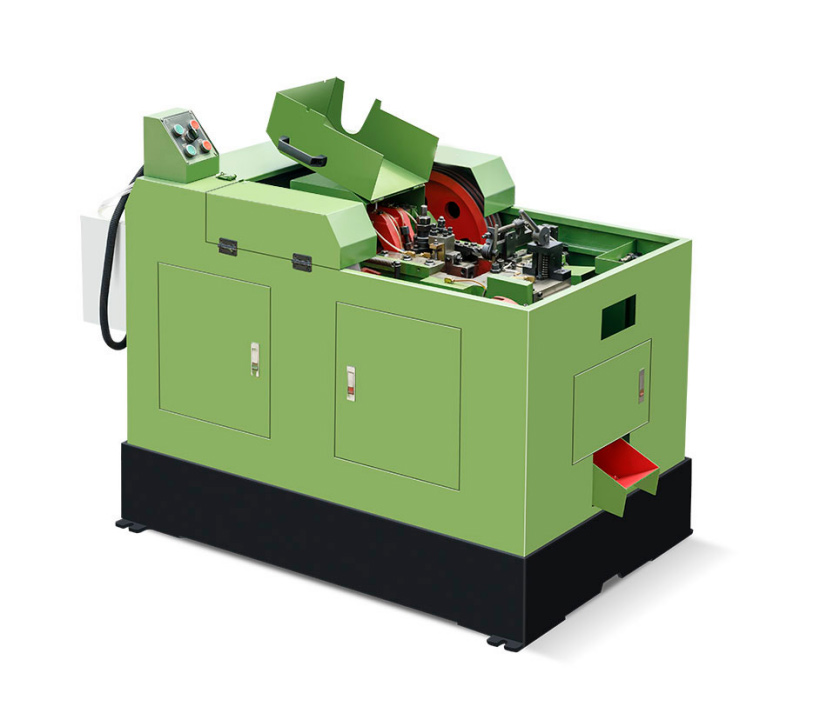

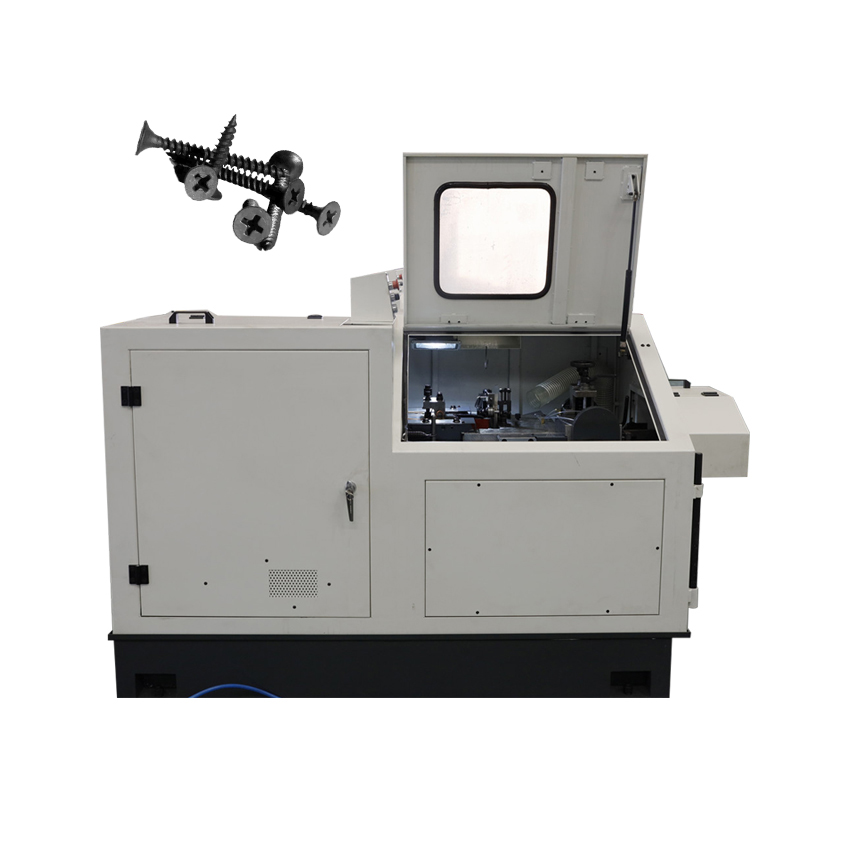

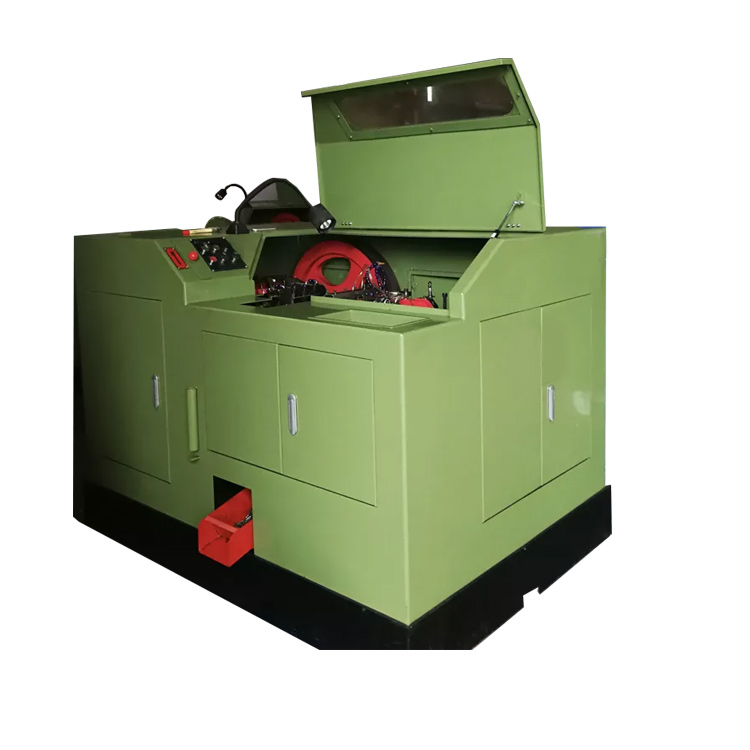

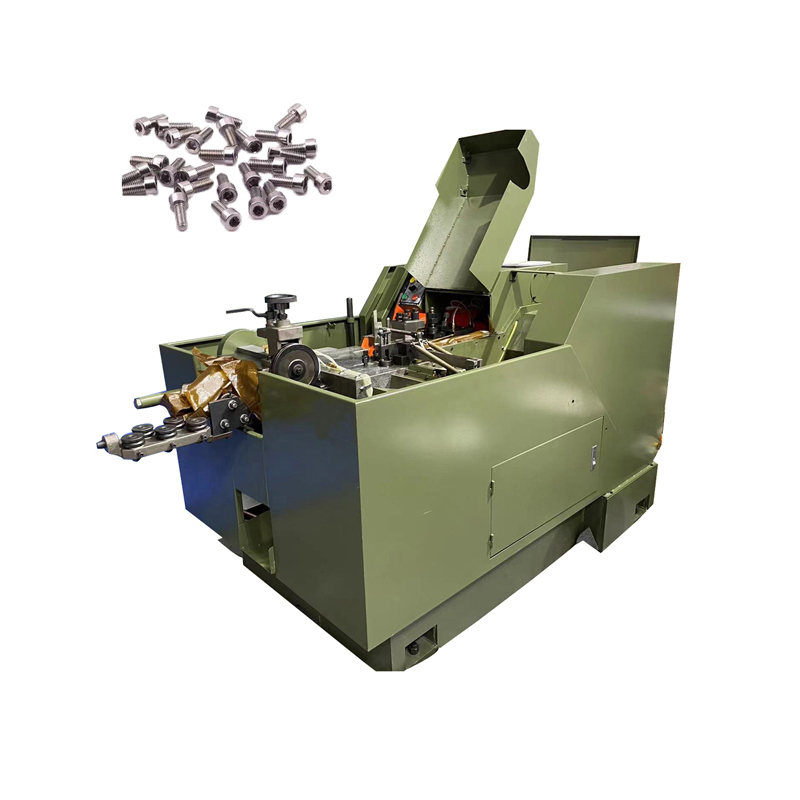

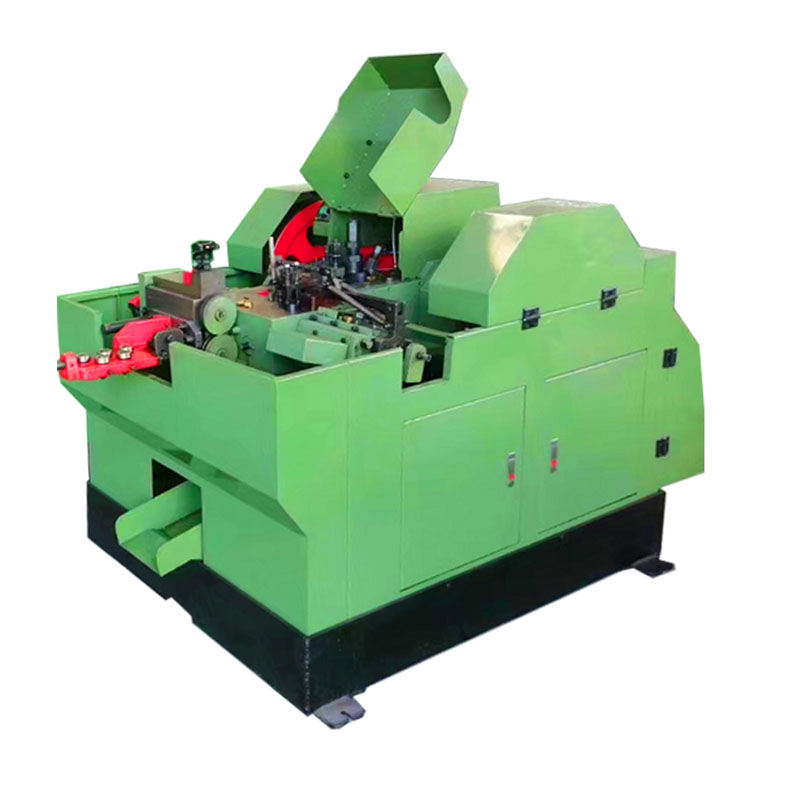

Wide Application Screw Part Cold Forging Machine details:
Wide Application Screw Part Cold Forging Machine’s finished products:
Product Function Display Video
Wide Application Screw Part Cold Forging Machine working show.
Certifications
Wide Application Screw Part Cold Forging Machine :certificates.
FAQ
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
