Hot sale quality Inner Square Screw Cold Forming Machine produced by Ronen® is suitable for auto parts, construction hardware, construction fasteners, machinery, electronics, etc. industrial fields , we have exported to Europe, USA, Korea, Russia, India, Indonesia, Vietnam etc. counties.
Inner Square Screw Cold Forming Machine:
1.High precision oil pump for machinery to provide more lasting power.
2.High precision straightening wheel,the product more accurate..
3.The linkage lever provides precise feeding for the head.
4.High speed lead traction, more accurate and faster.
Inner Square Screw Cold Forming Machine Parameter (Specification)
|
Model |
D12-70 |
D12-150 |
D12-200 |
D12-250 |
D12-300 |
D12-450 |
D16-180 |
D16-450 |
|
Max.Blank Diameter (mm) |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ8.0-16 |
Φ8.0-18 |
Φ8.0-18 |
|
Max.Blank Length (mm) |
70 |
150 |
200 |
250 |
300 |
450 |
180 |
450 |
|
Max.Cut- off Length (mm) |
90 |
170 |
220 |
270 |
320 |
480 |
210 |
480 |
|
Stroke (mm) |
120 |
190 |
250 |
300 |
330 |
550 |
240 |
550 |
|
Capacity (pcs/min) |
60-70 |
40-50 |
30-40 |
30-40 |
25-35 |
25-35 |
35-40 |
25-35 |
|
Main Die Diameter (mm) |
Φ80×120 |
Φ80×200 |
Φ88×260 |
Φ88×330 |
Φ88×360 |
Φ90×540 |
Φ98×220 |
Φ98×540 |
|
The Initial Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
The Precise Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
Cut-off Die Diameter (mm) |
Φ35×45 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ60×80 |
Φ60×80 |
|
Cutter Size (mm) |
16×50×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
20×60×125 |
20×70×125 |
|
Main Motor Power (kw) |
20HP/15kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/22kw |
25HP/22kw |
25HP/22k w |
|
Volume L*W*H/(mm) |
4.50×2.00×1.32 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
6.50×2.25×2.10 |
4.40×2.10×1.95 |
6.50×2.25×2/.10 |
|
Weight (kg) |
8700 |
14000 |
14300 |
15000 |
15850 |
20800 |
20800 |
21000 |

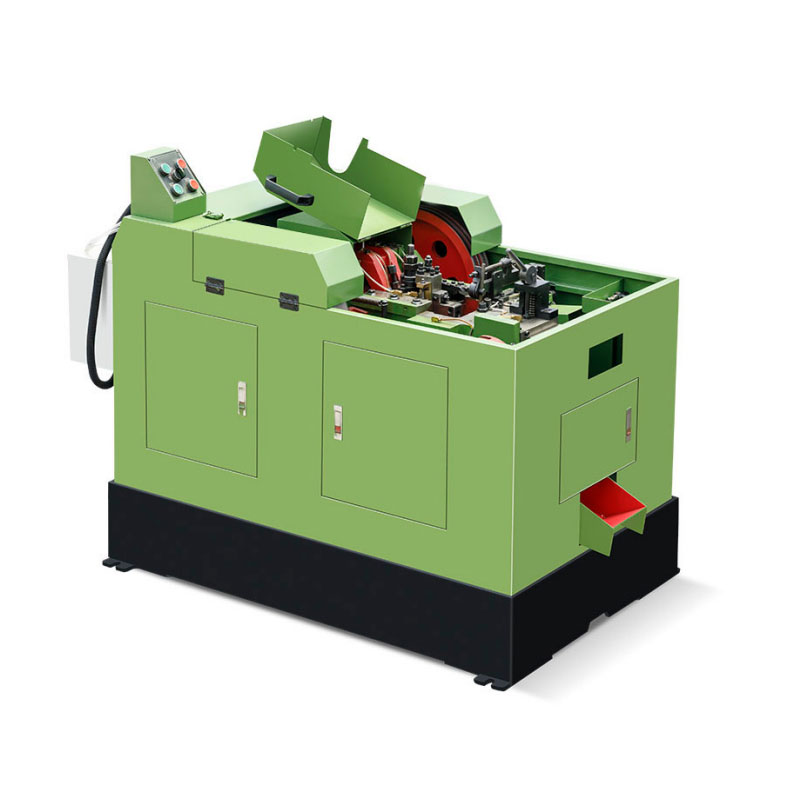

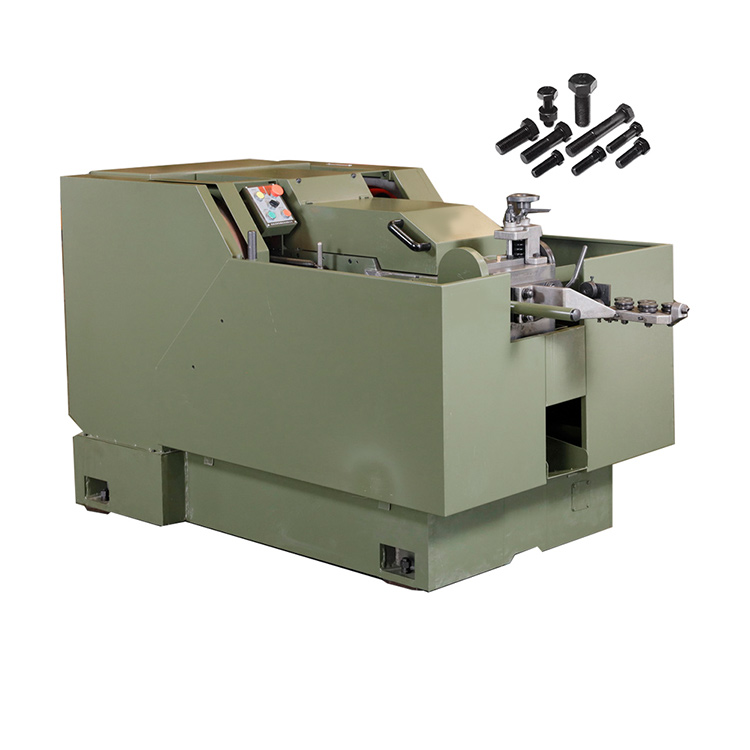

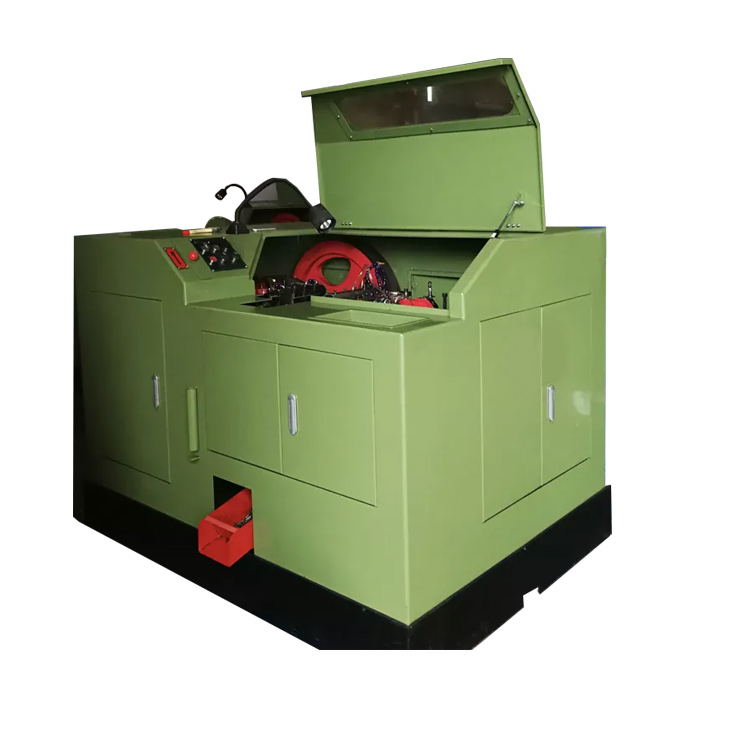

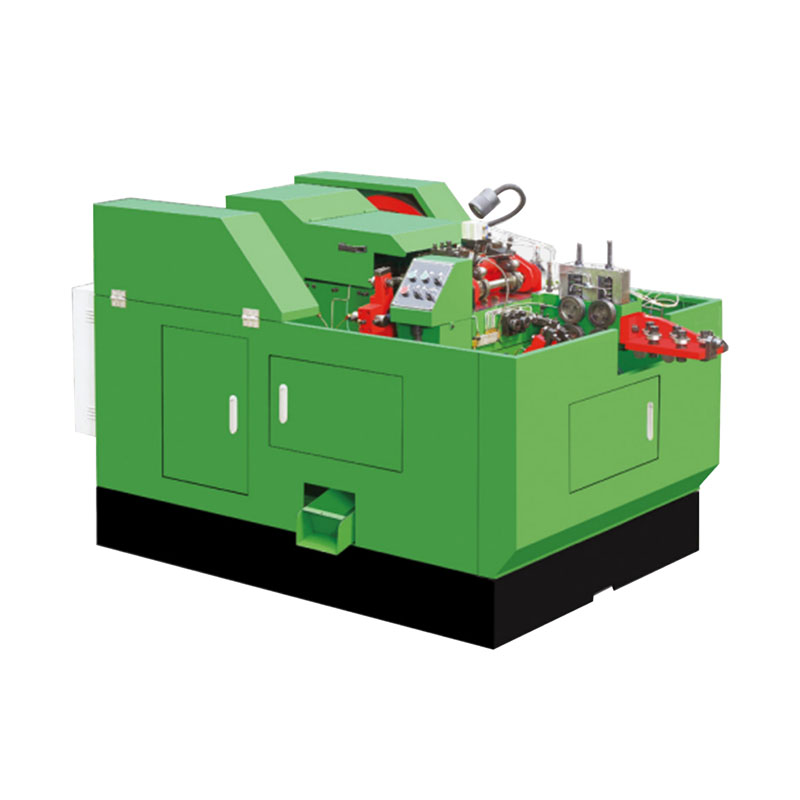

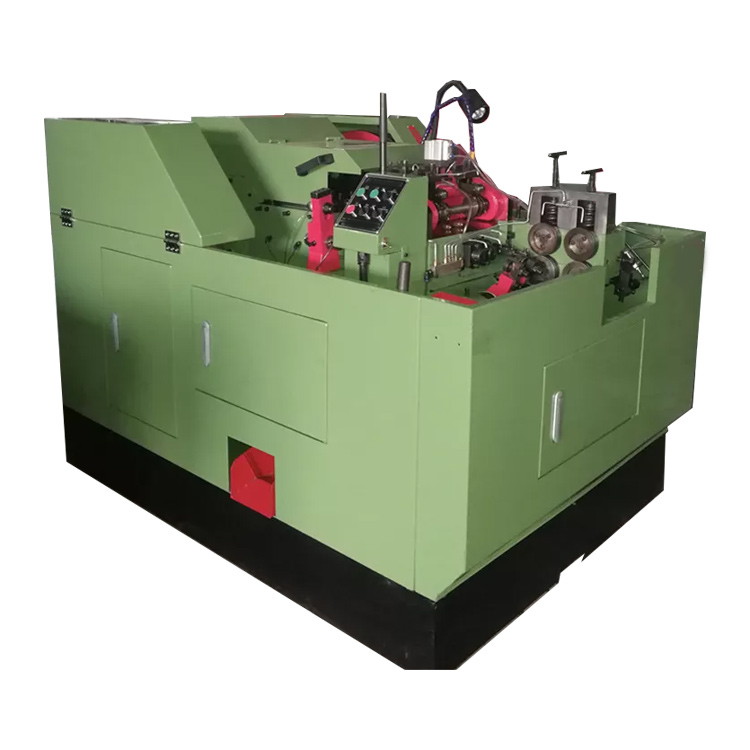

Machine Details And Finished Products Display
Ronen Machinery is one special manufacture for producing Cold Forging Machines (Fastener) in China. Has Taiwan Technology level engineers team, and with strict technical monitoring and production process, the plant area is about 15000 Square meter.
Inner Square Screw Cold Forming Machine is matched with automatic wire rolling machine in the whole plant of fastener industry.
Core components of the Inner Square Screw Cold Forming Machine:
Inner Square Screw Cold Forming Machine’s finished products:
Product Function Display Video
Inner Square Screw Cold Forming Machine operation video.
Certifications
The Inner Square Screw Cold Forming Machine provides certificates.
FAQ
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q:What can you buy from us?
A:Cold heading machine,cold forging machine,bolts nuts machine,screws machine,threading machine,etc.
Q: What about delivery time?
A: Normally within 30 days,but it depends on your quantity and order time.
