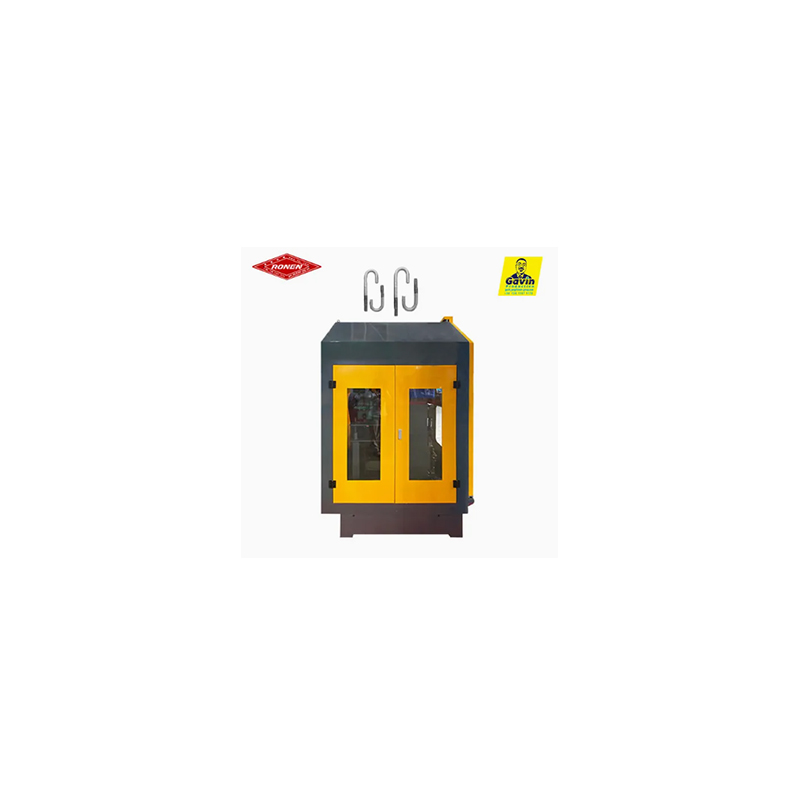

The Ronen® U Bolt Bending Machine, which is favored by many manufacturers, can bend metal rods into U-shaped bolts. It uses a fixed mold to ensure the U-shaped structure remains consistent. Just insert the rod into the fixture, set the bending width, and the machine will shape the rod into the desired form in just a few seconds.
The U Bolt Bending Machine bends straight metal rods into U-shaped bolts. Place the cut metal rods into the fixture of the machine for fixation. The machine will then fold the metal rods into a 'U' shape at the preset angle and curvature, and subsequently process the threads.

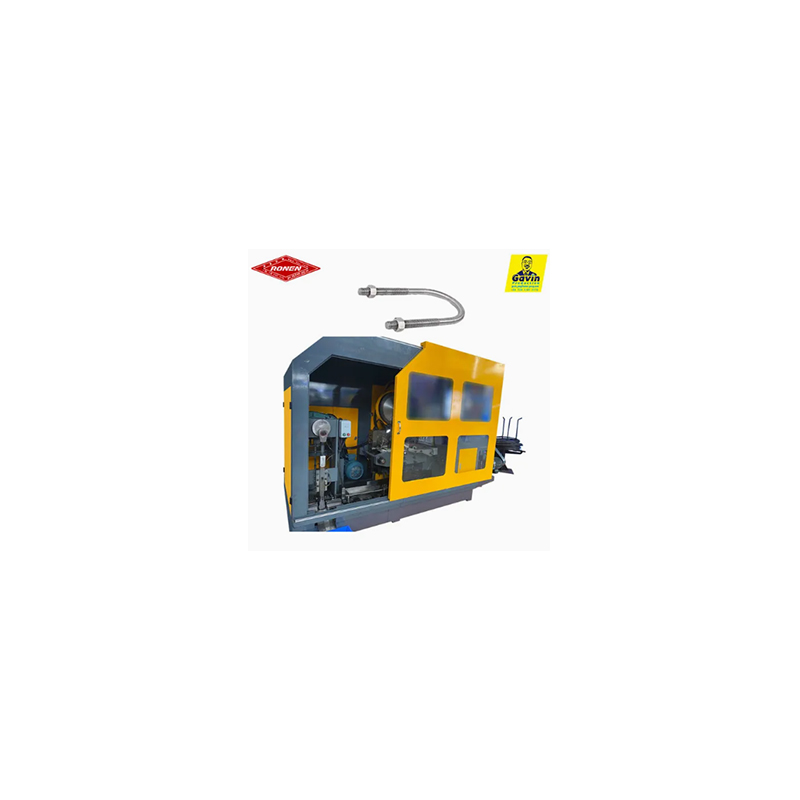

The U Bolt Bending Machine is used to bend straight round bars or threaded rods into a U shape. It typically uses hydraulic or electric systems to force the metal rods to wrap around a central bending mold. Then, two forming molds push the ends of the rod downward, creating symmetrical legs for the U-shaped bolt. This process forms a typical U-shaped profile suitable for clamping and fixing pipes, tubing, or other cylindrical objects.
The U Bolt Bending Machine first processes straight round bars. These bars can be smooth or pre-threaded. Insert the bar stock into the machine and place it against the stop block to ensure consistency of the bending position. Some automated models may be equipped with a feeding mechanism to sequentially feed in new bar stocks for bending, thereby reducing manual operations.
The Machine can produce finished U-shaped bolts, which are always ready for use. U-shaped bolts are commonly used in automotive exhaust systems, pipe supports, and structural frameworks. This machine can customize U-shaped bolts of various sizes according to requirements, without the need to stock a large quantity of pre-made sizes.
| Model | Max.Thread Diameter(mm) | Max.Thread Length | Moving Dies Stationary Length(mm)(L*TH*W) |
Motor(KW) |
Capacity(PCS/min) | Volume(L*W*H)(m) | Weight(KG) | |
| M8-120 | 8 | 120 | 170*30*120 |
150*30*120 |
5.5 | 80-90 | 2.2*1.36*1.5 | 2500 |
| M10-180 | 10 | 180 | 170*30*180 | 150*30*180 | 7.5 | 70-80 | 2.5*1.48*1.8 | 3000 |
| M12-200 | 12 | 200 | 210*40*200 | 190*40*200 | 11 | 50-60 | 3*1.8*2 | 3700 |
| M14-M220 | 14 | 220 | 210*40*220 | 190*40*220 | 11 | 50-60 | 3*1.65*2.2 | 4300 |
| M16-250 | 16 | 250 | 210*40*250 | 190*40*250 | 15 | 40-50 | 3.2*2.1*2.3 | 5210 |
The feature of the U Bolt Bending Machine is that the fixture is sturdy and the bending force is sufficient. The fixture can firmly hold the metal rod in place, preventing it from slipping during bending, and ensuring that the bending lengths at both ends are consistent. The machine is equipped with limit devices, which can precisely control the angle of the bending.
