Factory Directly Supply Swage Nut Cold Forging Machine is made by RONEN. RONEN is one of the professional Fastener machines manufacturers and suppliers in China. We are strong strength and complete management. Our products are CE certified and finished commissioning by our factory, welcome to purchase Swage Nut Cold Forging Machine from us.
Swage Nut Cold Forging Machine characteristics:
1.Nut Cold Forging Machine produced by RONEN MACHINERY is suitable for Auto-parts, Construction Fasteners, Bearing, Machinery, Electronics, Furniture, Transportation Industry, etc.
2.RONEN MACHINERY COLD HEADING MACHINE could produce nuts including：Flange Nuts, Weld Nuts, Square Nuts, Rivets, Hex Nuts, Sleeves, Acorn Nuts, Barrel Nuts, Wing Nuts, Split Nuts, Nylon Nuts, Lock Nuts,Bearing and Auto Fasteners,etc.
Product Parameter (Specification)
| Model |
Unit |
11B-6S |
14B-6S |
19B-6S |
24B-6S |
33B-6S |
41B-6S |
|
Forging Station |
NO. |
6 |
6 |
6 |
6 |
6 |
6 |
|
Across Flats of Nut |
mm |
5.5-12.7 |
10-17 |
14-22 |
17-26 |
24-33 |
30-41 |
|
Suitable Hex Nut |
DIN |
M3-M6 |
M6-M10 |
M8-M14 |
M10-M18 |
M16-M22 |
M20-M27 |
|
Cut-off Dia |
mm |
11 |
16 |
19 |
24 |
31 |
40 |
|
Dies Pitch |
mm |
50 |
60 |
80 |
100 |
140 |
165 |
|
Forging Power |
Ton |
60 |
90 |
135 |
230 |
360 |
450 |
|
Main Motor |
HP |
15 |
20 |
50 |
75 |
150 |
200 |
|
Lubrication Motor |
HP |
1.5 |
1.5 |
1.5 3 |
1.5 3 |
3 |
3 |
|
Installed Quantity |
SET |
(1) |
(2) |
(1) (1) |
(1) (1) |
(2) |
(2) |
|
Lubricant |
L |
700 |
1000 |
1200 |
1700 |
1900 |
2200 |
|
Approx Weight |
Ton |
4.5 |
8 |
14 |
25 |
45 |
72 |
Machine Details And Finished Products Display

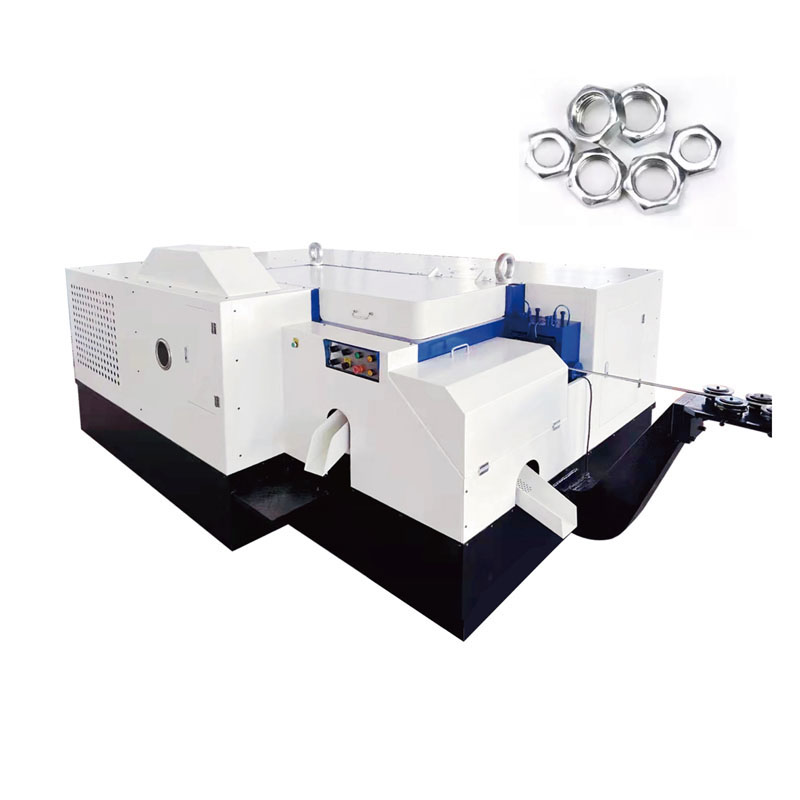

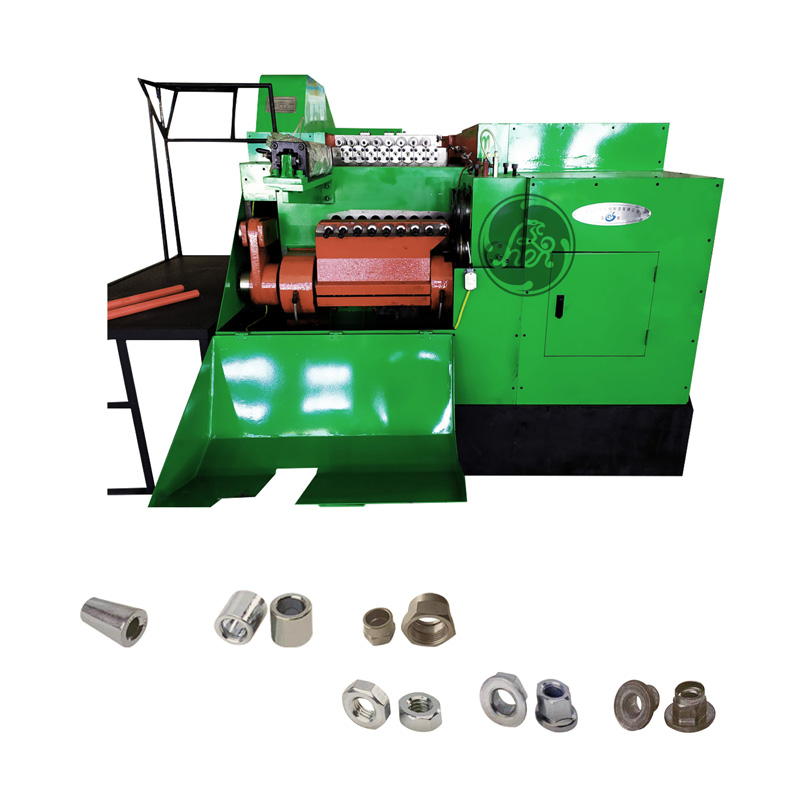

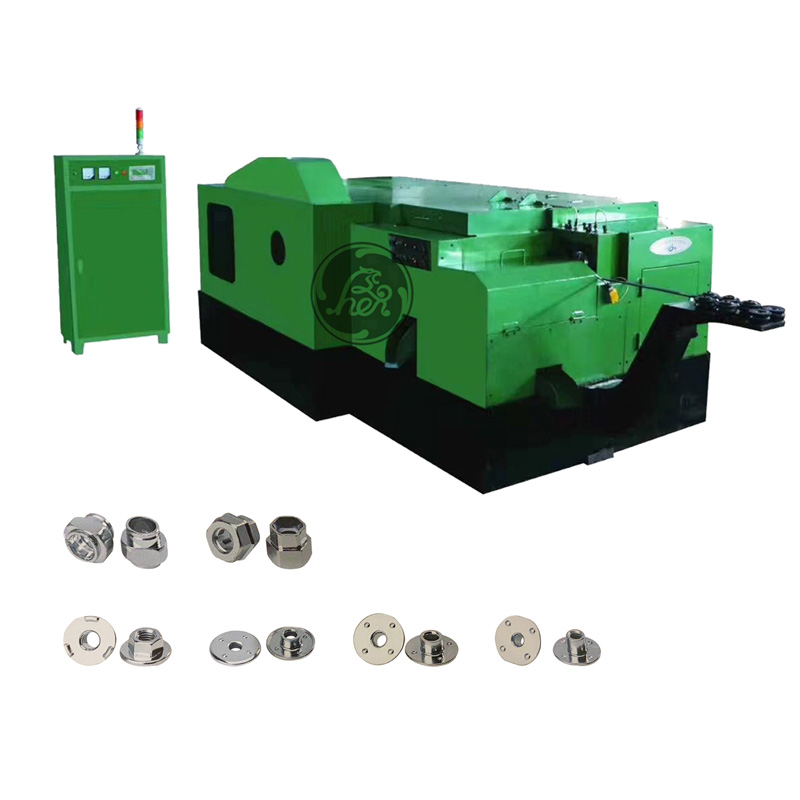

Swage Nut Cold Forging Machine display:
Finished products display:
Product Function Display Video
Swage Nut Cold Forging Machine working video.
5.Certifications
Swage Nut Cold Forging Machine certificate:
FAQ
Q: Can your machinery produce non-standard parts?
A: Yes, we can. We have the design and production engineers with more than 20 years of experience, we can customize according to your drawings or samples.
Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly
Q: How long can you provide the warranty?
A: Our machine has a one-year warranty.
Q: What can you buy from us?
A:Cold heading machine, Cold forging machine, Bolts nuts machine, Screws machine, Threading machine, etc.
