Welded Hexagonal Nut Cold Forging Machine

Wholesale hot sale Factory Directly Supply Welded Hexagonal Nut Cold Forging Machine is produced by Ronen®. Welded Hexagonal Nut Cold Forging Machine is suited for Bearing, Furniture, Auto-parts, Electronics, Construction Fasteners, Machinery, Transportation Industry, etc.

Send Inquiry

Product Description

Ronen® is Welded Hexagonal Nut Cold Forging Machine manufacturer and supplier in China.

Welded Hexagonal Nut Cold Forging Machine:

1.RONEN MACHINERY COLD FORGING MACHINE can manufacture nuts including:
Rivets, Sleeves, Flange Nuts, Square Nuts, Weld Nuts, Hex Nuts, Wing Nuts, Acorn Nuts, Barrel Nuts, Split Nuts, Lock Nuts, Nylon Nuts, Bearing and Auto Fasteners, etc.
2. For the moment, nut cold forging machine model from 11B to 41B, part sizes from M3 to M27(as the standard hex nut sizes), stations from 6 to 12.


Product Parameter (Specification)

Model

Unit

11B-6S

14B-6S

19B-6S

24B-6S

33B-6S

41B-6S

Forging Station

NO.

6

6

6

6

6

6

Across Flats of Nut

mm

5.5-12.7

10-17

14-22

17-26

24-33

30-41

Suitable Hex Nut

DIN

M3-M6

M6-M10

M8-M14

M10-M18

M16-M22

M20-M27

Cut-off Dia

mm

11

16

19

24

31

40

Dies Pitch

mm

50

60

80

100

140

165

Forging Power

Ton

60

90

135

230

360

450

Main Motor

HP

15

20

50

75

150

200

Lubrication Motor

HP

1.5

1.5

1.5 3

1.5 3

3

3

Installed Quantity

SET

(1)

(2)

(1) (1)

(1) (1)

(2)

(2)

Lubricant

L

700

1000

1200

1700

1900

2200

Approx Weight

Ton

4.5

8

14

25

45

72


Machine Details And Finished Products Display

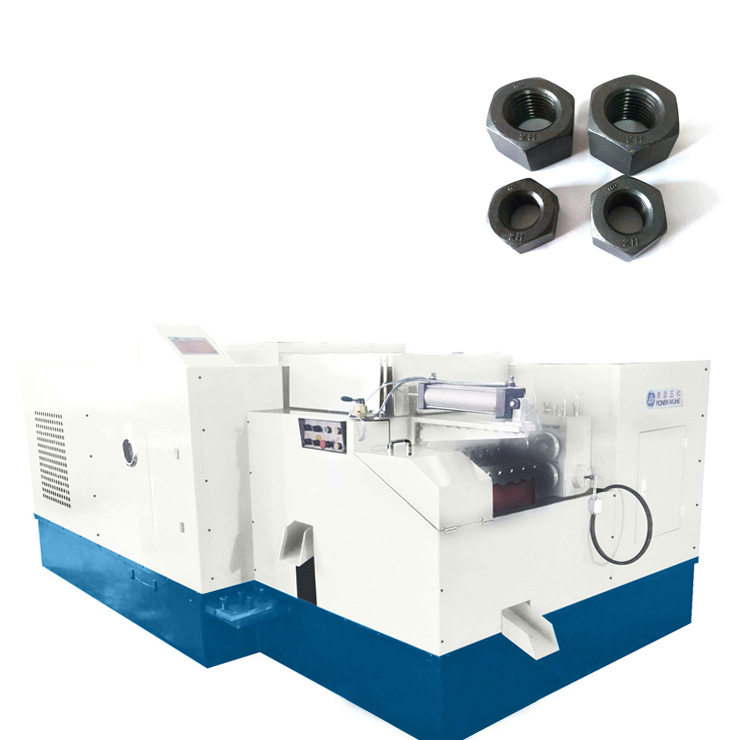

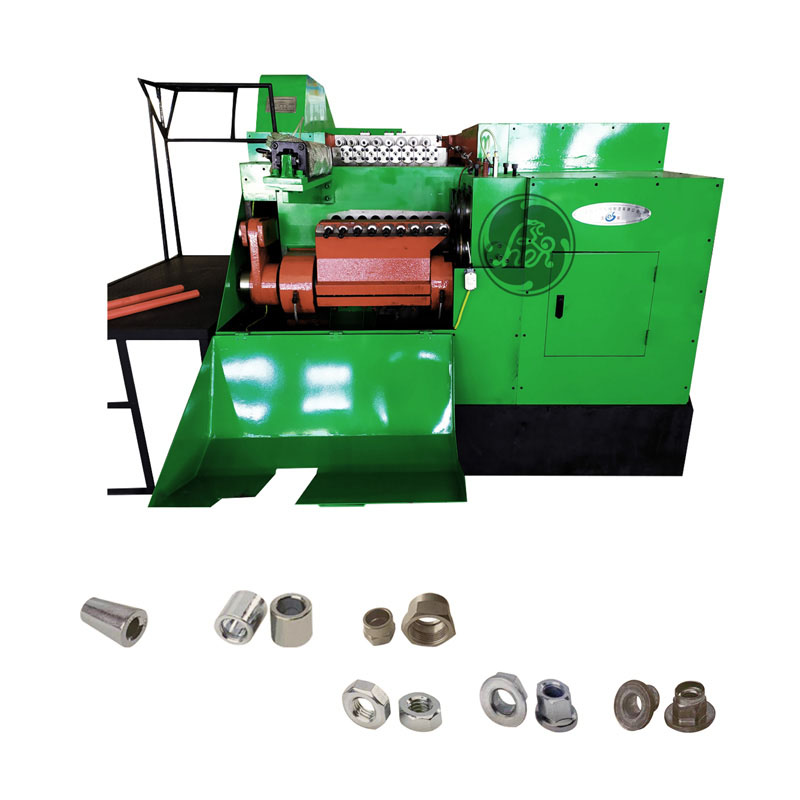

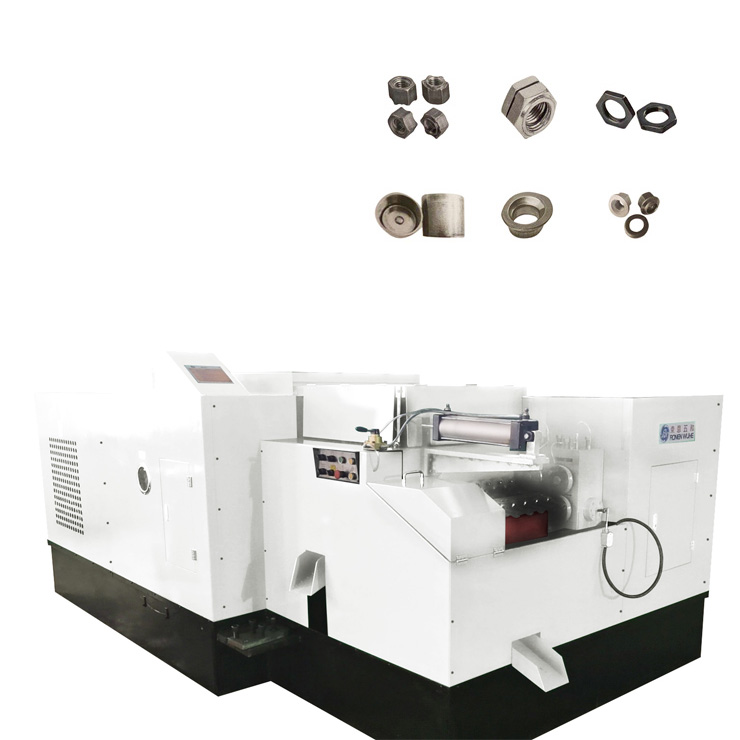

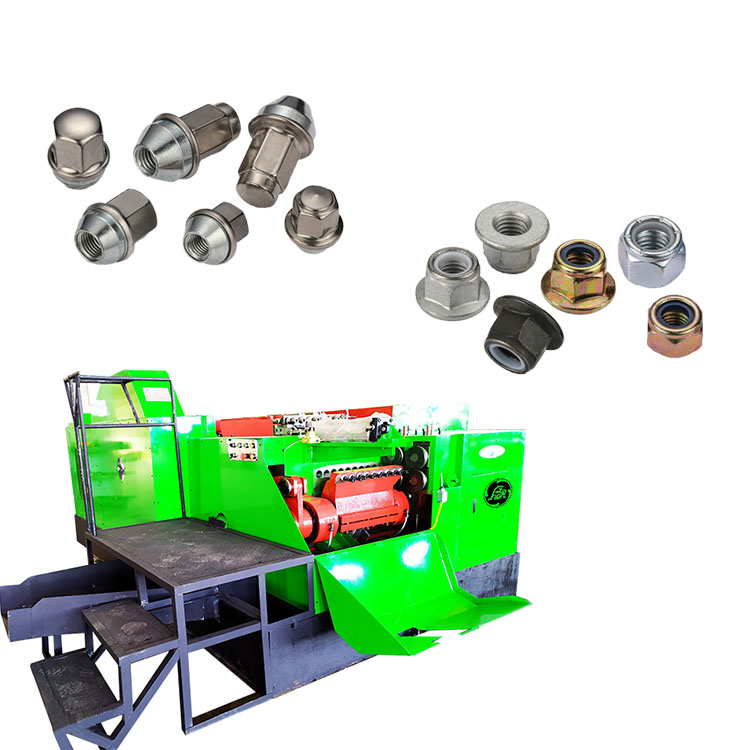

Welded Hexagonal Nut Cold Forging Machine in the workshop:


Finished products display:


Product Function Display Video

Welded Hexagonal Nut Cold Forging Machine running display.



Certifications

Welded Hexagonal Nut Cold Forging Machine: certificates


FAQ

Q:Do you provide custom services?
A:Yes,we customize the machine according to your samples or drawings.

Q: What can you buy from us?
A:Cold heading machine, Cold forging machine, Bolts nuts machine, Screws machine, Threading machine, etc.

Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.

Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.

Q: Does your factory have customers in other countries?
A: We had produced and exported to Europe, Asia, Africa, North America, South America, Oceania.
