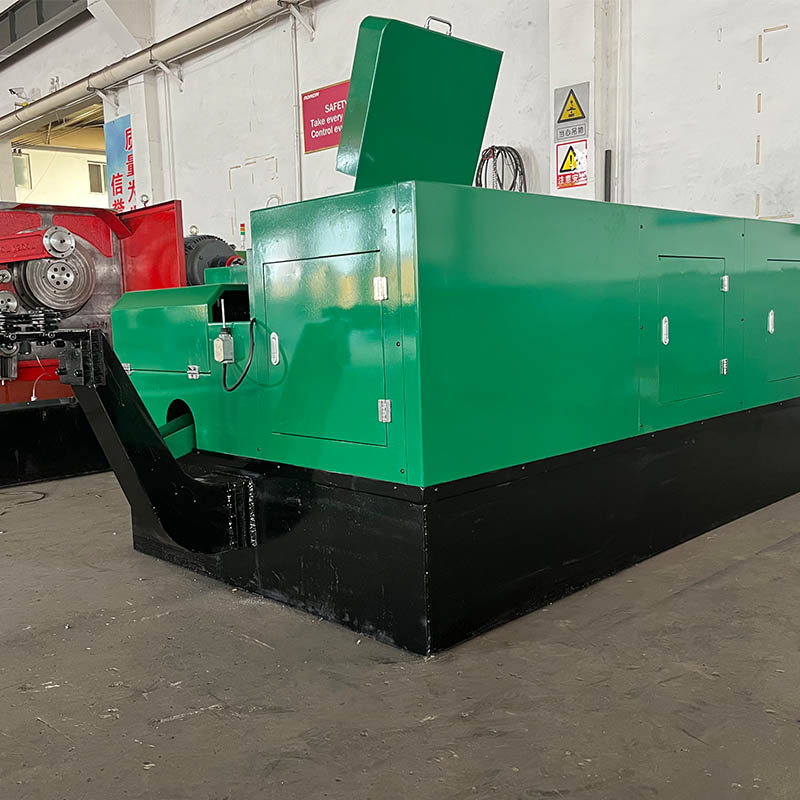

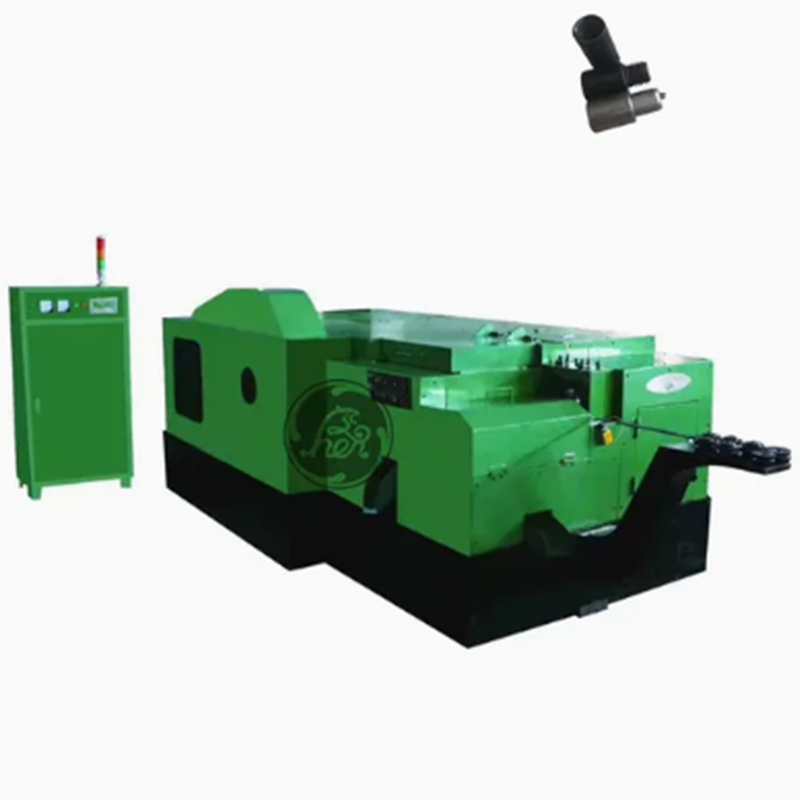

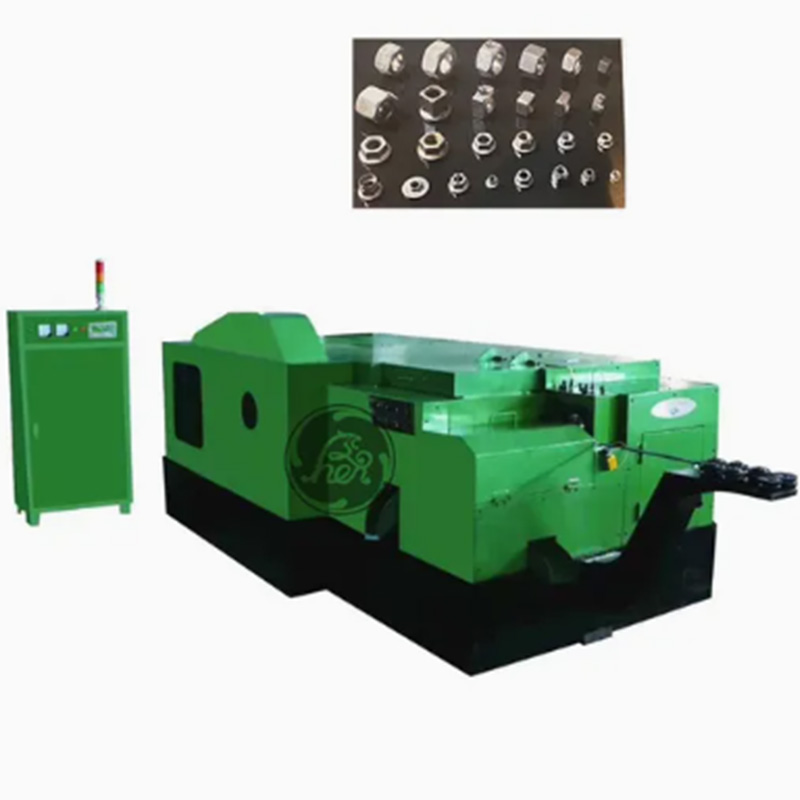

The Ronen®Six Station Metal Nut Making Machine can complete the shaping process in just six steps: wire cutting, extrusion, hexagon forming, punching, edge trimming and final polishing. There is no need to move the blanks between different molds, thus saving time in the processing workshop.
The Six Station Metal Nut Making Machine manufactures nuts in six steps. It uses a roll of metal wire, cuts it into sections, and then feeds each section into six different stations in sequence. Each station is responsible for a different part, such as shape, hexagonal side and internal thread.
Start the Six Station Metal Nut Making Machine. Just insert the metal wire into the machine. The machine will handle the rest of the work automatically. It will push the nut blanks from one station to the next. Different tools will process them until the finished nuts come out from the other end.
The Six Station Metal Nut Making Machine is used for manufacturing metal connecting nuts for household appliances. The machine can cut pieces of different lengths, such as 12 millimeters and 18 millimeters. The appliance factory can adjust the cutting length according to their needs, and it's very flexible.
The main job of the operator of the Six Station Metal Nut Making Machine is to keep the machine running. You need to load new coils and check the size and thread quality of the finished nuts. The machine will automatically complete the complex forming process. Each station requires specific punches and molds to manufacture the required nuts. This takes some time, but once completed, the machine can run the production of these nuts for a long time.
|
Model |
Unit |
WH-NF 11B-6S |
WH-NF 14B-6S |
WH-NF 19B-6S |
WH-NF 24B-6S |
WH-NF 33B-6S |
WH-NF 41B-6S |
|
Forging Station |
NO |
6 |
6 |
6 |
6 | 6 | 6 |
|
Across Flats of Nut |
mm |
5.5-12.7 |
10-17 |
14-22 |
17-26 | 24-33 | 30-41 |
|
Suitable Hex Nut |
DIN |
M3-M6 |
M6-M10 |
M8-M14 |
M10-M18 |
M16-M22 |
M20-M27 |
|
Cut-Off Dia |
mm |
11 |
16 | 19 | 24 | 31 | 40 |
|
Dies Pitch |
mm |
50 |
60 | 80 | 100 | 140 | 165 |
|
Foging Power |
Ton |
60 | 90 | 135 | 230 | 360 | 450 |
|
Main Motor |
HP |
15 | 20 | 50 | 75 | 150 | 200 |
|
Lubrication Motor |
HP |
1.5 | 1.5 | 1.53 | 1.53 | 3 | 3 |
|
Installed Quantity |
SET |
1 | 2 | 11 | 11 | 2 | 2 |
|
Lubricant |
L |
700 | 1000 | 1200 | 1700 | 1900 | 2200 |
|
Approx Weight |
Ton |
4.5 | 8 | 14 | 25 | 45 | 72 |
The selling points of the Six Station Metal Nut Making Machine are "universal + efficient". Whether it's carbon steel, stainless steel or copper nuts, just adjust the parameters and you can process them without needing to change specialized equipment; six stations complete the process in one step. It is suitable for small and medium batch orders with multiple specifications.
