RONEN is one of the professional Fastener machines manufacturers and suppliers in China. We are strong strength and complete management. Our products are CE certified and finished commissioning by our factory, welcome to purchase Professional China Quality Semi Tubular Rivet Rivet Part Cold Forming Machine from us.
Semi Tubular Rivet Rivet Part Cold Forming Machine characteristics :
1.The machine has the advantages of fast production speed, small error and high precision, convenient operation and low maintenance rate.
2.The machine uses the cold forging method. Double - die upsetting was carried out on the wire. One machine to complete the feeding, straightening, cutting, forming, discharging. This machine is particularly suitable for the manufacture of semi-hollow rivet.
Product Parameter (Specification)
|
Model |
RN03-20 |
RN04-40 |
RN05-60 |
RN05-80 |
RN06-90 |
RN06-120 |
RN08-120 |
RN10-120 |
|
Max. Blank Diameter mm |
Φ4 |
Φ5 |
Φ7 |
Φ7 |
Φ9 |
Φ9 |
Φ11 |
Φ13 |
|
Max. Blank Length mm |
20 |
40 |
60 |
80 |
90 |
120 |
120 |
120 |
|
Capacity Pcs/min |
100-120 |
90-100 |
70-90 |
70-90 |
60-80 |
60-80 |
50-70 |
50-60 |
|
Main Die Diameter mm |
Φ20*36 |
Φ32*58 |
Φ34.5*95 |
Φ34.5*98 |
Φ45*120 |
Φ45*150 |
Φ55*160 |
Φ70*160 |
|
Punch Die Diameter mm |
Φ18*50 |
Φ25*65 |
Φ31*75 |
Φ31*80 |
Φ35*100 |
Φ35*100 |
Φ40*120 |
Φ55*150 |
|
Cut-off Die Diameter mm |
Φ13*20 |
Φ15*30 |
Φ19*35 |
Φ19*35 |
Φ24*40 |
Φ24*40 |
Φ28*45 |
Φ35*50 |
|
Cutter Size mm |
6*25*42 |
9*32*70 |
9*35*72 |
9*35*72 |
12*35*77 |
12*35*77 |
12*42*90 |
16*55*115 |
|
Main Motor KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
11 |
|
Weight kg |
624 |
1105 |
2100 |
2340 |
3640 |
3900 |
4160 |
5980 |
|
Volume (L*W*H)/m |
1.40*0.75*0.90 |
2.00*0.85*1.15 |
2.40*1.10*1.25 |
2.40*1.10*1.25 |
2.70*1.40*1.60 |
3.10*1.40*1.60 |
3.70*1.60*1.80 |
4.80*1.80*1.32 |
Machine Details And Finished Products Display

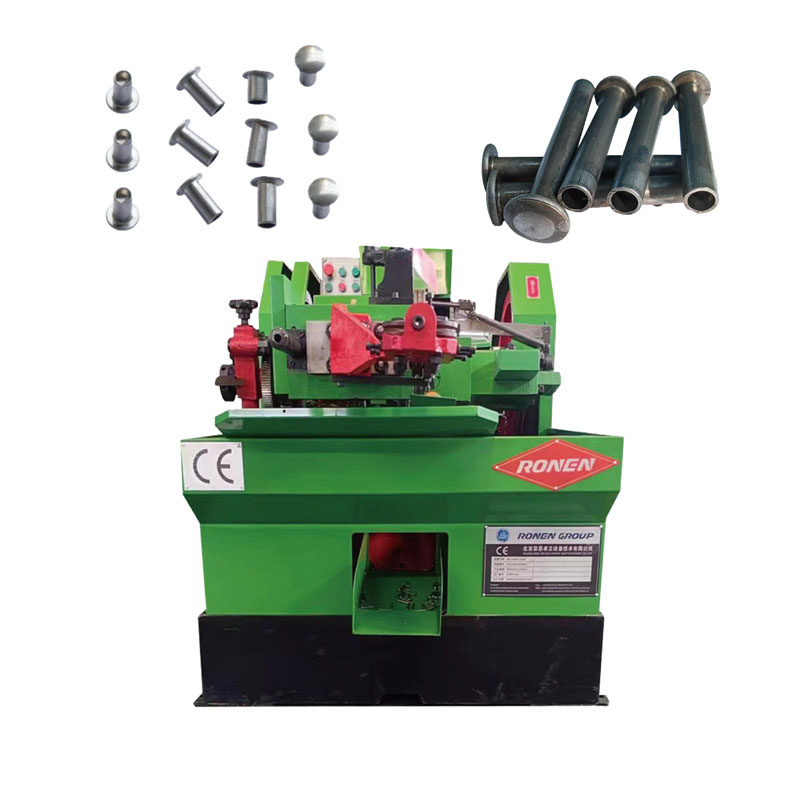

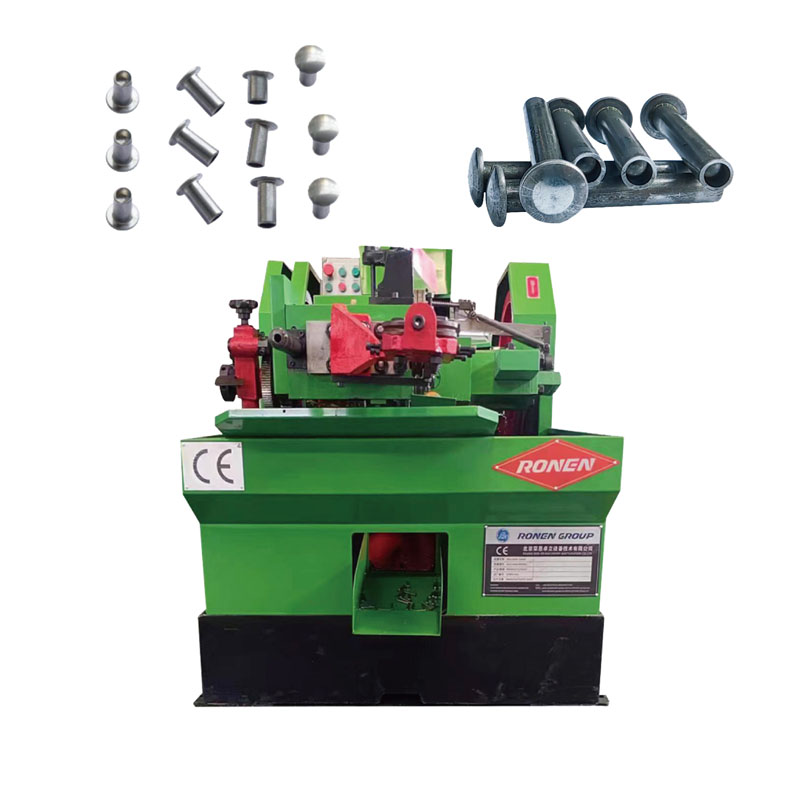

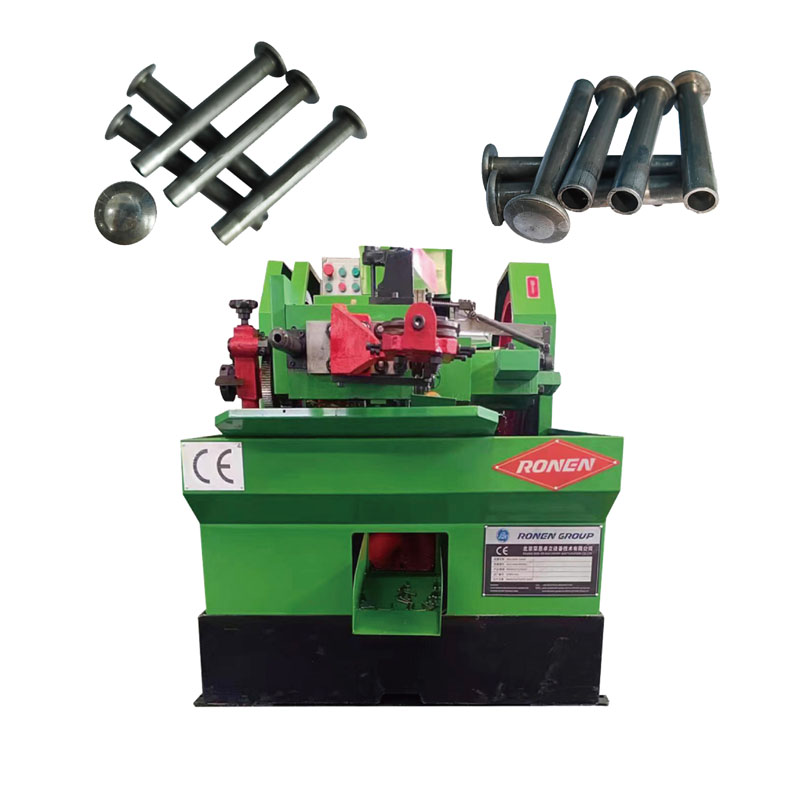

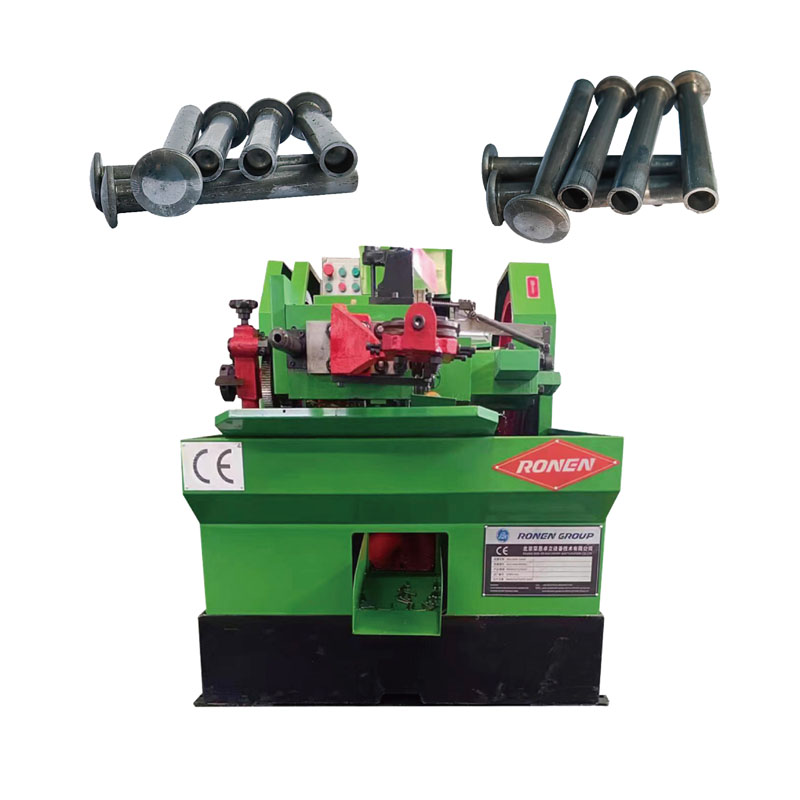

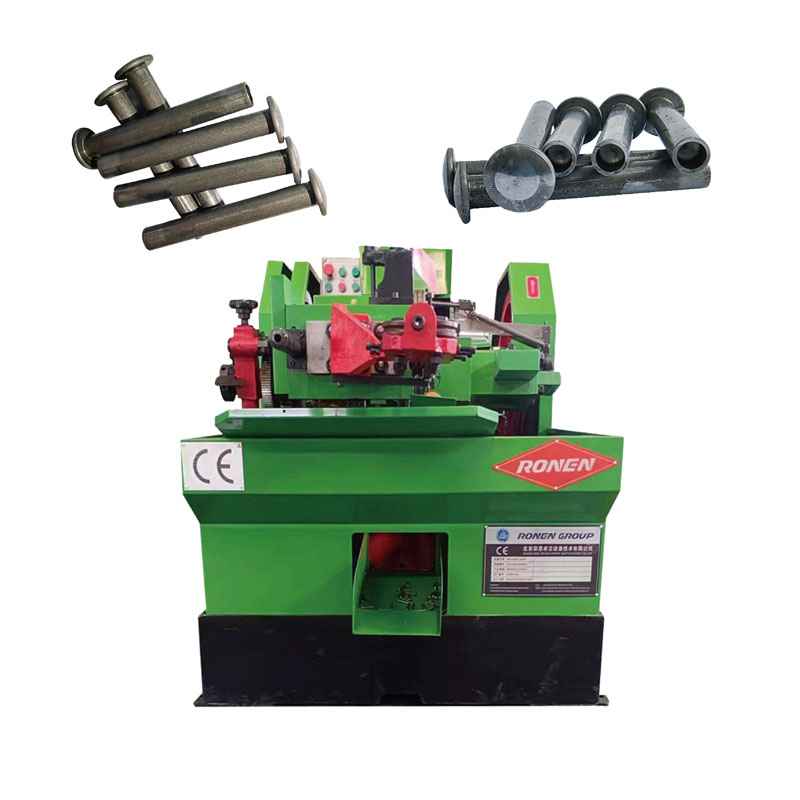

Semi Tubular Rivet Rivet Part Cold Forming Machine details :
The finished-products:
Product Function Display Video
Semi Tubular Rivet Rivet Part Cold Forming Machine working video show:
Packing And Delivery
Semi Tubular Rivet Rivet Part Cold Forming Machine : packing and shipping.
Certifications
Semi Tubular Rivet Rivet Part Cold Forming Machine : certificate.
FAQ
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
Q: What about delivery time?
A: Normally within 30 days,but it depends on your quantity and order time.
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
