Ronen® Machinery is one special manufacture for producing iron rivet making machine in China. We have Taiwan Technology level engineers team, and with strict technical monitoring and production process, the plant area is about 15000+ Square meter.
iron rivet making machine is applicable to manufacturing of semi-hollow rivets.Only by one machine to complete the Feeding, straightening, cutting material, forming, discharging. If you are interested in our DIN6791 Rivet Making Machine services, you can consult us now, we will reply to you in time!
Iron Rivet Making Machine：
1.The machine has the superiority of high precision, small error and fast production speed, convenient operation and low maintenance rate.
2.The machine apply to the production of semi-tubular rivet with the latest material hooking system.
Iron Rivet Making Machine Parameter (Specification)
|
Model |
RN03-20 |
RN04-40 |
RN05-60 |
RN05-80 |
RN06-90 |
RN06-120 |
RN08-120 |
RN10-120 |
|
Max. Blank Diameter mm |
Φ4 |
Φ5 |
Φ7 |
Φ7 |
Φ9 |
Φ9 |
Φ11 |
Φ13 |
|
Max. Blank Length mm |
20 |
40 |
60 |
80 |
90 |
120 |
120 |
120 |
|
Capacity Pcs/min |
100-120 |
90-100 |
70-90 |
70-90 |
60-80 |
60-80 |
50-70 |
50-60 |
|
Main Die Diameter mm |
Φ20*36 |
Φ32*58 |
Φ34.5*95 |
Φ34.5*98 |
Φ45*120 |
Φ45*150 |
Φ55*160 |
Φ70*160 |
|
Punch Die Diameter mm |
Φ18*50 |
Φ25*65 |
Φ31*75 |
Φ31*80 |
Φ35*100 |
Φ35*100 |
Φ40*120 |
Φ55*150 |
|
Cut-off Die Diameter mm |
Φ13*20 |
Φ15*30 |
Φ19*35 |
Φ19*35 |
Φ24*40 |
Φ24*40 |
Φ28*45 |
Φ35*50 |
|
Cutter Size mm |
6*25*42 |
9*32*70 |
9*35*72 |
9*35*72 |
12*35*77 |
12*35*77 |
12*42*90 |
16*55*115 |
|
Main Motor KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
11 |
|
Weight kg |
624 |
1105 |
2100 |
2340 |
3640 |
3900 |
4160 |
5980 |
|
Volume (L*W*H)/m |
1.40*0.75*0.90 |
2.00*0.85*1.15 |
2.40*1.10*1.25 |
2.40*1.10*1.25 |
2.70*1.40*1.60 |
3.10*1.40*1.60 |
3.70*1.60*1.80 |
4.80*1.80*1.32 |
Machine Details And Finished Products Display

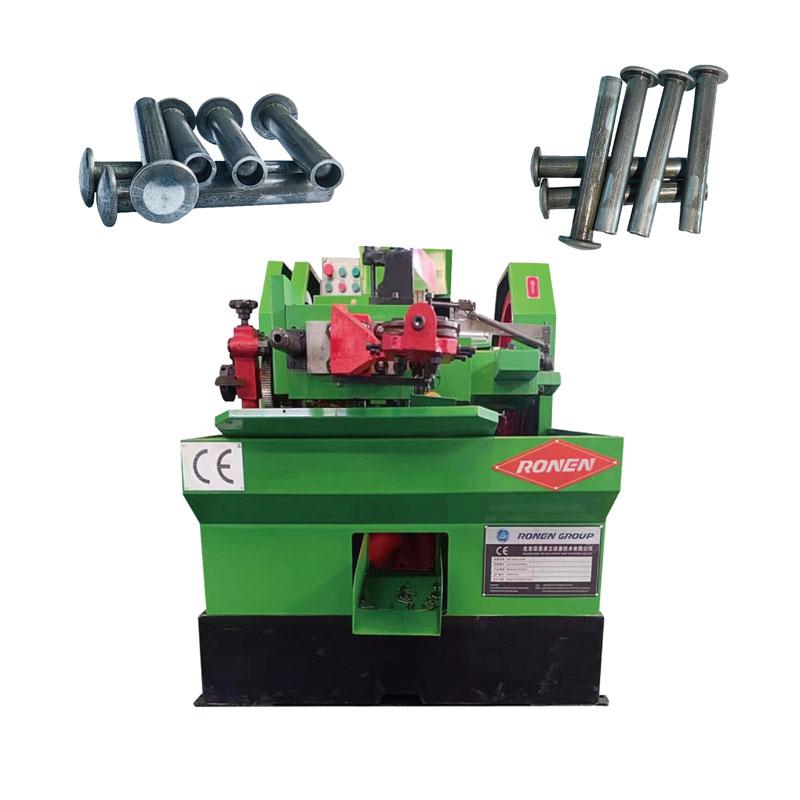

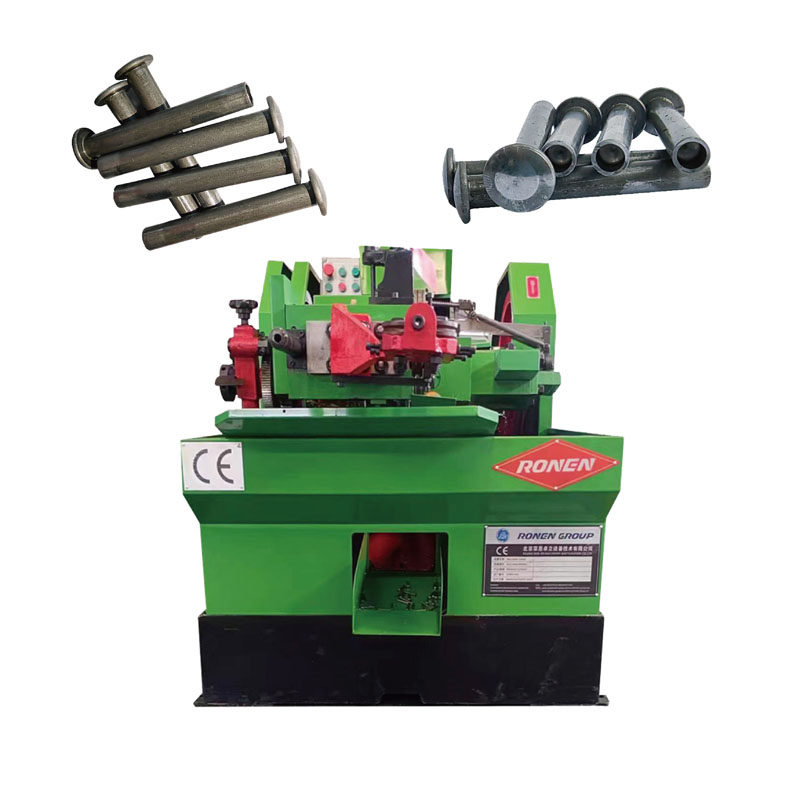

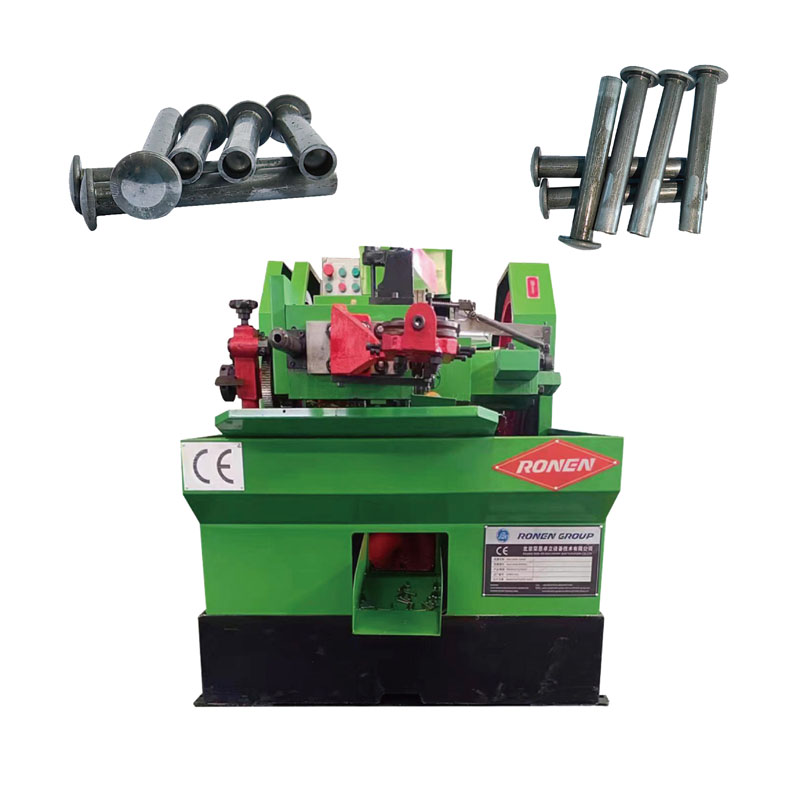

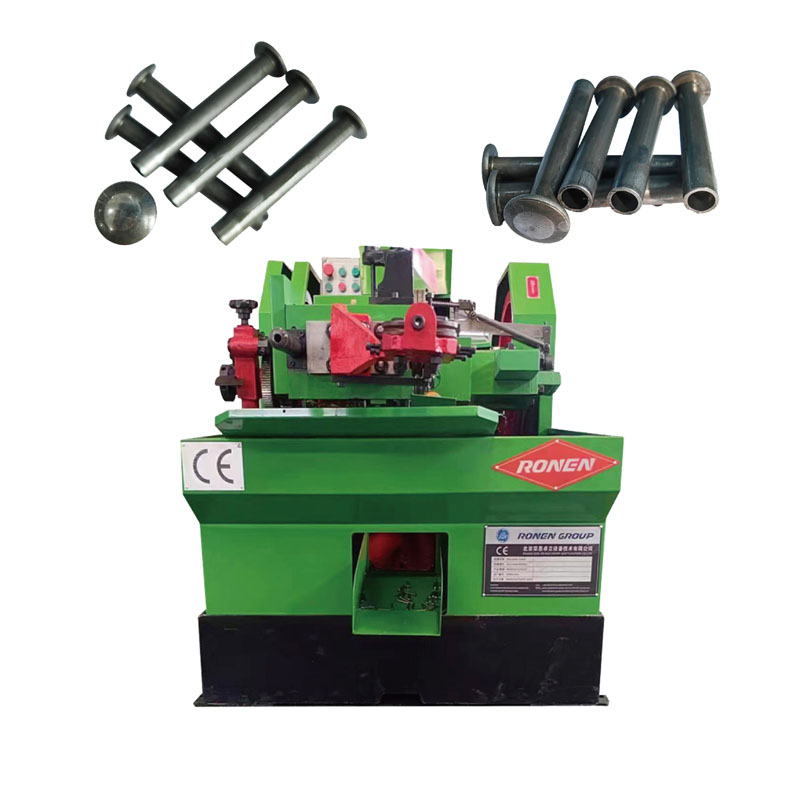

Iron Rivet Making Machine in RONEN workshop:
The finished-products:
Product Function Display Video
DIN6791 Rivet Making Machine working video:
Packing And Delivery
DIN6791 Rivet Making Machine is packed in wood-box or else package, all as your requirements.
Certifications
Iron Rivet Making Machine: certificate.
FAQ
Q:What year is this machine?
A:New product in 2023.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q: Do you provide any training to ensure that our users can operate DIN6791 Rivet Making Machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
