RONEN MACHINERY is one of the famous China Quality Fastener Machines manufacturers. Our factory specializes in manufacturing of Semi Hollow Rivet Rivet Cold Forging Machine. RONEN has the engineers in charge more than 20 years experience in design and product. We had exported to Europe, Asia, Africa, North America, South America, Oceania. Hope to build business relationship with you.
Semi Hollow Rivet Rivet Cold Forging Machine features:
1.The machine has the advantages of fast production speed, small error and high precision, convenient operation and low maintenance rate.
2.The machine specializes in the production of semi-tubular rivet with the latest material hooking system.
Product Parameter (Specification)
|
Model |
RN03-20 |
RN04-40 |
RN05-60 |
RN05-80 |
RN06-90 |
RN06-120 |
RN08-120 |
RN10-120 |
|
Max. Blank Diameter mm |
Φ4 |
Φ5 |
Φ7 |
Φ7 |
Φ9 |
Φ9 |
Φ11 |
Φ13 |
|
Max. Blank Length mm |
20 |
40 |
60 |
80 |
90 |
120 |
120 |
120 |
|
Capacity Pcs/min |
100-120 |
90-100 |
70-90 |
70-90 |
60-80 |
60-80 |
50-70 |
50-60 |
|
Main Die Diameter mm |
Φ20*36 |
Φ32*58 |
Φ34.5*95 |
Φ34.5*98 |
Φ45*120 |
Φ45*150 |
Φ55*160 |
Φ70*160 |
|
Punch Die Diameter mm |
Φ18*50 |
Φ25*65 |
Φ31*75 |
Φ31*80 |
Φ35*100 |
Φ35*100 |
Φ40*120 |
Φ55*150 |
|
Cut-off Die Diameter mm |
Φ13*20 |
Φ15*30 |
Φ19*35 |
Φ19*35 |
Φ24*40 |
Φ24*40 |
Φ28*45 |
Φ35*50 |
|
Cutter Size mm |
6*25*42 |
9*32*70 |
9*35*72 |
9*35*72 |
12*35*77 |
12*35*77 |
12*42*90 |
16*55*115 |
|
Main Motor KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
11 |
|
Weight kg |
624 |
1105 |
2100 |
2340 |
3640 |
3900 |
4160 |
5980 |
|
Volume (L*W*H)/m |
1.40*0.75*0.90 |
2.00*0.85*1.15 |
2.40*1.10*1.25 |
2.40*1.10*1.25 |
2.70*1.40*1.60 |
3.10*1.40*1.60 |
3.70*1.60*1.80 |
4.80*1.80*1.32 |
Machine Details And Finished Products Display

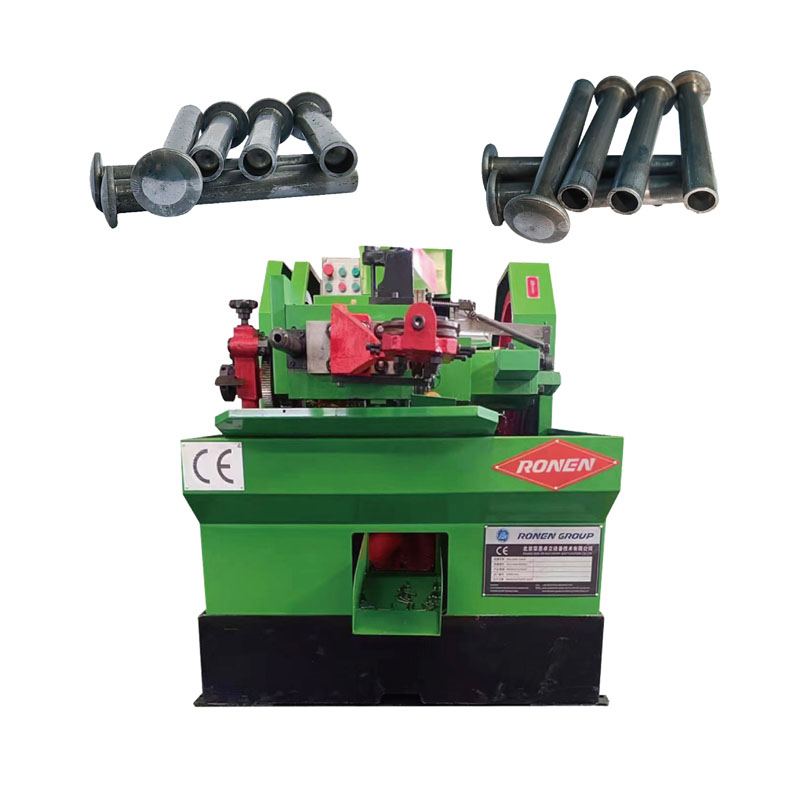

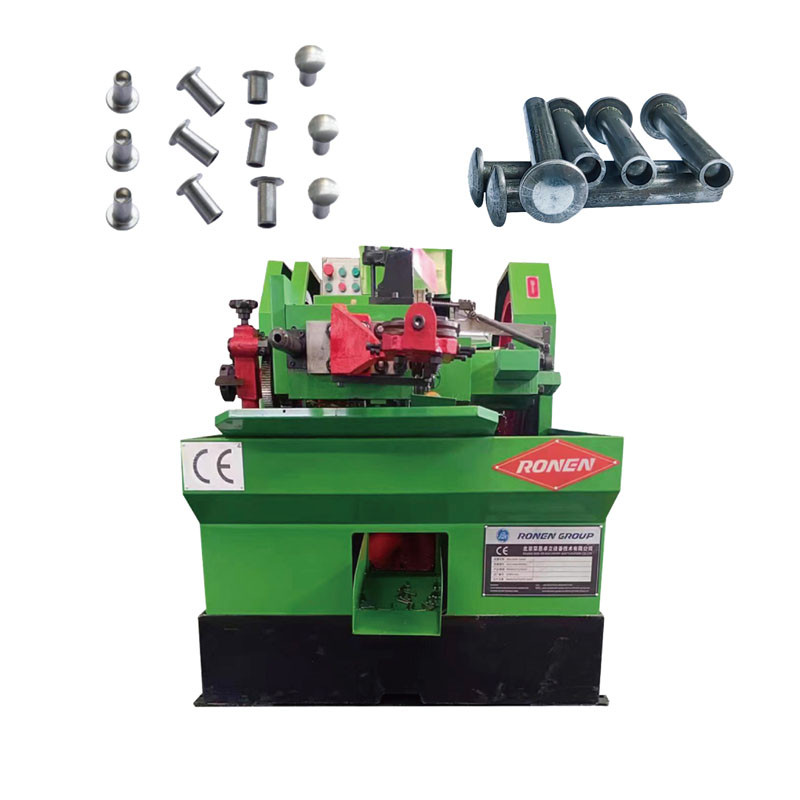

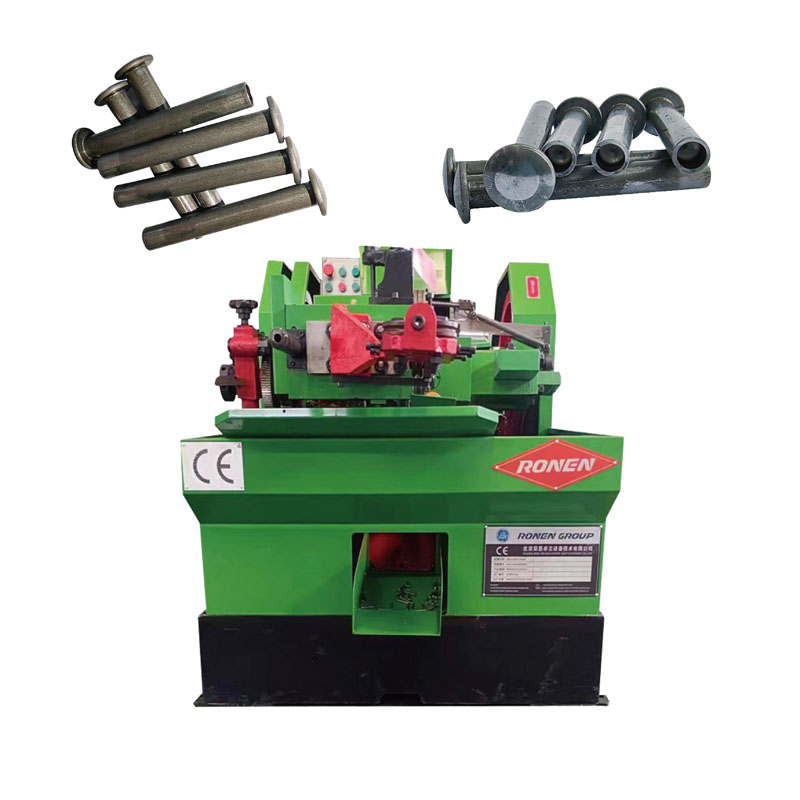

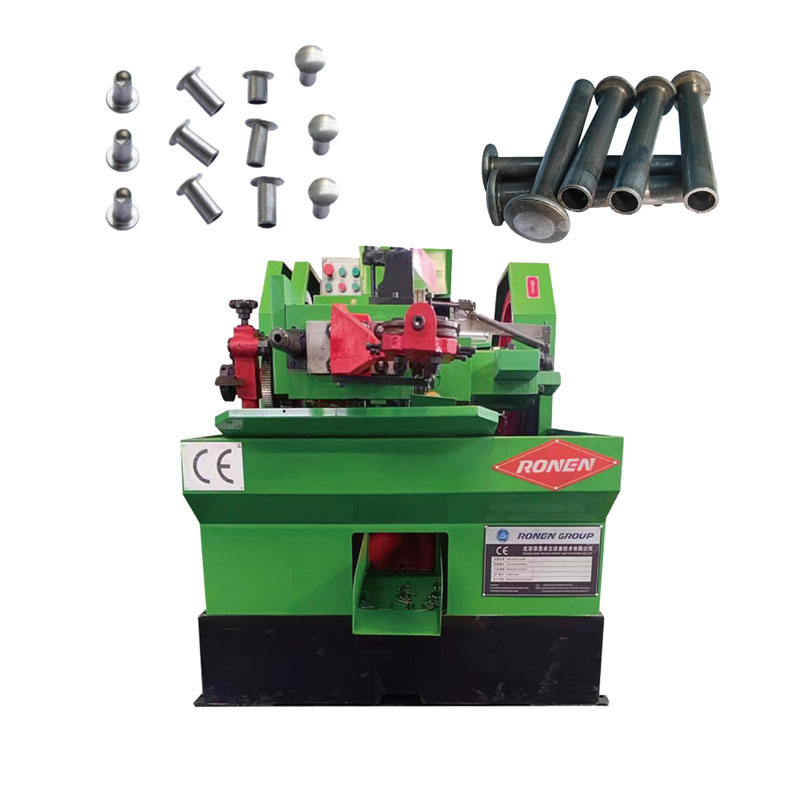

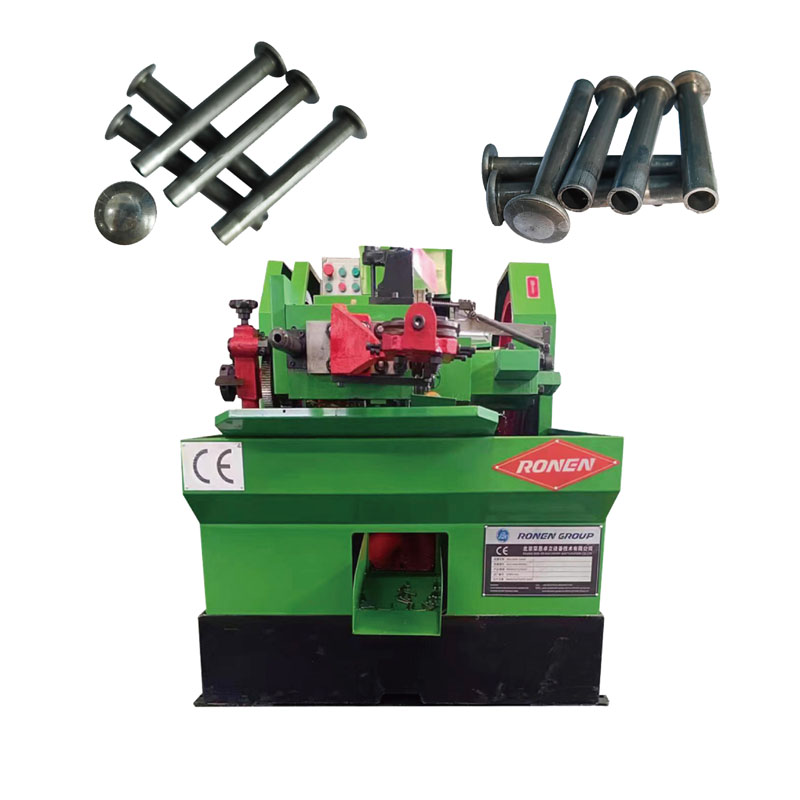

Semi Hollow Rivet Rivet Cold Forging Machine details :
The finished-products:
Product Function Display Video
Semi Hollow Rivet Rivet Cold Forging Machine working video show:
Packing And Delivery
Semi Hollow Rivet Rivet Cold Forging Machine : packing and shipping.
Certifications
Semi Hollow Rivet Rivet Cold Forging Machine : certificate.
FAQ
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
