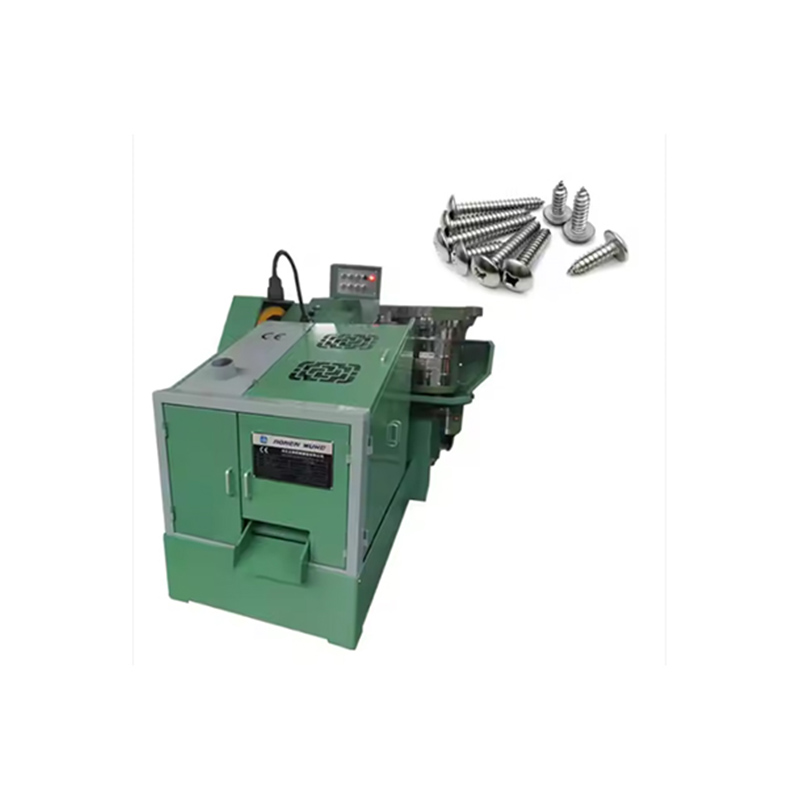

Ronen® Screw Nail Making Machine is connected to the automated production line to achieve full automation of the entire process of loading, processing, and unloading, improving the level of intelligent production and facilitating the modernization and transformation of enterprises.
Screw Nail Making Machine uses a precision transmission system that can process various types of screws. It is adaptable to various materials such as stainless steel and copper to meet the different needs of precision manufacturing scenarios.
The Screw Nail Making Machine uses high-strength alloy molds to withstand the high-pressure impact during wire cold heading, extending the mold replacement cycle; the equipment has a built-in temperature sensor to monitor the motor operating status in real time and automatically shut down for protection when overheating.
The Screw Nail Making Machine 's distinguishing feature is its flexible production. Through its modular mold design, changing molds of different specifications takes only 8-15 minutes. This allows for rapid switching to produce screws ranging from M3 to M16, meeting the demands of diverse, small-batch orders.
Screw Making Machine is widely applicable in various industries, including the automotive manufacturing sector (for producing engine fixing screws), the construction industry (for processing high-strength bolts), the electronics and electrical industry (for making micro-precision screws), etc., meeting diverse demands.
| Model | 3H30A/B | 4H45A/B | 4H55A/B | 6H55A/B | 6H70B | 6H105B | 6H40BL | 8H80B | 8H105B |
| Diameter Range(mm) | 2-3.5 | 2.5-4 | 3-5 | 4-6 | 4-6 | 4-8 | 4-8 | 5-8 | 5-10 |
| Blank Length Max(mm) | 30 | 45 | 50 | 50 | 70/85 | 105/125 | 40 | 80 | 105/125 |
| Max Thread Length(mm) | 30 | 40 | 50 | 45 | 70 | 100 | 40 | 75 | 100 |
| Capacity(pcs/min) | 230-270 | 180-230 | 160-200 | 120-160 | 120-160 | 120-140 | 60 | 90-120 | 90-120 |
| Main Motor(KW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 |
| Height Of Die Pocket(mm) | 25*30*70/80 | 25*45*76/90 | 25*55*85/100 | 25*50*110/125 | 25*70*110/125 | 25*105*110/125 | 40*40*235/260 | 303*80*150/170 | 30*105*150/170 |
| Oil Motor(KW) | 0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.37 | 0.37 |
| Feed Motor(KW) | 0.37 | 0.4 | 0.5 | 0.37 | 0.6 | 0.6 | 0.5 | 0.6 | 0.6 |
| Packing Volume(cm) | 150*91*140 | 170*125*150 | 172*130*150 | 185*125*150 | 195*145*160 | 200*160*160 | 234*140*160 | 245*150*160 | 244*170*160 |
| NW(KG) | 570 | 850 | 1170 | 1400 | 1500 | 1700 | 2500 | 3100 | 3200 |
The core selling point of the Screw Nail Making Machine lies in its "high precision + strong adaptability." It uses an imported servo motor to control feed accuracy and is compatible with both cold heading and hot forging processes. It can process over 10 materials, including carbon steel, stainless steel, and copper alloys, meeting the processing needs of screws of varying strength grades.
