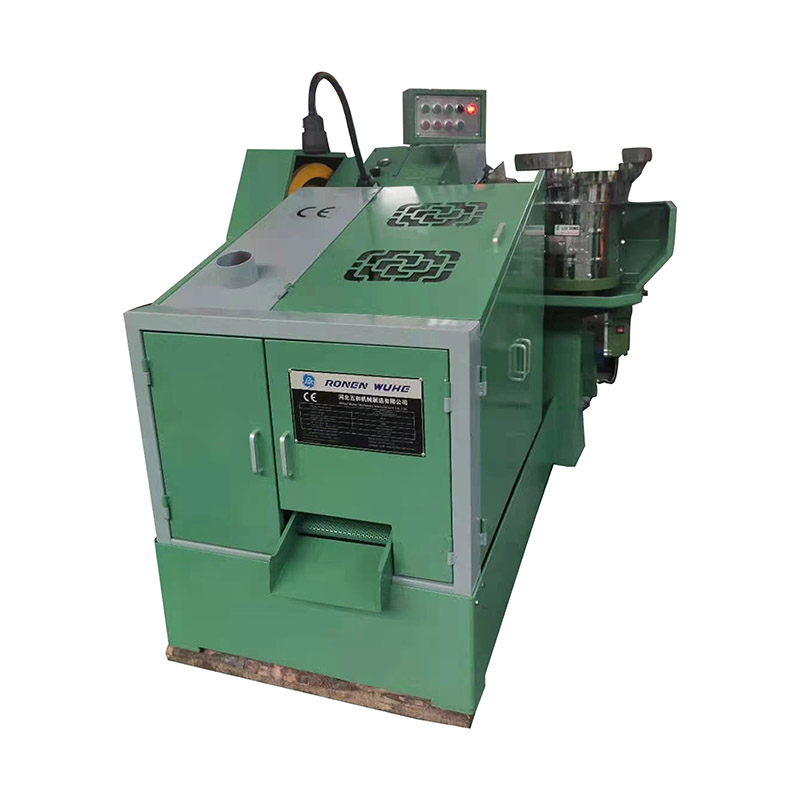

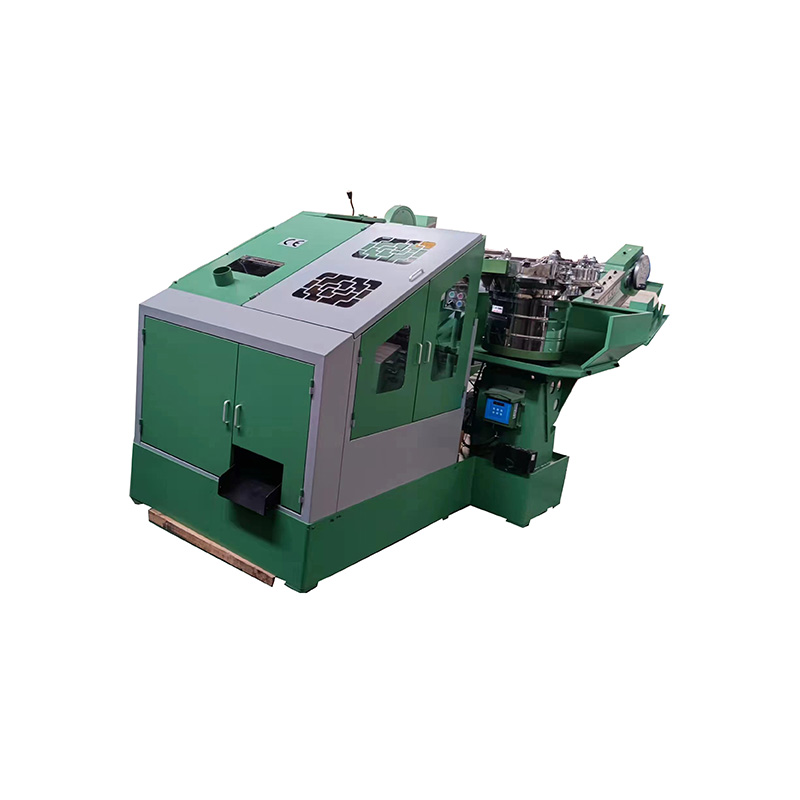

Nut Tapping Machine

The Nut Tapping Machine is specifically designed to create threads on metals, plastics and other materials. The motor provides the power, which drives the tap to rotate. The tap is aligned with the pre-drilled hole and slowly moves down, thereby creating threads on the hole wall.

Product details:

The Nut Tapping Machine utilizes the power of an electric motor to cut internal threads (truing holes) into pre-drilled holes. This device is equipped with a specialized cutting tool called a "tap," which completes hole machining through rotation and downward feed. Its core function focuses on tapping. Compared to traditional manual tapping methods using a wrench, it not only significantly improves efficiency but also demonstrates significant advantages when processing larger apertures or in mass production scenarios, effectively reducing manual labor and ensuring consistent processing.

It uses an electric motor as its power source. This motor drives the gearbox or belt wheel system, reducing the high rotational speed of the motor to a more suitable speed and higher torque to achieve efficient cutting. The output spindle for fixing the tap receives this controlled rotation and the downward force required for thread processing.

The Nut Tapping Machine is equipped with a spindle nose for securely holding taps. Common mechanisms include Morse taper sleeves, spring chuck heads, or tap adapters (such as floating chucks). The drive system must transmit torque to rotate the tap while allowing for slight axial floatation or compensation to prevent breakage when the tap's pitch does not perfectly match the feed rate of the machine.

Product parameters:

Product Features:

The Nut Tapping Machine is equipped with overload protection. If the tap gets stuck, the motor will automatically stop running, preventing the motor from overheating and the tap from breaking. The speed adjustment range is wide, ranging from several dozen revolutions to several hundred revolutions. It is very flexible and can handle different materials. It has a forward-reverse switch. After threading, just press the reverse button and the tap will automatically retract, eliminating the need for manual rotation.
