Product Description

To set up the Multiple Station 14B6S Cold Forging Machine, a set of tools needs to be installed at each workstation. These punches and molds are specifically designed for the parts you want to manufacture. Correct setup is crucial for the machine to produce precise and consistent parts.

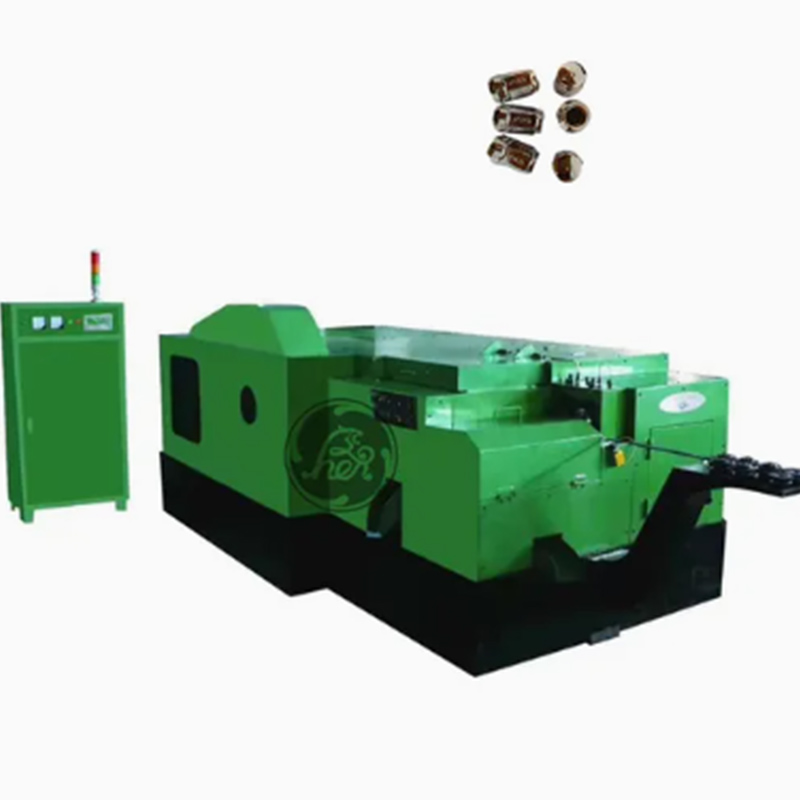

Multiple Station 14B6S Cold Forging Machine

Product details

When operating the Multiple Station 14B6S Cold Forging Machine, simply insert one roll of steel wire. The machine will automatically cut the billet and transfer it from one station to the next. At each station, different tools will process the metal, gradually shaping the final form of the part.

The Multiple Station 14B6S Cold Forging Machine integrates the entire production process. From wire feeding to the ejection of finished parts, all processes are completed in a continuous automated sequence, thus saving space and reducing the need for transportation between processes.

You can manufacture complex parts using the Multiple Station 14B6S Cold Forging Machine. The multi-station operation enables progressive forming. Simple wire blanks can be processed into precision components with threads, flanges or special heads. Maintenance is usually concentrated on the molds of the first few stations. These molds and punches bear the greatest force when forming the metal blanks, so they usually wear out faster than the molds of the later stations.

Product parameters

Specification	Unit	11B	14B	17B	19B	24B	27B	30B	33B	36B	41B
Forging Station	No.	6S/7S	6S/7S	6S/7S	6S/7S	6S/7S	6S/7S	6S/7S	6S/7S	6S/7S	6S/7S
Max Cut-Off Dia	mm	11	15	17	19	24	28	30	33	36	41
Kick-out Length	mm	20/30/40	20/30/40	25/40/60	25/30/40 /60/80	30/60/80	30/40 /60/8 0	30/40/60/8 0	40/60/80/10 0	50/60/80/10 0	50/60/80/10 0
Dies Pitch	mm	50	60	70	80	100	110	120	140	150	165
Forging Power	Ton	60	90	110	135	230	260	300	360	420	650
Production Size		M3-M6	M6-M10	M8-M12	M8-M14	M10-M18	M12- M18	M14-M20	M16-M22	M18-M24	M20-M27
Output	min/pcs	250	180	150	140	70	60	60	90	80	70
Main Motor	Hp	15	20	30	50	75	100	125	150	250	350
Lubrication Motor	Hp	1.5	1.5	1.5	1.5+3	1.5+3	1.5+3	1.5+3	1.5+3	1.5+3	1.5+3
Lubricant	L	700	1000	1100	1200	1700	2300	2000	2400	2400	2400
Approx Weight	Ton	4.5	8	11	14	25	38	42	45	70	73

Product Features

The feature of the Multiple Station 14B6S Cold Forging Machine is "flexible stations and wide material compatibility". The 6-station molds can be replaced according to the requirements of the parts. For making bolts, the head forming mold is installed; for making nuts, the inner hole mold is installed. There is no need to modify the machine structure.
