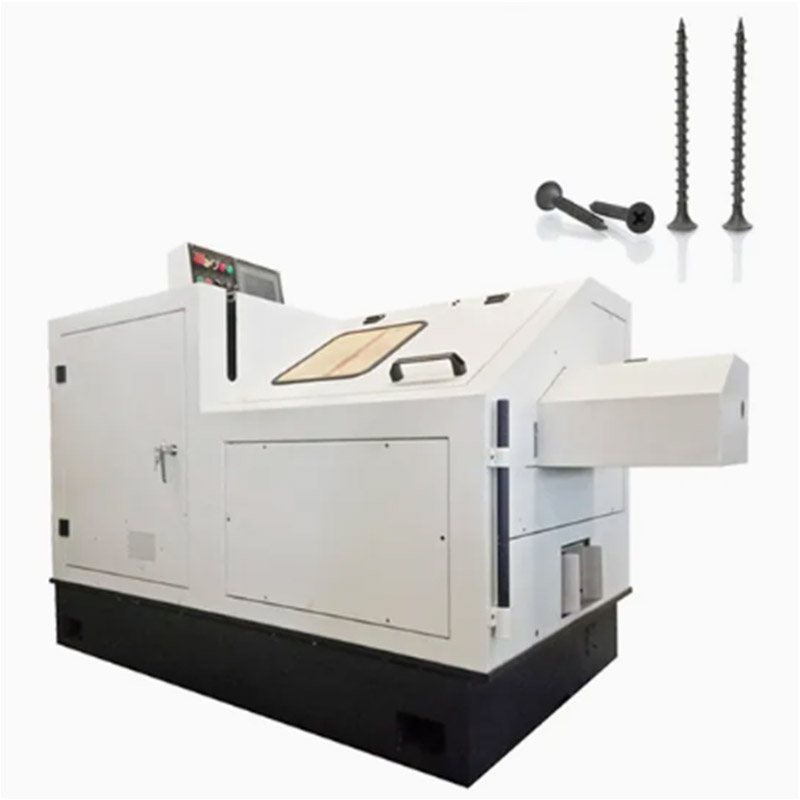

The mild steel screw making machine provided by Ronen® suppliers is highly suitable for processing low-carbon steel, a material that is commonly found in many workshops. It can easily shape the screw head and cut the threads. Loading the steel rods and starting the production is very simple.
The mild steel screw making machine is specifically designed for manufacturing screws made of mild steel. Feed the low-carbon steel wire into the machine, cut it to the preset length, then use the mold to press out the screw head, and roll out the threads through the threading mechanism.
The mild steel screw making machine is used for processing low-carbon steel wire. The wire is fed from the coil into the unwinding machine, straightened to remove any bends, and then precisely cut into blanks of a specific length. Consistent blank size is crucial as it determines the final size of the screws. Low-carbon steel has good ductility and is suitable for subsequent cold forming processes.
An important stage in the production of mild steel screws is the formation of the driving feature. This occurs during the upsetting process or after the upsetting. Special punches can directly form slots, cross slots, star-shaped slots or internal hexagonal slots on the screw head. Precise molds and force control ensure the formation of clean and practical grooves, allowing for the use of standard tools for driving.
The mild steel screw making machine integrates operations such as feeding, cutting, heading, slotting, tapping and chamfering. The conveying mechanism continuously moves the parts between each station. Once the settings are completed, it runs at high speed, producing a large number of identical low-carbon steel screws. The operator monitors the process, handles material changes and performs tooling settings.
Product Parameter (Specification)
Max.6m
Max.8mm
Max. 15mm
Cutting Die
260-300pcs/min.
190-215pcs/min.
180-195pcs/min.
130-150pcs/min.
120-135pcs'min.
85-100pcs/min.
Max. 800 pcs/min.adjustable
130pcs/min.
Specification
X15-30G
X15-37G
X15-50G
X15-63G
X15-76G
X15-100G
Z32G-51
X0650
X0685
X06127
X0860
X08100
Main Motor
3KWW(4HP)
3KWW(4HP)
3KWW(4HP)
3KWW(4HP)
3KWW(4HP)
3KWW(4HP)
5.5KW
4KW
4KW
5.5KW
7.5KW
7.5KW
Diameter
2.3-5mm
2.3-5mm
2.3-5mm
2.3-5mm
2.3-5mm
2.3-5mm
2.3-5mm
Max. 6mm
Max.6m
Max 8mm
Length
6-30mm
6-37mm
6-50mm
6-63mm
6-76mm
75-100mm
Max. 50mm
Max.85m
Max.127m
Max 60mm
Max.100mm
Main Die
∅34.5*50mm
∅34.5*55mm
∅34.5*67mm
∅34.5*80mm
∅34.5*100mm
∅34.5*115mm
∅45*108mm
∅45*108mm
∅45*150mm
∅60*128mm
∅60*128mm
1st Punch
∅31*73mm
∅31*73mm
∅31*73mm
∅31*73mm
∅31*73mm
∅31*73mm
∅36*94mm
∅36*94mm
∅38*107mm
∅38*107mm
2rd Punch
∅31*73mm
∅31*73mm
∅31*73mm
∅31*73mm
∅31*73mm
∅31*73mm
∅36*60mm
∅38*107mm
∅19*35mm
19*35mm
19*35mm
19*35mm
19*35mm
19*35mm
Cuter
10*32*63mm
10*32*63mm
10*32*63mm
10*32*63mm
10*32*63mm
10*32*63mm
10*25mm
10*25mm
10*25mm
10*28mm
10*28mm
Speed
80pcs/min.
70pcs/min.
60-100pcs/min.
60-80pcs/min.
Weight
2300kg
2300kg
2300kg
2300kg
2300kg
2300kg
4200kg
2200kg
2200kg
2500kg
4000kg
4200kg
Selling Points
The selling points of the mild steel screw making machine are very practical. Low-carbon steel has moderate hardness. The machine's molds and pressure parameters are well-matched, making it less likely to encounter material jams during processing, and the production is stable. Secondly, the cost is low. Low-carbon steel materials are not expensive in themselves, and with the low energy consumption of the machinery, the cost of screws can be kept relatively low during mass production.
