You can rest assured to buy Professional China quality Mild Steel Rivet Part Cold Heading Machine from RONEN. RONEN is a Cold Forging Machines (Fastener) manufacturer and supplier in China. We have Taiwan Technology level engineers team, and with strict technical monitoring and production process, the plant area is about 15000+ Square meter.
Mild Steel Rivet Part Cold Heading Machine characteristics:
1.This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mold form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
2.This model is especially for semi-hollow rivet making.
Product Parameter (Specification)
|
Model |
RN03-20 |
RN04-40 |
RN05-60 |
RN05-80 |
RN06-90 |
RN06-120 |
RN08-120 |
RN10-120 |
|
Max. Blank Diameter mm |
Φ4 |
Φ5 |
Φ7 |
Φ7 |
Φ9 |
Φ9 |
Φ11 |
Φ13 |
|
Max. Blank Length mm |
20 |
40 |
60 |
80 |
90 |
120 |
120 |
120 |
|
Capacity Pcs/min |
100-120 |
90-100 |
70-90 |
70-90 |
60-80 |
60-80 |
50-70 |
50-60 |
|
Main Die Diameter mm |
Φ20*36 |
Φ32*58 |
Φ34.5*95 |
Φ34.5*98 |
Φ45*120 |
Φ45*150 |
Φ55*160 |
Φ70*160 |
|
Punch Die Diameter mm |
Φ18*50 |
Φ25*65 |
Φ31*75 |
Φ31*80 |
Φ35*100 |
Φ35*100 |
Φ40*120 |
Φ55*150 |
|
Cut-off Die Diameter mm |
Φ13*20 |
Φ15*30 |
Φ19*35 |
Φ19*35 |
Φ24*40 |
Φ24*40 |
Φ28*45 |
Φ35*50 |
|
Cutter Size mm |
6*25*42 |
9*32*70 |
9*35*72 |
9*35*72 |
12*35*77 |
12*35*77 |
12*42*90 |
16*55*115 |
|
Main Motor KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
11 |
|
Weight kg |
624 |
1105 |
2100 |
2340 |
3640 |
3900 |
4160 |
5980 |
|
Volume (L*W*H)/m |
1.40*0.75*0.90 |
2.00*0.85*1.15 |
2.40*1.10*1.25 |
2.40*1.10*1.25 |
2.70*1.40*1.60 |
3.10*1.40*1.60 |
3.70*1.60*1.80 |
4.80*1.80*1.32 |
Machine Details And Finished Products Display

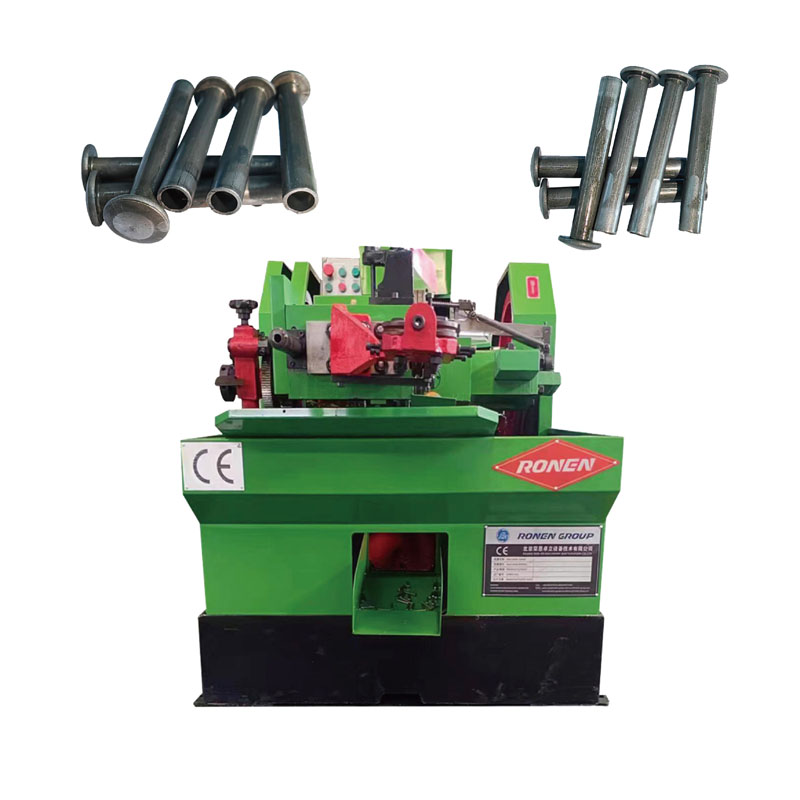

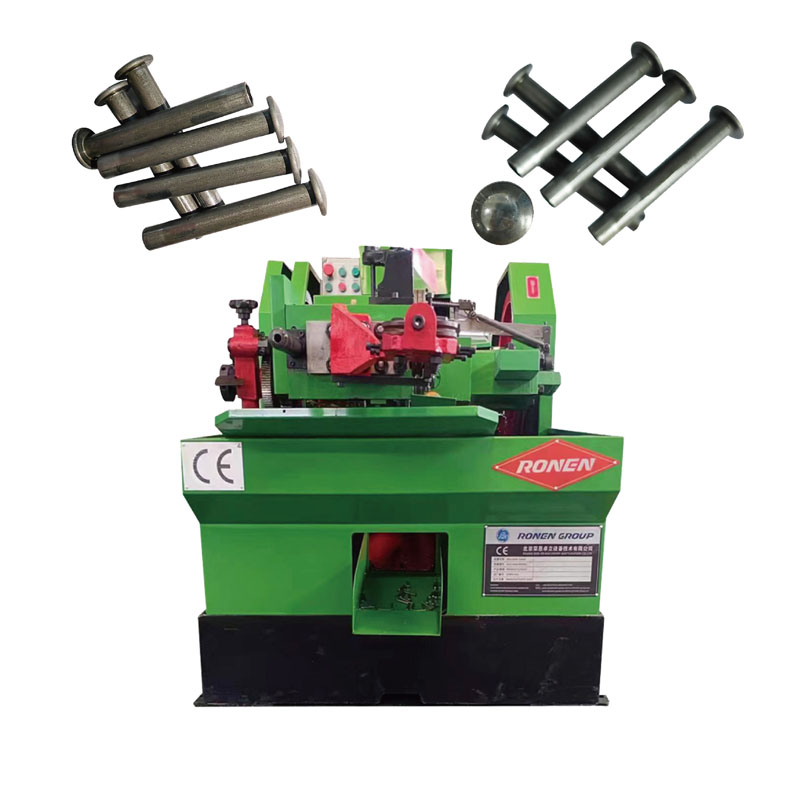

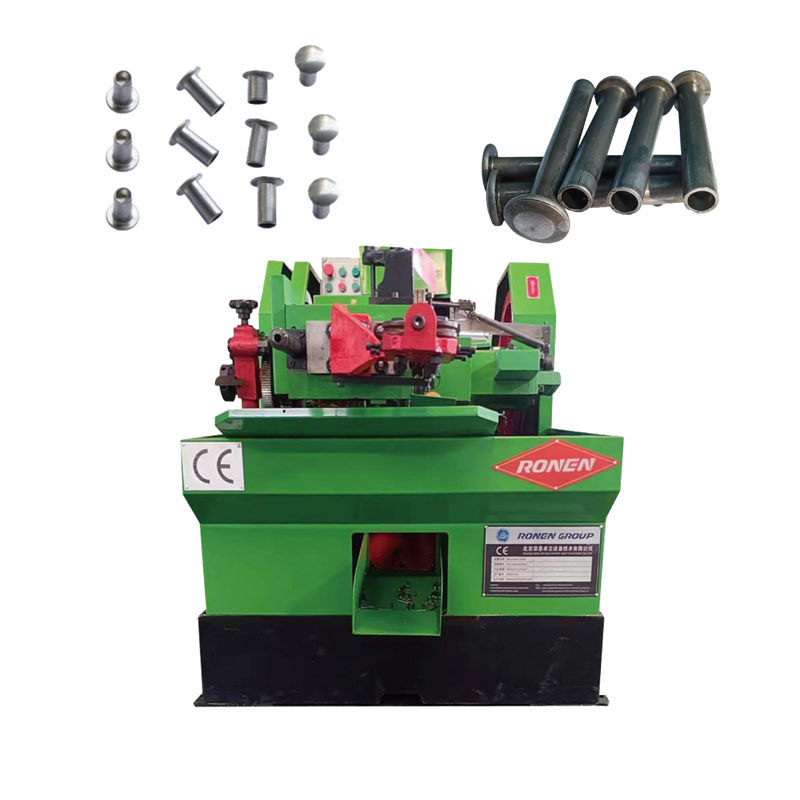

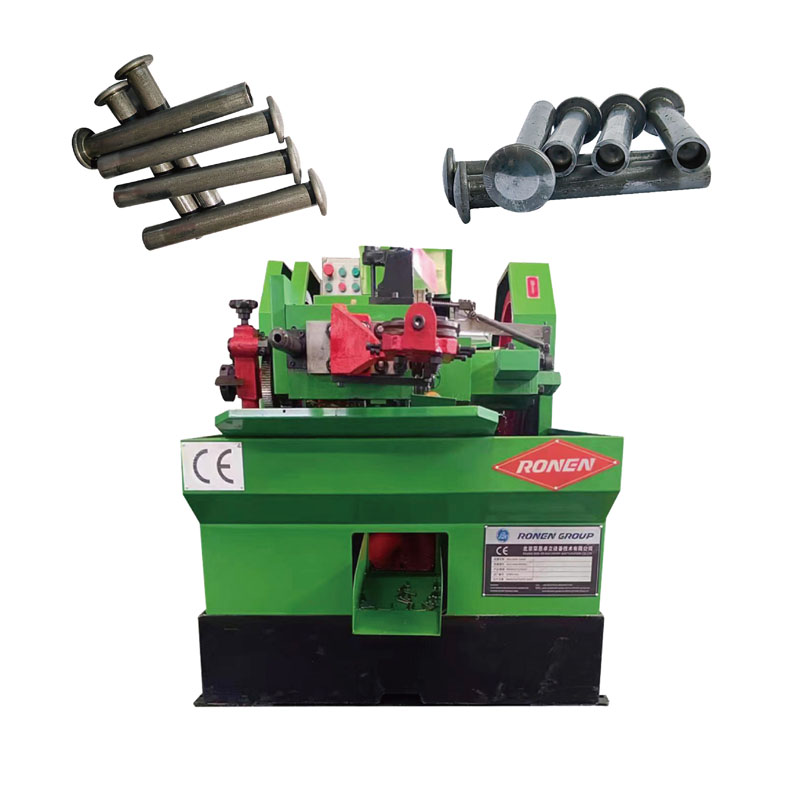

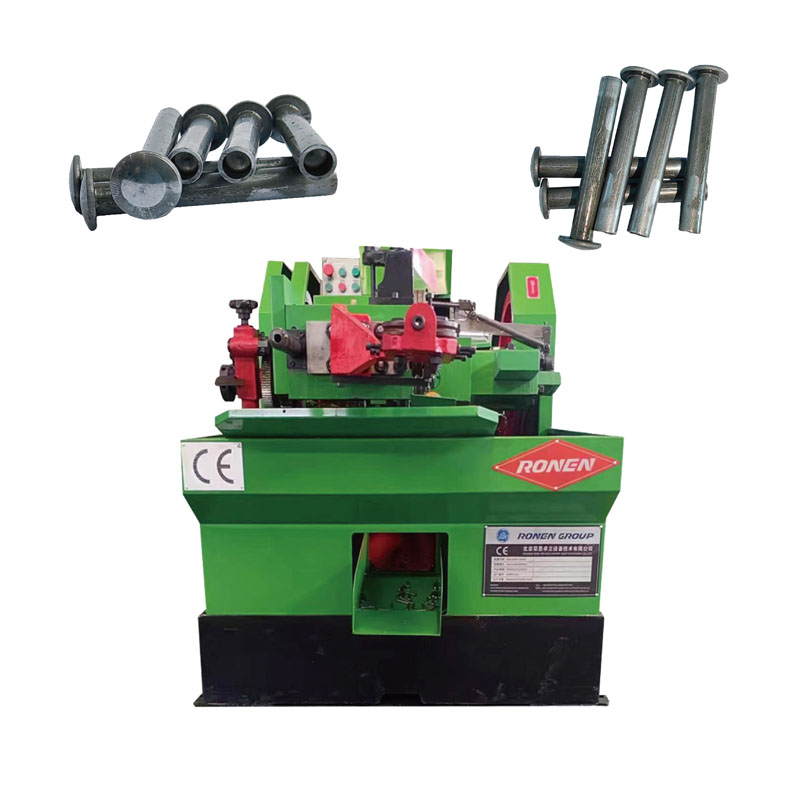

Mild Steel Rivet Part Cold Heading Machine details :
The finished-products:
Product Function Display Video
Mild Steel Rivet Part Cold Heading Machine working video show:
Packing And Delivery
Mild Steel Rivet Part Cold Heading Machine : packing and shipping.
Certifications
Mild Steel Rivet Part Cold Heading Machine : certificate.
FAQ
Q: Can you provide commissioning video and samples?
A: Sure. We will update the information (photos, videos, etc.) with you during and after commissioning , and send samples. The shipment will be arranged only after you confirm it is correct.
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
