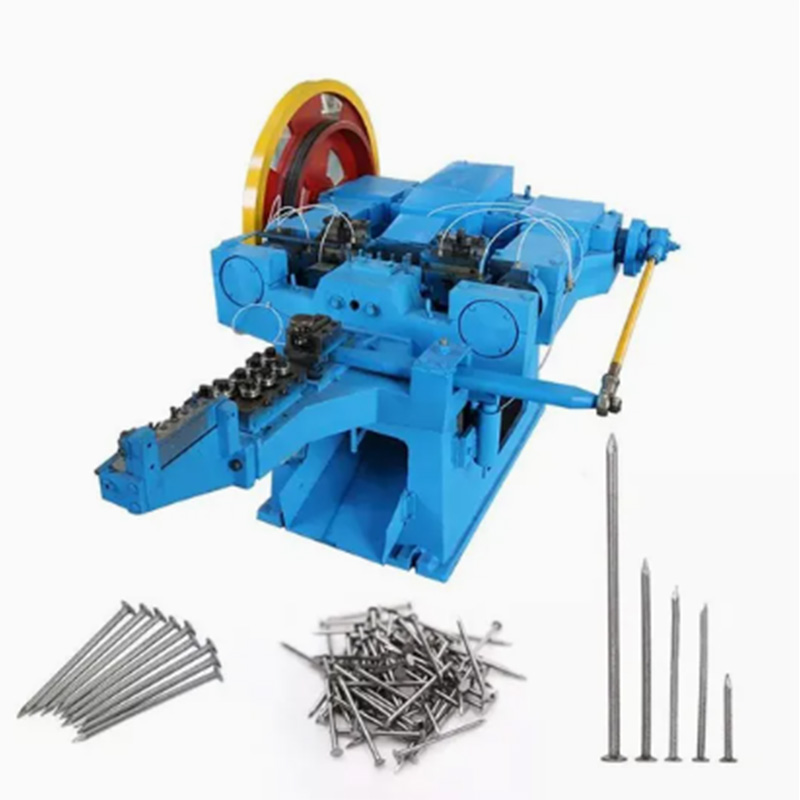

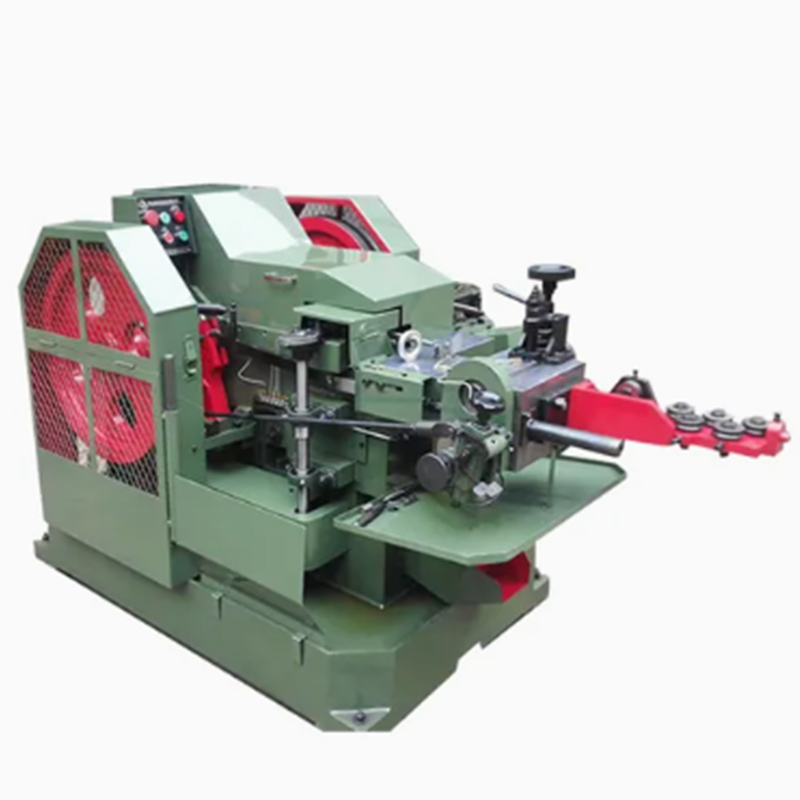

When dealing with large quantities of orders, the high-speed performance of Ronen® Low Noise and High Speed Nails Making Machine can save time. Its operating speed is faster than that of standard nail-making machines, and the nail heads remain intact while the nail tips remain sharp.
The Low Noise and High Speed Nails Making Machine is designed for factories that need to operate multiple machines simultaneously. It features low operating noise and can maintain high-speed production, quickly transforming coils into finished products.
The Ronen® Low Noise and High Speed Nail Making Machine is equipped with special damping materials and a balanced drive system. These features can absorb vibrations and significantly reduce noise levels. Despite operating quietly, the machine maintains a high cycle speed, thereby achieving maximum production output.
The Ronen® Low Noise and High Speed Nails Making Machine is used in small and medium-sized hardware nail-making factories. The machine's high-speed production capacity precisely matches small and medium-sized batch orders. Its low-noise design can meet environmental protection requirements. The quality of the produced nails is stable, and the customer repeat purchase rate is high.
At large construction sites in the suburbs, temporary nail-making stations are set up, and Low Noise and High Speed Nail Making Machines are used. The construction site requires a large quantity of nails and they need to be delivered quickly. For instance, when building scaffolding or fixing protective nets, a large number of 3-inch round nails are needed. The low-noise design will not affect the residential areas or farmlands around the construction site, and the machine is also easy to move.
The Low Noise and High Speed Nail Making Machine has low noise and smooth transmission. The body shell is equipped with a sound insulation cover, and the internal transmission gears have been treated for noise reduction. The feeding wheel is made of rubber, which reduces the friction noise of the wire. The transmission system uses precision bearings, which ensure smooth operation even at high speeds. The processes of forming the head and threading are seamlessly connected, and there will be no jamming of materials.
| Model | RN94-4C | RN94-3C | RN94-2C | RN94-1C | RN94-5.5C | RN94-6A | RN94-7A |
| Max diam | 4.5mm | 3.4mm | 2.8mm | 1.6mm | 5.5mm | 6.0mm | 10mm |
| Min diam | 2.8mm | 1.8mm | 1.2mm | 0.9mm | 4.1mm | 4.1mm | 4.1mm |
| Maxlength | 100mm | 75mm | 50mm | 25mm | 175mm | 200mm | 330mm |
| Min length | 50mm | 25mm | 16mm | 9mm | 100mm | 100mm | 150mm |
| Max speed | 260pcs/min | 280pcs/min | 300pcs/min | 450pcs/min | 130pcs/min | 130pcs/min | 100pcs/min |
| Power | 4kw | 3kw | 2.2kw | 1.5kw | 5.5kw | 11kw | 15kw |
| Weight | 1900kg | 1200kg | 950kg | 560kg | 2500kg | 6000kg | 10000kg |
| Overall dimension |
2350*1500 *1350mm |
2060*1250 *1300mm |
1820*1200 *1100mm |
1500*1200 *1100mm |
2700*1550 *1650mm |
3510*1940 *2015mm |
5000*2300 *2300mm |
