RONEN MACHINERY is one of the famous China Fasteners Machines manufacturers and suppliers. Our factory specializes in manufacturing and customizing of Nut Cold Forming Machines. Welcome to buy Instrument Nut Cold Forming Machine from RONEN MACHINERY. Every request from customers is being replied within 24 hours.
Instrument Nut Cold Forming Machine advantages:
1.The design of the air pressure protection device protects the machine from overload and improves the service life of the mold.
2.At present, nut former model from 11B to 41B, part sizes from M3 to M27(as the standard hex nut sizes), stations from 6 to 12.
3.Produce nuts including：Flange Nuts, Weld Nuts, Square Nuts, Rivets, Hex Nuts, Sleeves, Acorn Nuts, Barrel Nuts, Wing Nuts, Split Nuts, Nylon Nuts, Lock Nuts, Bearing and Auto Fasteners,etc.
Product Parameter (Specification)
| Model |
Unit |
11B-6S |
14B-6S |
19B-6S |
24B-6S |
33B-6S |
41B-6S |
|
Forging Station |
NO. |
6 |
6 |
6 |
6 |
6 |
6 |
|
Across Flats of Nut |
mm |
5.5-12.7 |
10-17 |
14-22 |
17-26 |
24-33 |
30-41 |
|
Suitable Hex Nut |
DIN |
M3-M6 |
M6-M10 |
M8-M14 |
M10-M18 |
M16-M22 |
M20-M27 |
|
Cut-off Dia |
mm |
11 |
16 |
19 |
24 |
31 |
40 |
|
Dies Pitch |
mm |
50 |
60 |
80 |
100 |
140 |
165 |
|
Forging Power |
Ton |
60 |
90 |
135 |
230 |
360 |
450 |
|
Main Motor |
HP |
15 |
20 |
50 |
75 |
150 |
200 |
|
Lubrication Motor |
HP |
1.5 |
1.5 |
1.5 3 |
1.5 3 |
3 |
3 |
|
Installed Quantity |
SET |
(1) |
(2) |
(1) (1) |
(1) (1) |
(2) |
(2) |
|
Lubricant |
L |
700 |
1000 |
1200 |
1700 |
1900 |
2200 |
|
Approx Weight |
Ton |
4.5 |
8 |
14 |
25 |
45 |
72 |
Machine Details And Finished Products Display

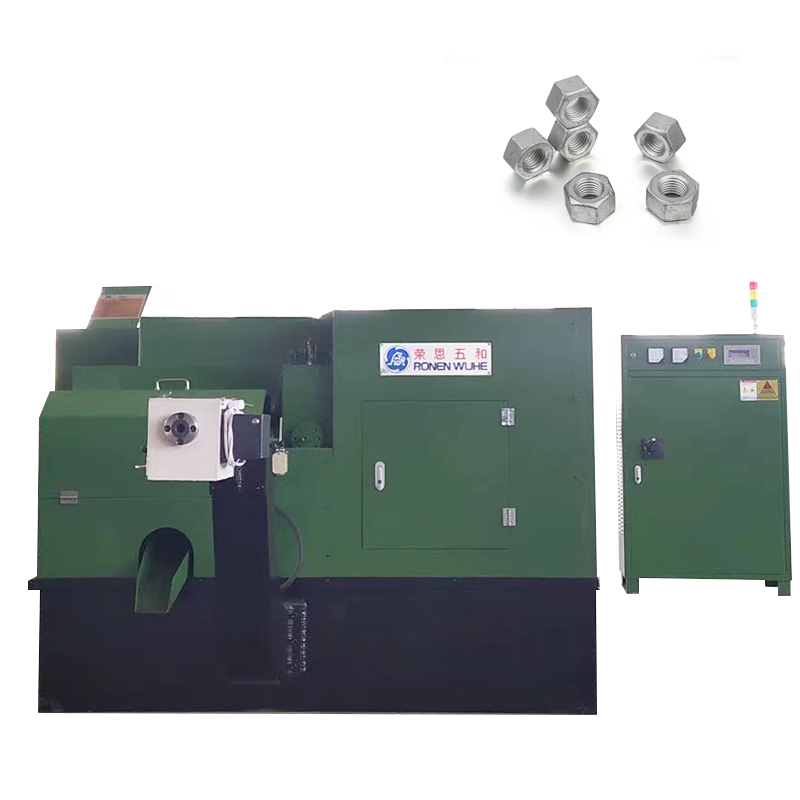

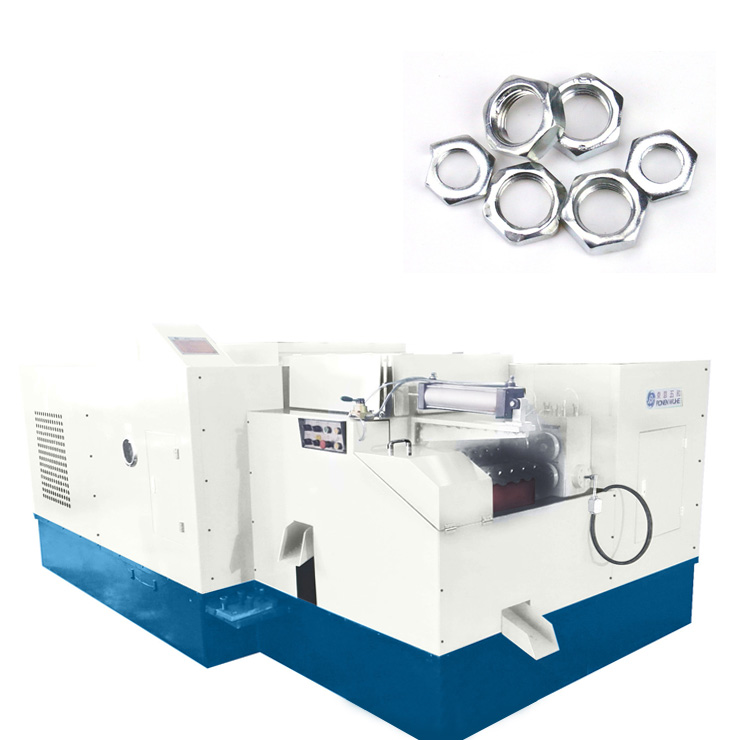

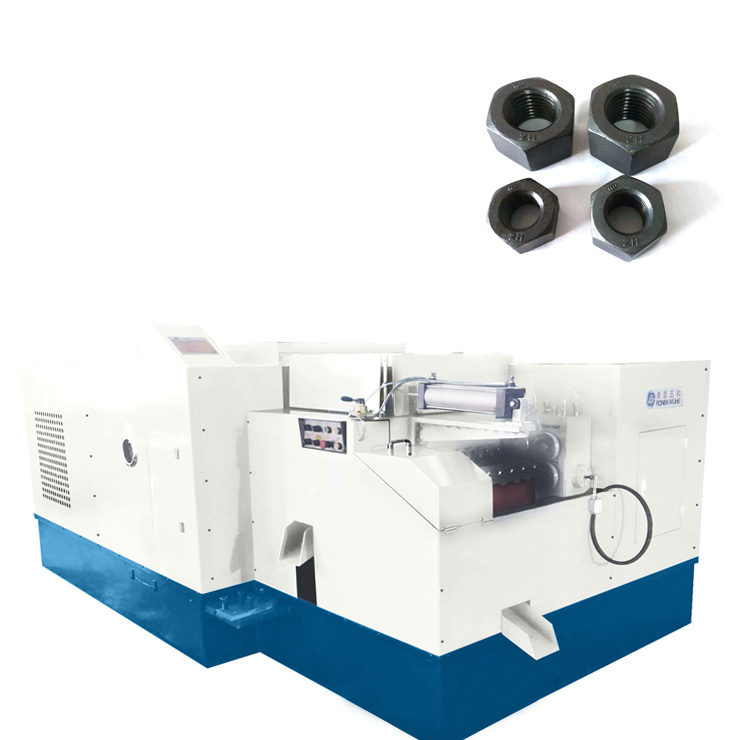

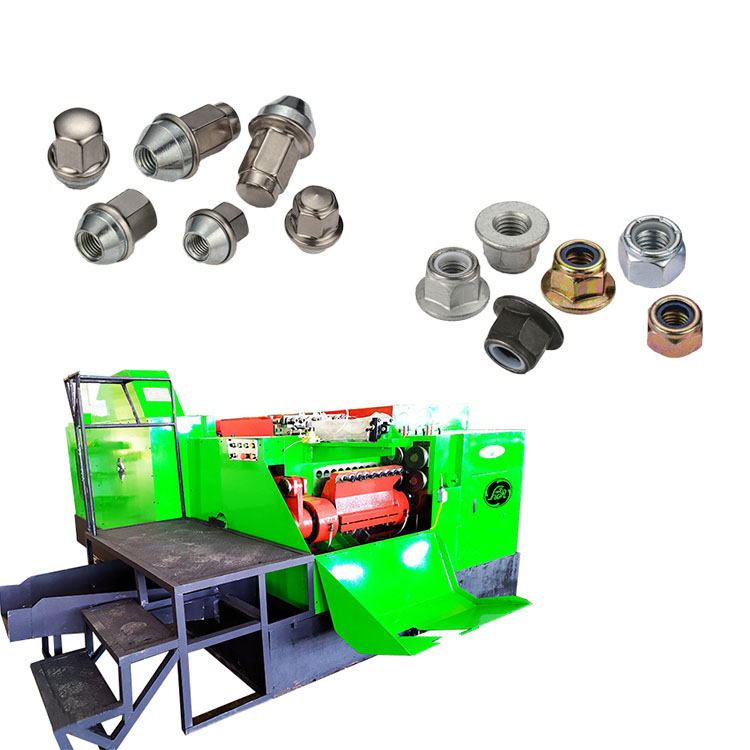

Instrument Nut Cold Forming Machine display:
Finished products display:
Product Function Display Video
Instrument Nut Cold Forming Machine working video.
5.Certifications
Instrument Nut Cold Forming Machine certificate:
FAQ
Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
Q: Can your machinery produce non-standard parts?
A: Yes, we can. We have the design and production engineers with more than 20 years of experience, we can customize according to your drawings or samples.
Q: Does your factory have customers in other countries?
A: We had produced and exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: Can you provide commissioning video and samples?
A: Sure. We will update the information (photos, videos, etc.) with you during and after commissioning, and send samples. The shipment will be arranged only after you confirm it is correct.
