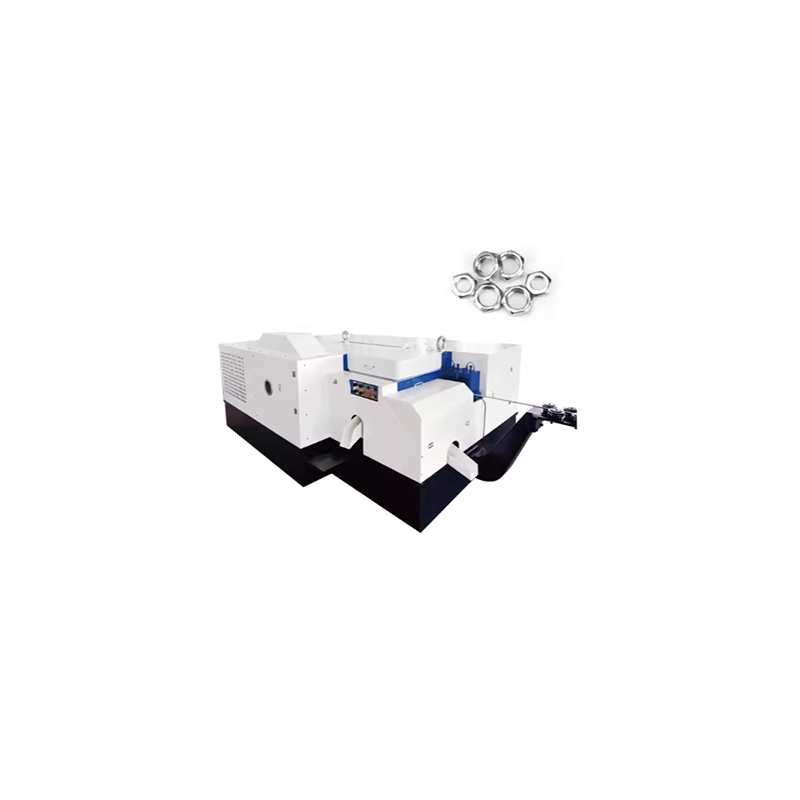

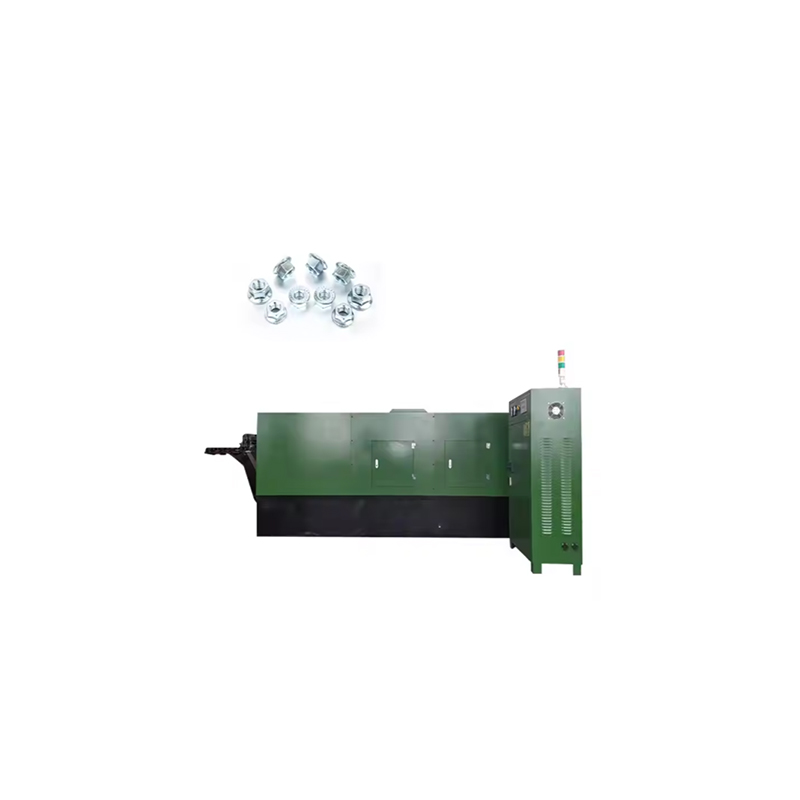

Ronen® High Quality Metal Nut Making Machine is easy to operate, affordable, low in energy consumption, guaranteed in production efficiency, and highly practical. It has a very high praise rate and is your best choice for expanding the scale of nut production.
High Quality Metal Nut Making Machine is an automated equipment specially used for mass production of metal nuts. Usually cold heading process is adopted to make metal wire or bar into nuts through multi-station continuous processing.

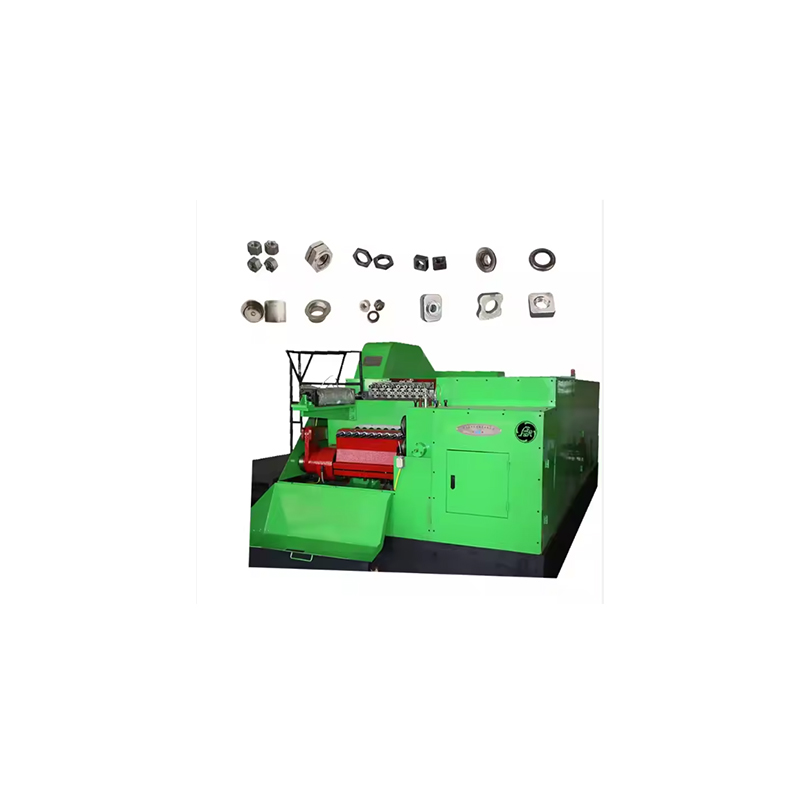

Different models of High Quality Metal Nut Making Machine can produce nuts of various specifications such as hexagonal, square, round, etc., and are suitable for different materials such as carbon steel and stainless steel. Daily maintenance is simple, suitable for small and medium batches to large-scale production needs, and can effectively improve the efficiency of nut processing.
When the Nut Making Machine is running, the bar material is fed through the roller drive, and a series of processes such as feeding, cutting, pressing balls, pressing angles, punching, etc. are automatically completed in sequence. The whole process is completed in one go. The cold heading stations are arranged horizontally, the operation is stable, and the daily maintenance is very convenient, which is particularly suitable for manufacturers to produce nuts in batches.
The purpose of the High Quality Metal Nut Making Machine is very clear, which is to mass-produce metal nuts. It can make both standard sizes and special specifications customized by customers. From small nuts used in furniture assembly to large coarse-thread nuts used in machinery, as long as the parameters are adjusted, they can be made according to requirements.
When operating the High Quality Metal Nut Making Machine, first check the power supply, components and lubrication, and whether the mold is firmly installed. Adjust the feeding speed and punching force according to the nut specifications. After starting the machine, pay attention to whether the feeding and punching are smooth. If there is a jam, the machine should be stopped for cleaning.Wear gloves and goggles during operation and maintenance, do not touch the moving parts, and stop the machine immediately if there is a fault.
| Specification/Moder | Unit | WH-NF 11B-6S | WH-NF 14B-6S | WH-NF 19B-6S | WH-NF 24B-6S | WH-BF 33B-6S | WH-BF 41B-6S |
| Forging Stations | NO. | 6 | 6 | 6 | 6 | 6 | 6 |
| Across Flats Of Nut | mm | 5.5-12.7 | 10-17 | 14-22 | 17-26 | 24-33 | 30-41 |
| Suitable Hex Nut | DIN | M3-M6 | M6-M10 | M8-M14 | M10-M18 | M16-M22 | M20-M27 |
| Cut-off Dia | mm | 11 | 16 | 19 | 24 | 31 | 40 |
| Dies Pitch | mm | 50 | 60 | 80 | 100 | 140 | 165 |
| Forging Power | Ton | 60 | 90 | 135 | 230 | 360 | 450 |
| Main Motor | HP | 15 | 20 | 50 | 75 | 150 | 200 |
| Lubrication Motor | HP | 1.5 | 1.5 | 1.5 3 | 1.5 3 | 3 | 3 |
| Installed Quantity | SET | (1) | (2) | (1)(1) |
(1)(1) |
(2) | (2) |
| Lubricant | L | 700 | 1000 | 1200 | 1700 | 1900 | 2200 |
| Approx Weight | Ton | 4.5 | 8 | 14 | 25 | 45 | 72 |
