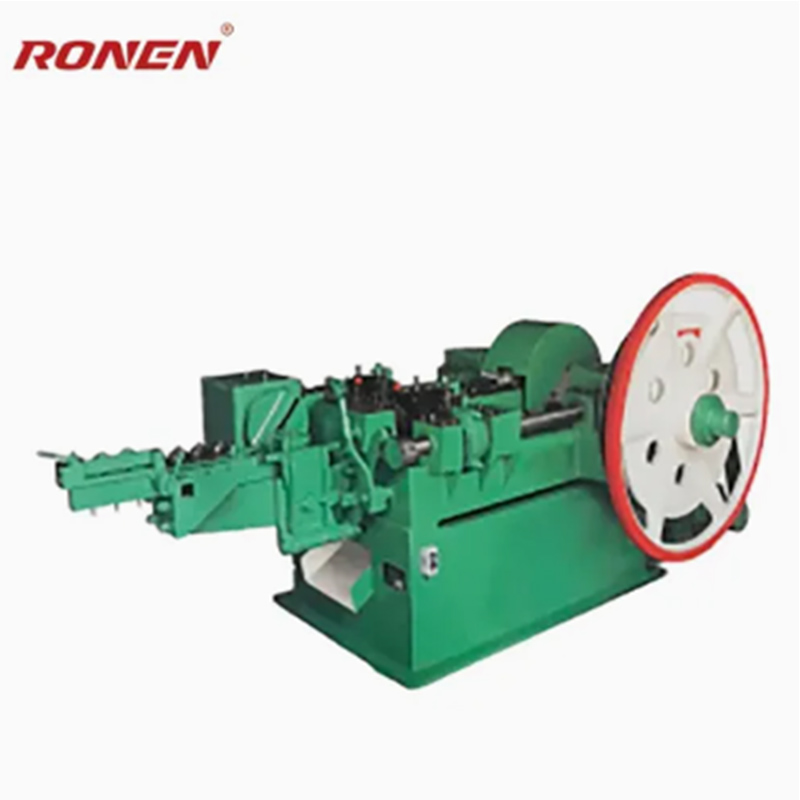

The Ronen®High Capacity Vibration Resistant Nail Making Machine can produce nails in large quantities and operates smoothly. It includes wire cutting, nail head shaping and sharpening, eliminating the need for complicated procedures. Just insert the wire, set the length, and it will run stably.
TheHigh Capacity Vibration Resistant Nail Making Machine processes the wire into finished nails through continuous cold heading and threading processes. The machine body is equipped with a shock-proof structure, ensuring that it won't shake violently during high-speed operation.
TheHigh Capacity Vibration Resistant Nail Making Machine is shock-resistant. The fuselage is cast with thick cast iron, and four shock-absorbing springs are installed at the bottom. During high-speed operation, the shaking amplitude of the fuselage is controlled within 2 millimeters, ensuring that it will not shift or damage the ground.
High-Capacity Vibration-Resistant Nail Making Machine is used to produce building-grade cement nails. The cement nails used for building walls and fixing wooden boards on construction sites are all produced by it. The anti-vibration design ensures that the thickness and length of each nail are within a small tolerance range, making them suitable for large-scale use in construction sites.
TheHigh Capacity Vibration Resistant Nail Making Machine can produce nails at high speed using metal wires. It is specially designed for continuous operation and has minimal vibration. This stability enables it to maintain the precise size of nails throughout the long production process, whether it is for ordinary nails or special types of nails.
| Model | RN-2D | RN-3D | RN-4D | RN-4E |
| Max Dia of Nail | 2.4mm | 3.4mm | 4.1mm | 4.0mm |
| Min Dia of Nail | 1.1mm | 1.8mm | 2.5mm | 2.5mm |
| Max Length of Nail | 50mm | 75mm | 100mm | 95mm |
| Min Length of Nail | 10mm | 13mm | 50mm | 40mm |
| Speed | 700pcs/min | 550pcs/min | 800pcs/min | 720pcs/min |
| Motor Power | 5kw | 7kw | 10kw | 7.5kw |
| Weight | 2200kg | 2500kg | 3100kg | 3000kg |
| Dimension | 1700*1000*1300 | 2300*1220*1400 | 2900*1800*1250 | 2000*1400*1100 |
High-Capacity Vibration-Resistant Nail Making Machine is designed for large-scale hardware manufacturing plants. They are suitable for large order requirements. The anti-vibration design ensures that the nail sizes for mass production are uniform, and it will not cause an increase in the defective rate due to equipment shaking. The supply stability is strong.
