As the professional manufacture, RONEN is willing to provide you Fasten Nut Cold Forging Machine. And RONEN will offer you the best after-sale service. If you interested in Taiwan Technology Fasten Nut Cold Forging Machine products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Fasten Nut Cold Forging Machine features:
1.The design of the closed protective cover greatly reduces the pollution of the hot oil mist to the working environment.
2.The design of the air pressure protection device protects the machine from overload and improves the service life of the mold.
3.While ensuring the convenient commissioning of the machine, safety protection doors are set up in many places, emphasizing the standardized operation of the operators to ensure the safety of the personnel.
Product Parameter (Specification)
| Model |
Unit |
11B-6S |
14B-6S |
19B-6S |
24B-6S |
33B-6S |
41B-6S |
|
Forging Station |
NO. |
6 |
6 |
6 |
6 |
6 |
6 |
|
Across Flats of Nut |
mm |
5.5-12.7 |
10-17 |
14-22 |
17-26 |
24-33 |
30-41 |
|
Suitable Hex Nut |
DIN |
M3-M6 |
M6-M10 |
M8-M14 |
M10-M18 |
M16-M22 |
M20-M27 |
|
Cut-off Dia |
mm |
11 |
16 |
19 |
24 |
31 |
40 |
|
Dies Pitch |
mm |
50 |
60 |
80 |
100 |
140 |
165 |
|
Forging Power |
Ton |
60 |
90 |
135 |
230 |
360 |
450 |
|
Main Motor |
HP |
15 |
20 |
50 |
75 |
150 |
200 |
|
Lubrication Motor |
HP |
1.5 |
1.5 |
1.5 3 |
1.5 3 |
3 |
3 |
|
Installed Quantity |
SET |
(1) |
(2) |
(1) (1) |
(1) (1) |
(2) |
(2) |
|
Lubricant |
L |
700 |
1000 |
1200 |
1700 |
1900 |
2200 |
|
Approx Weight |
Ton |
4.5 |
8 |
14 |
25 |
45 |
72 |
Machine Details And Finished Products Display

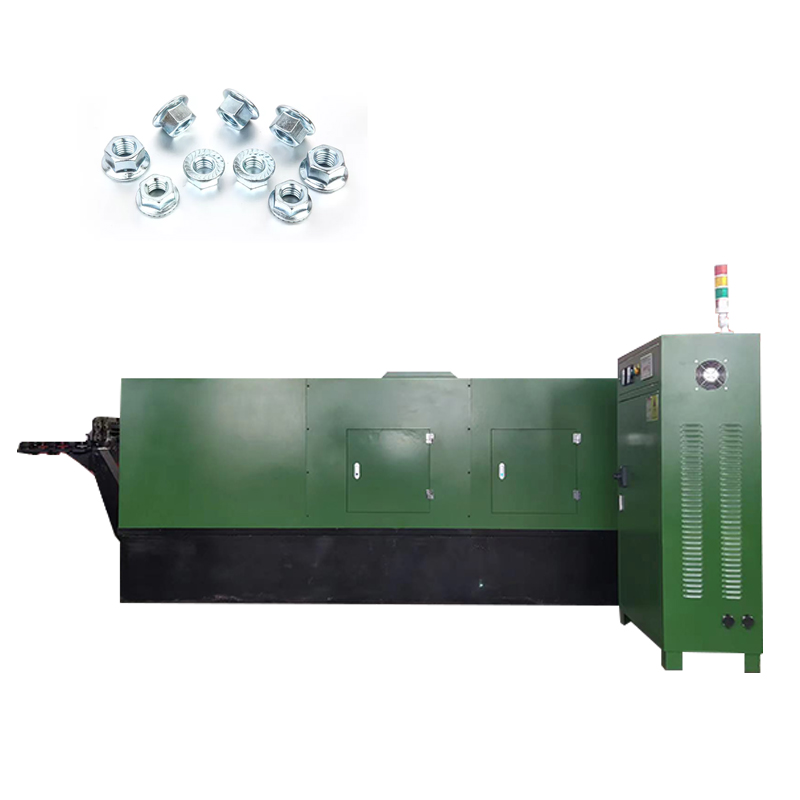

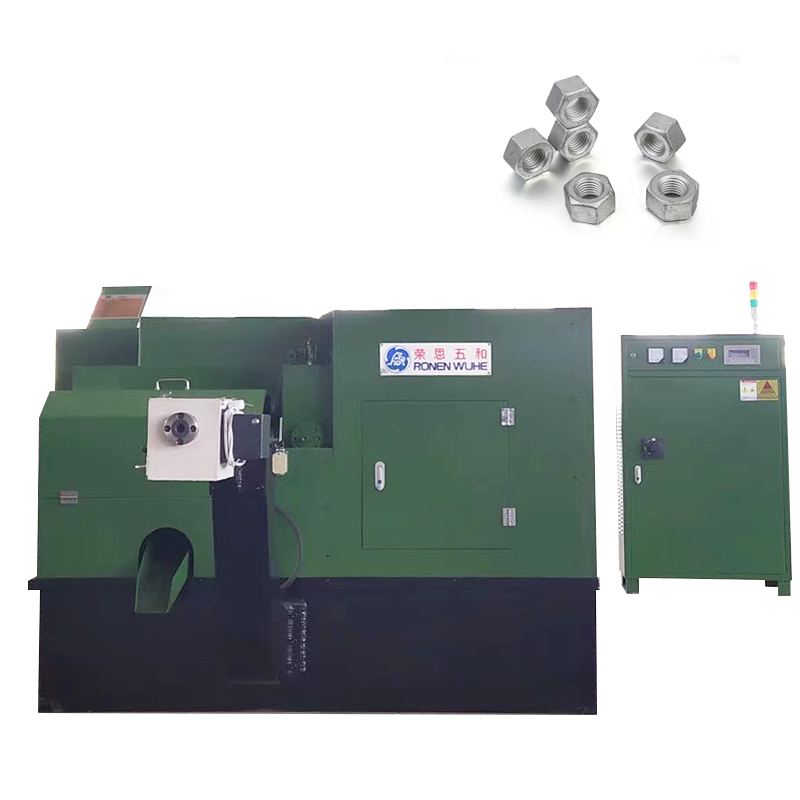

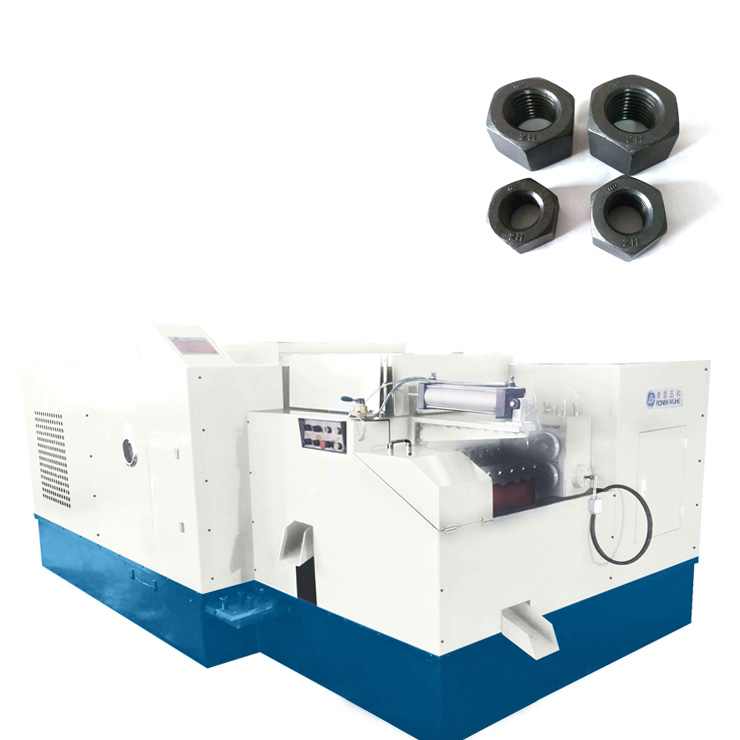

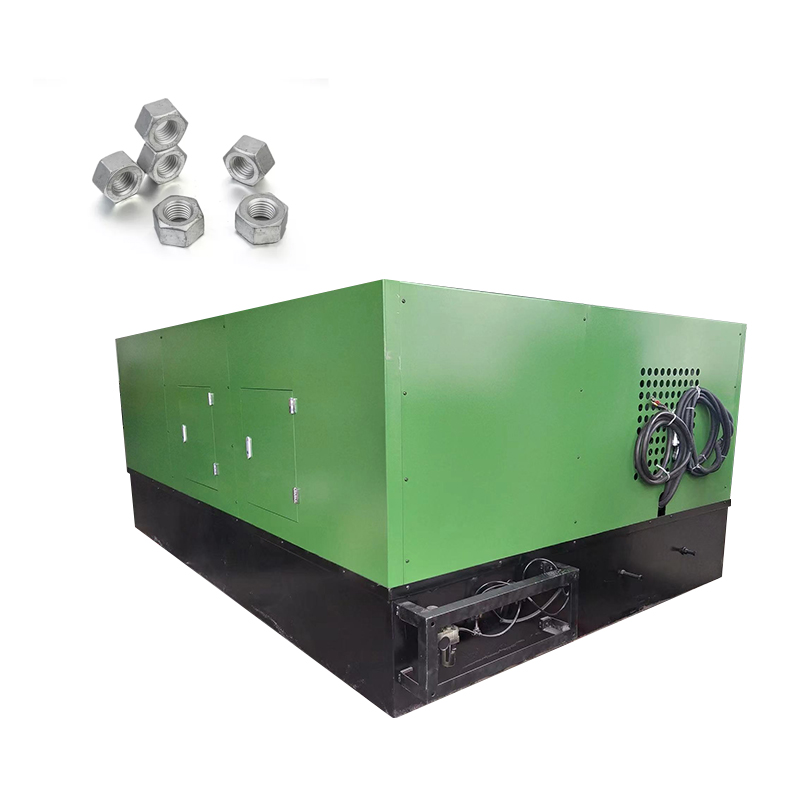

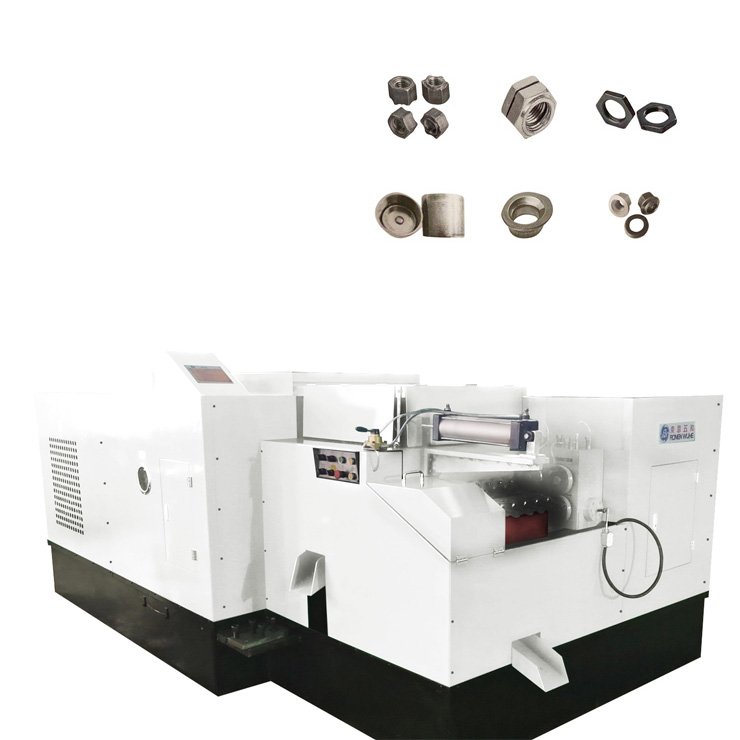

Fasten Nut Cold Forging Machine display:
Finished products display:
Product Function Display Video
Fasten Nut Cold Forging Machine working video.
5.Certifications
Fasten Nut Cold Forging Machine certificate:
FAQ
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
Q: How long can you provide the warranty?
A: Our machine has a one-year warranty.
Q: What can you buy from us?
A:Cold heading machine, Cold forging machine, Bolts nuts machine, Screws machine, Threading machine, etc.
