Professional China Quality Chain Pin Nut Part Cold Heading Machine is produced by RONEN MACHINERY. RONEN MACHINERY is one of the top manufacturers in China of Fasteners Making Machines. We hope to help you purchase the best suitable Chain Pin Nut Part Cold Heading Machine. Welcome new and old customers to continue to cooperate with us to create a better future together!
Chain Pin Nut Part Cold Heading Machine characteristics:
1.The design of the air pressure protection device protects the machine from overload and improves the service life of the mold.
2.While ensuring the convenient commissioning of the machine, safety protection doors are set up in many places, emphasizing the standardized operation of the operators to ensure the safety of the personnel.
Product Parameter (Specification)
| Model |
Unit |
11B-6S |
14B-6S |
19B-6S |
24B-6S |
33B-6S |
41B-6S |
|
Forging Station |
NO. |
6 |
6 |
6 |
6 |
6 |
6 |
|
Across Flats of Nut |
mm |
5.5-12.7 |
10-17 |
14-22 |
17-26 |
24-33 |
30-41 |
|
Suitable Hex Nut |
DIN |
M3-M6 |
M6-M10 |
M8-M14 |
M10-M18 |
M16-M22 |
M20-M27 |
|
Cut-off Dia |
mm |
11 |
16 |
19 |
24 |
31 |
40 |
|
Dies Pitch |
mm |
50 |
60 |
80 |
100 |
140 |
165 |
|
Forging Power |
Ton |
60 |
90 |
135 |
230 |
360 |
450 |
|
Main Motor |
HP |
15 |
20 |
50 |
75 |
150 |
200 |
|
Lubrication Motor |
HP |
1.5 |
1.5 |
1.5 3 |
1.5 3 |
3 |
3 |
|
Installed Quantity |
SET |
(1) |
(2) |
(1) (1) |
(1) (1) |
(2) |
(2) |
|
Lubricant |
L |
700 |
1000 |
1200 |
1700 |
1900 |
2200 |
|
Approx Weight |
Ton |
4.5 |
8 |
14 |
25 |
45 |
72 |
Machine Details And Finished Products Display

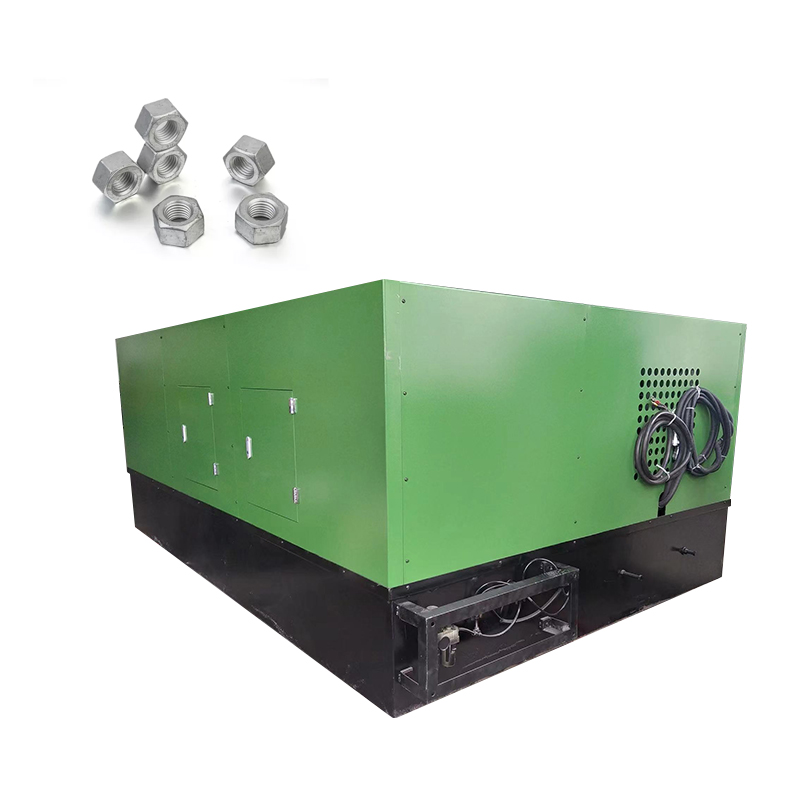

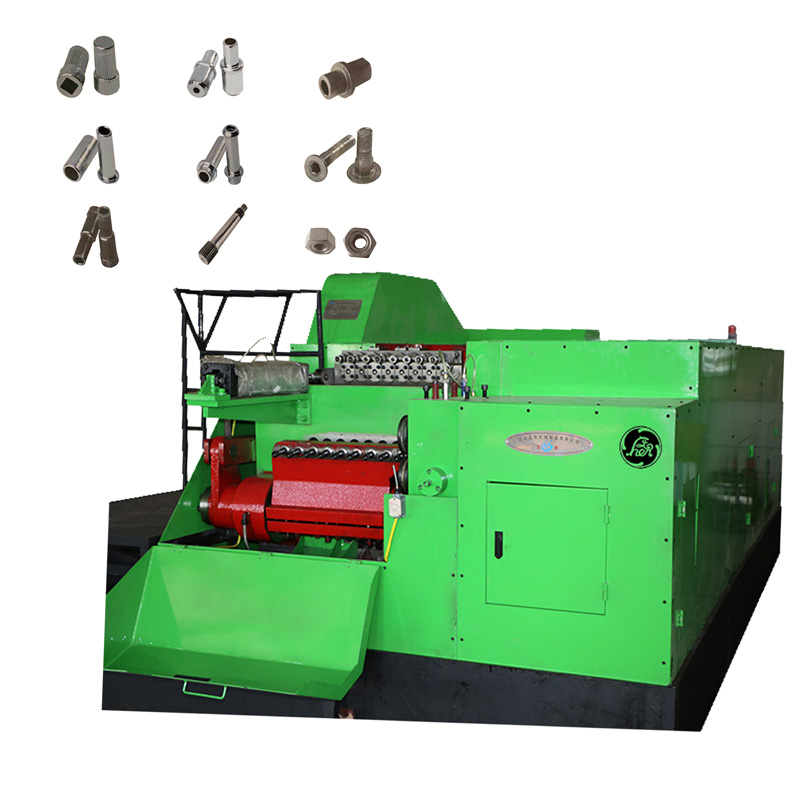

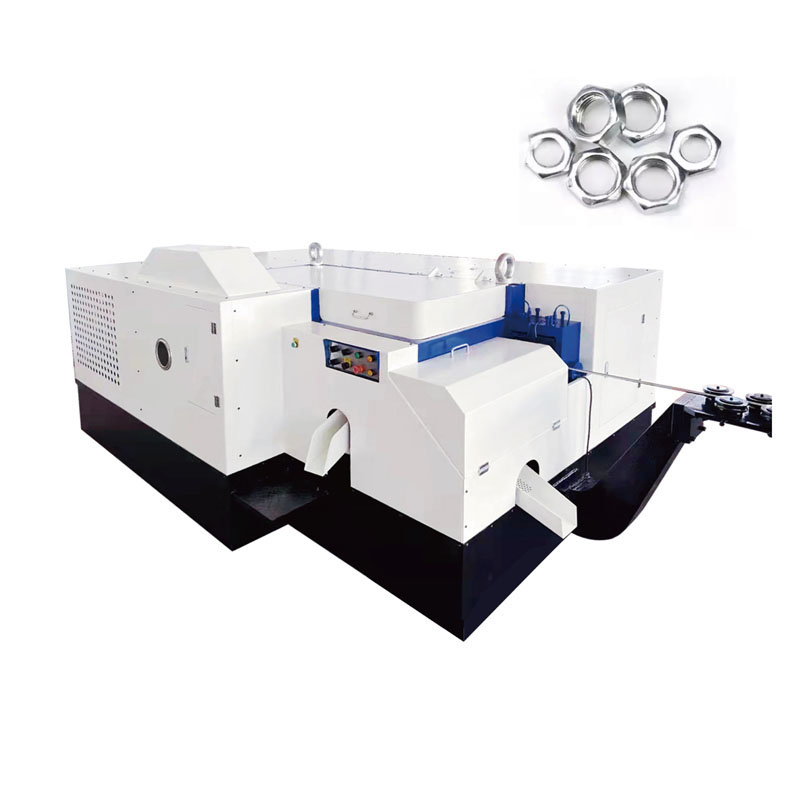

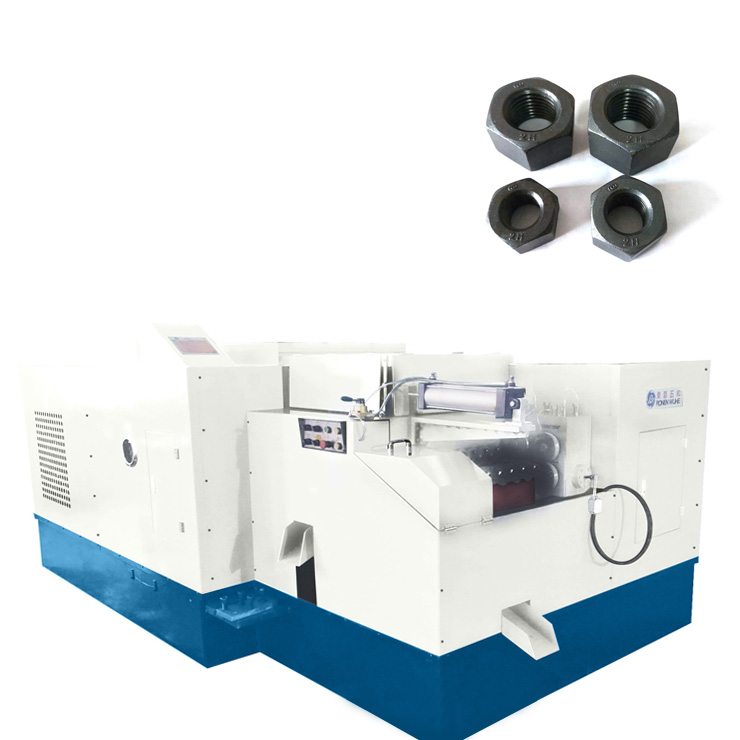

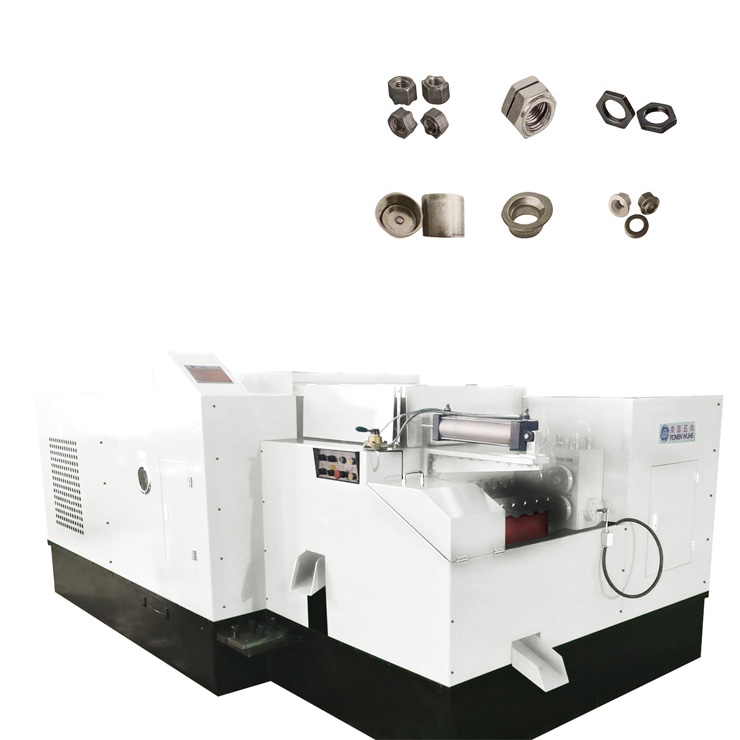

Chain Pin Nut Part Cold Heading Machine display:
Finished products display:
Product Function Display Video
Chain Pin Nut Part Cold Heading Machine working video.
5.Certifications
Chain Pin Nut Part Cold Heading Machine certificate:
FAQ
Q:Do you provide custom services?
A:Yes,we customize the machine according to your samples or drawings.
Q: What can you buy from us?
A:Cold heading machine, Cold forging machine, Bolts nuts machine, Screws machine, Threading machine, etc.
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
