With years of experience in production Blind Rivet Rivet Part Former, RONEN MACHINERY can supply a wide range of Rivet Part Former. High quality Blind Rivet Rivet Part Former can meet many applications. If you need, please get our online timely service about Blind Rivet Rivet Part Former. In addition to the product list below, you can also customize your own unique Rivet Part Former according to your specific needs.
Blind Rivet Rivet Part Former characteristics :
1.The machine specializes in the production of semi-tubular rivet with the latest material hooking system.
2.The machine uses the cold heading method. Double - die upsetting was carried out on the wire. By one machine to complete the feeding, straightening, cutting, forming, discharging. This machine is particularly suitable for the manufacture of semi-hollow rivet.
Product Parameter (Specification)
|
Model |
RN03-20 |
RN04-40 |
RN05-60 |
RN05-80 |
RN06-90 |
RN06-120 |
RN08-120 |
RN10-120 |
|
Max. Blank Diameter mm |
Φ4 |
Φ5 |
Φ7 |
Φ7 |
Φ9 |
Φ9 |
Φ11 |
Φ13 |
|
Max. Blank Length mm |
20 |
40 |
60 |
80 |
90 |
120 |
120 |
120 |
|
Capacity Pcs/min |
100-120 |
90-100 |
70-90 |
70-90 |
60-80 |
60-80 |
50-70 |
50-60 |
|
Main Die Diameter mm |
Φ20*36 |
Φ32*58 |
Φ34.5*95 |
Φ34.5*98 |
Φ45*120 |
Φ45*150 |
Φ55*160 |
Φ70*160 |
|
Punch Die Diameter mm |
Φ18*50 |
Φ25*65 |
Φ31*75 |
Φ31*80 |
Φ35*100 |
Φ35*100 |
Φ40*120 |
Φ55*150 |
|
Cut-off Die Diameter mm |
Φ13*20 |
Φ15*30 |
Φ19*35 |
Φ19*35 |
Φ24*40 |
Φ24*40 |
Φ28*45 |
Φ35*50 |
|
Cutter Size mm |
6*25*42 |
9*32*70 |
9*35*72 |
9*35*72 |
12*35*77 |
12*35*77 |
12*42*90 |
16*55*115 |
|
Main Motor KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
11 |
|
Weight kg |
624 |
1105 |
2100 |
2340 |
3640 |
3900 |
4160 |
5980 |
|
Volume (L*W*H)/m |
1.40*0.75*0.90 |
2.00*0.85*1.15 |
2.40*1.10*1.25 |
2.40*1.10*1.25 |
2.70*1.40*1.60 |
3.10*1.40*1.60 |
3.70*1.60*1.80 |
4.80*1.80*1.32 |

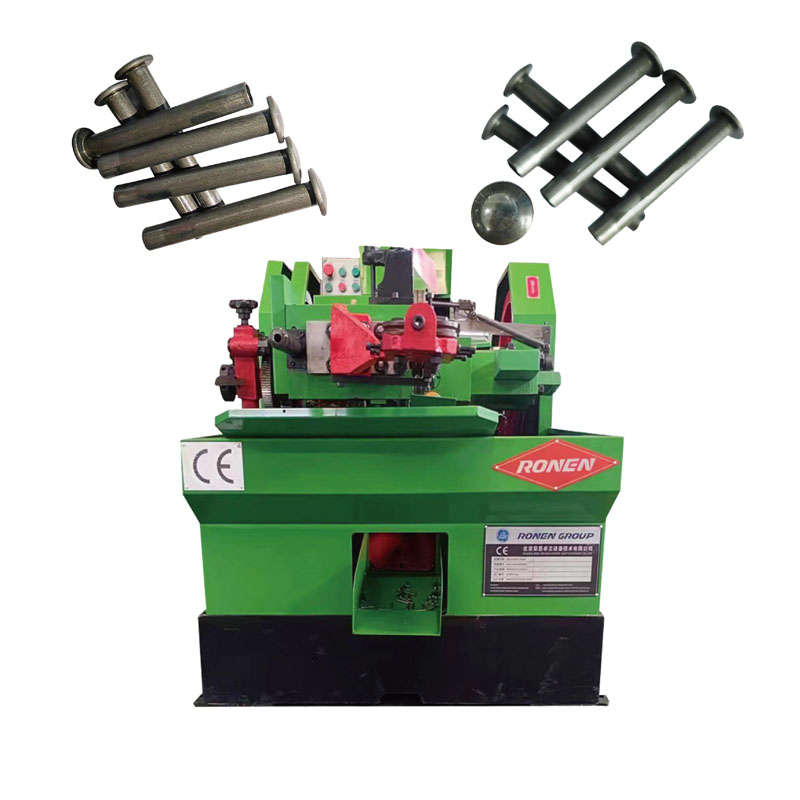

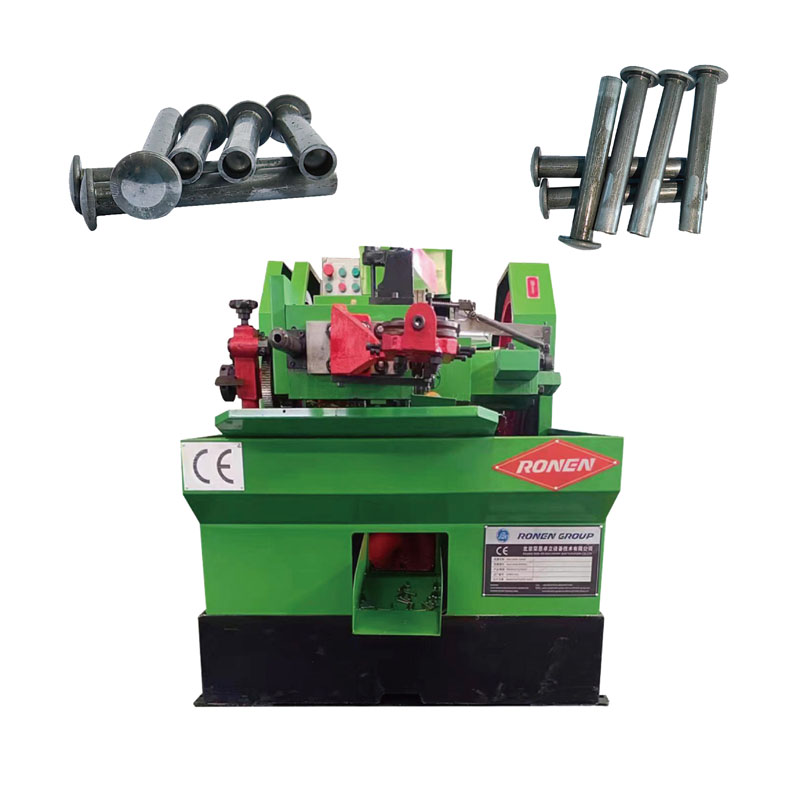

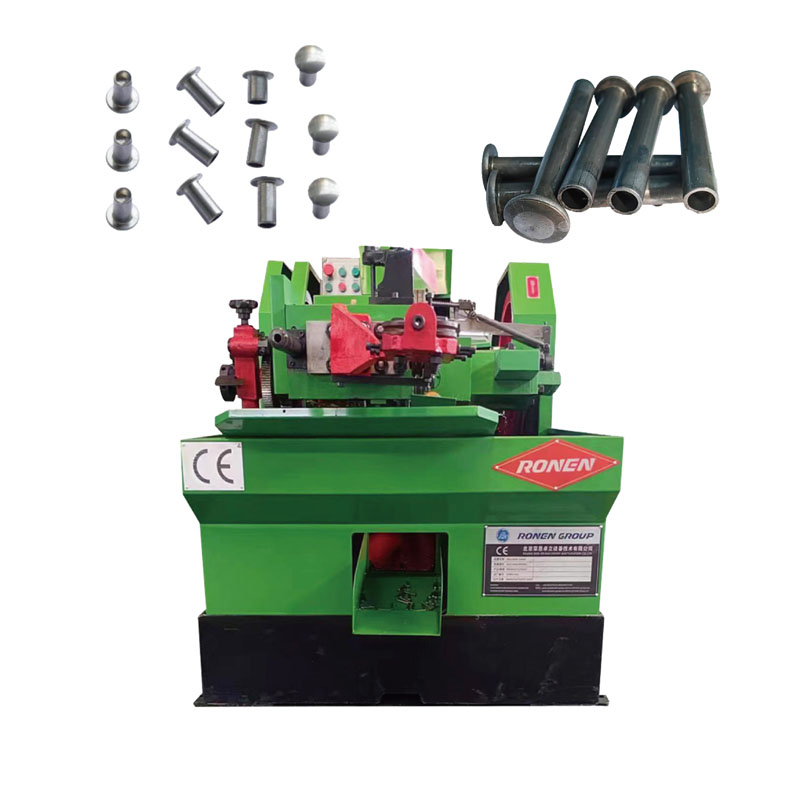

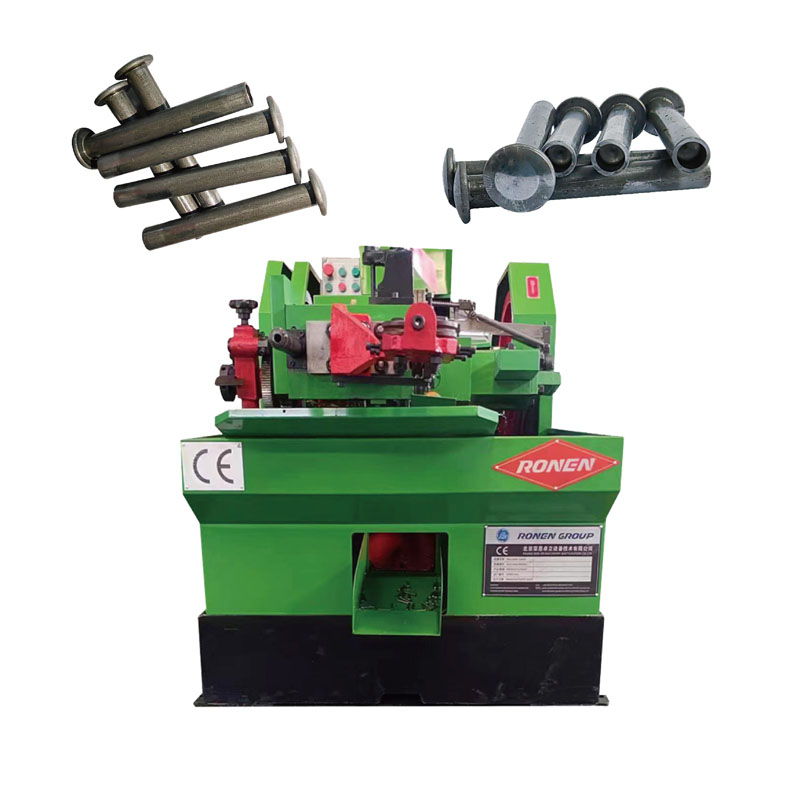

Machine Details And Finished Products Display
Blind Rivet Rivet Part Former details :
The finished-products:
Product Function Display Video
Blind Rivet Rivet Part Former working video show:
Packing And Delivery
Blind Rivet Rivet Part Former : packing and shipping.
Certifications
Blind Rivet Rivet Part Former : certificate.
FAQ
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q: What can you buy from us?
A:Cold heading machine, Cold forging machine, Bolts nuts machine, Screws machine, Threading machine, etc.
Q: Can you provide commissioning video and samples?
A: Sure. We will update the information (photos, videos, etc.) with you during and after commissioning , and send samples. The shipment will be arranged only after you confirm it is correct.
