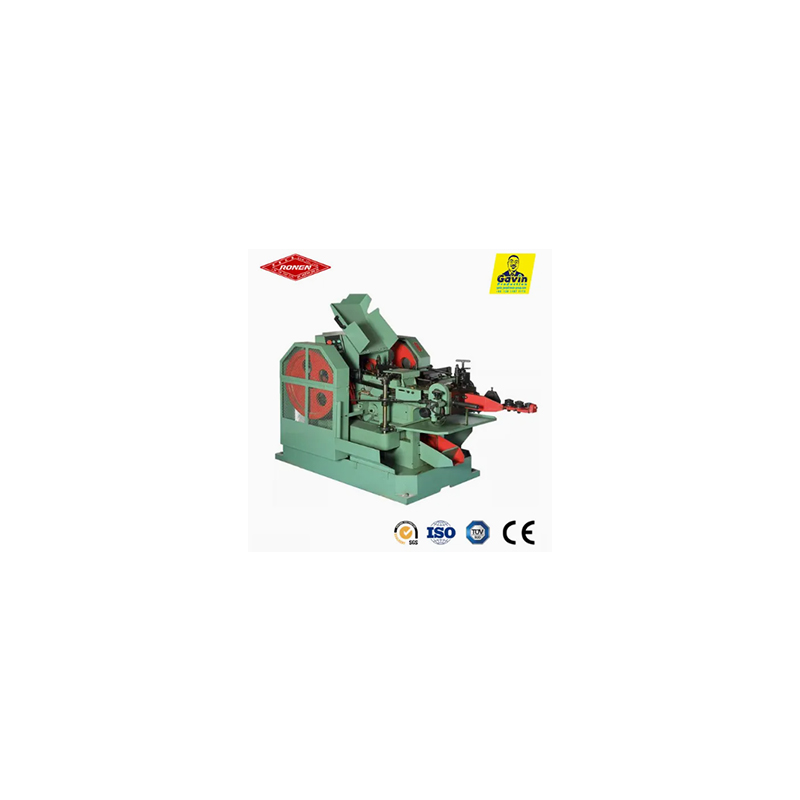

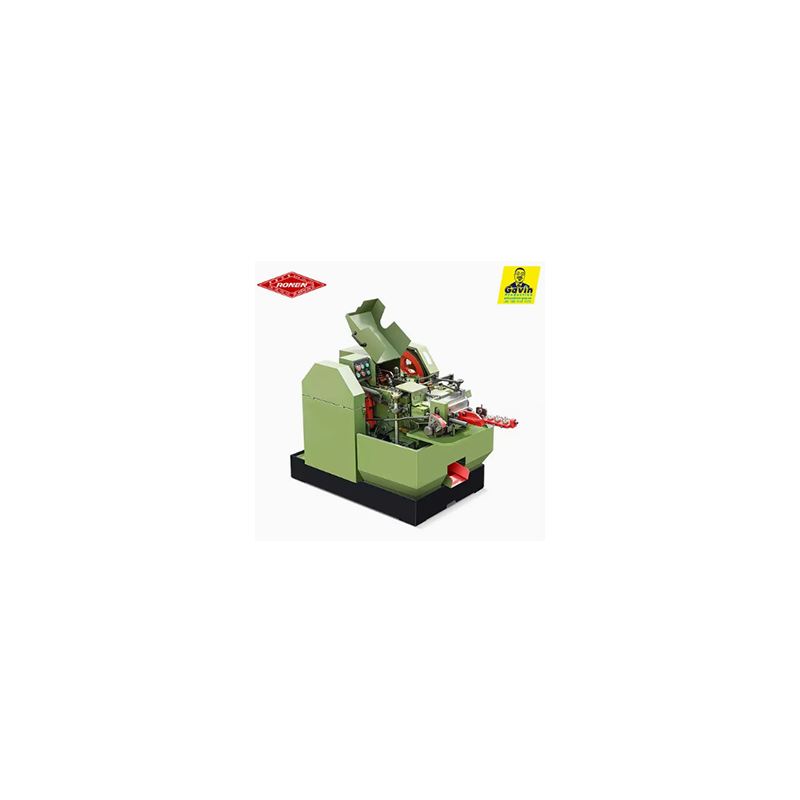

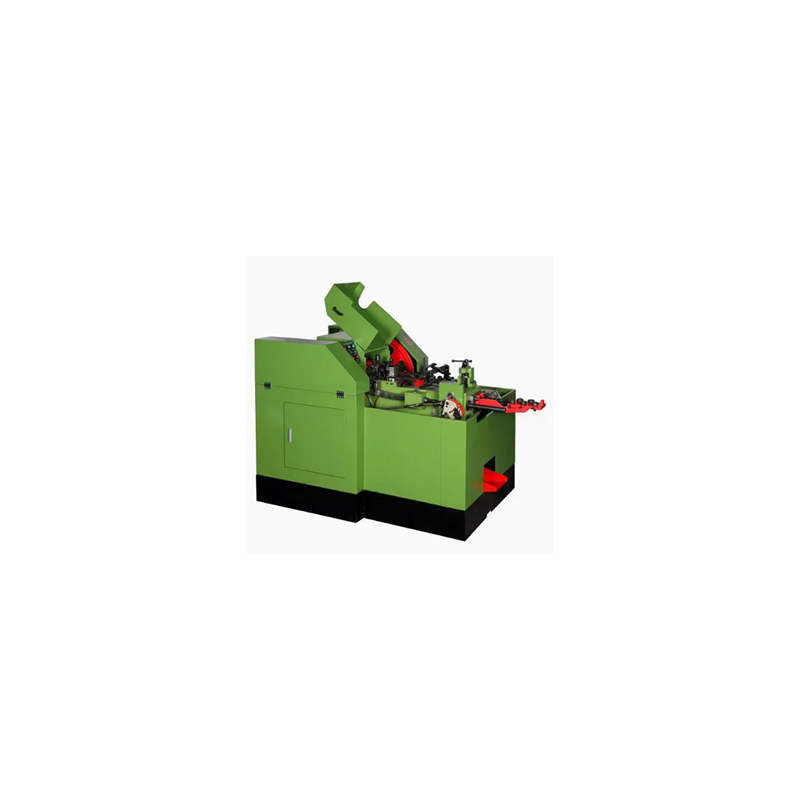

The Automatic Heavy Duty Screw Header Machine manufactured by Ronen® can handle thick metal wire used for large screws. It can press the heads of heavy screws without slowing down. It is manufactured with sturdy components that will not bend under pressure, which is crucial for heavy wire materials.
Ronen® Automatic Heavy Duty Screw Header Machine is specifically designed for manufacturing large-sized and high-strength screw heads. Insert the thick wire into the machine. It will automatically cut it off. Then, the machine will use a mold to squeeze it, pressing one end into a screw head shape.
The Ronen® Automatic Heavy Duty Screw Header Machine is specifically designed for mass production of large, high-strength screws. This machine employs a cold forging process, where the thick steel wire is cut into blanks, and then subjected to intense pressure to extrude one end, creating the screw head. It is commonly used in construction, automotive, or heavy machinery applications.
The Machine first processes large-diameter steel wire coils. The powerful unwinding and straightening system feeds the steel wire into the machine. Then, the powerful and precise shearing machine cuts the steel wire into blanks. These blanks are large in size and heavy in weight, and require a heavy-duty transmission system to move reliably between the forging stations without any misalignment.
The forming process of Ronen® Automatic Heavy Duty Screw Header Machine is carried out in a multi-station head machine. At each station, a powerful punch presses the punch into the cut blank fixed in the mold. The strong impact force gradually causes the tough metal to shift, thereby forming complex head shapes, such as heavy hexagonal heads, hexagonal washers, or large flange heads that require significant material displacement.
| Model | 4-20A | 5-30A |
| Max.Blank Dlameter(mm) |
Φ5 |
Φ8 |
| Max.Blank Lenght(mm) | 20 | 30 |
| Storke | 60 | 90 |
| Capacity(PCS/min) | 80-120 | 80-100 |
| RPM(PCS/min) |
Φ32x105 |
Φ35x120 |
| Cut-off Die diameter(mm) |
Φ15x30 |
Φ20x30 |
| Punch Die(1st)(mm) |
Φ25x70 |
Φ30x75 |
| Punch Die(2rd)(mm) |
Φ25x70 |
30x75 |
| Cutter Size | 10x30x70 | 10x30x70 |
| Body Motor Power(HP)volume | 2 | 3 |
| Volume(LxWxH)(m) | 1.75x0.85x1.15 | 2.30x1.08x1.15 |
| Weight(kg) | 1300 | 1700 |
The feature of the Ronen® Automatic Heavy Duty Screw Header Machine is that its body is sturdy and does not shake during the extrusion process, ensuring the stability of the screw head size. It has overload protection. If the wire is too hard or gets stuck, the machine will automatically stop running, and it will not damage the motor or break the mold. It is more durable than ordinary machines.
