Product Description

The Automatic 4 Die 4 Blow Bolt Making Machine uses four sets of molds and four consecutive stamping processes to automatically transform metal wire into bolt blanks. During the production process, no workers are needed to intervene. The machines will complete the entire process by themselves.

Product details

The bolt making machine processes the metal wire into bolts in four steps. It cuts a section of the metal wire and then feeds it into four stations. At each station, the punch will press the metal wire to form different parts of the bolt, such as the bolt head or the bolt tip. Eventually, a finished bolt is produced.

Place a coil of steel wire into the Automatic 4 Die 4 Blow Bolt Making Machine. During processing, the machine first straightens the steel wire, then cuts it into preset lengths, and finally shapes it through continuous processing to make finished bolts. This automated process is designed to efficiently produce a large quantity of bolts. This process combines what used to be multiple separate steps into a continuous operation on a single machine.

The bolt making machine will directly feed the material. The first die cuts the wire and forms the initial shape of the head. The second die shapes the head more clearly (such as the edges of a hexagonal head). The third die processes the rod part (simple steps or reduction in diameter). The fourth die finishes the head and the rod part, and finally, the finished blank is automatically sent out.

Product parameters

Model	Unit	DBF-64S	DBF-64SL	DBF-84S	DBF-104S	DBF-104L	DBF-134L	DBF-134L
Forging station	NO.	4	4	4	4	4	4	4
Forging force	Kgf	35.000	40.000	60.000	80.000	80.000	120.000	120.000
Max.cut-off dia.	mm	Φ8	Φ8	Φ10	Φ12	Φ12	Φ15	Φ15
Max.cut-off length	mm	80	105	115	135	185	190	265
Output rate	pcs/min	140-210	130-200	120-180	90-140	80-130	75-110	50-80
P.K.O.Stroke	mm	12	15	18	30	30	40	40
K.O.Stroke	mm	70	90	92	118	160	175	225
Main ram stroke	mm	110	136	160	190	262	270	380
Main motor power	Kw	15	15	22	30	30	37	37
Overall dims.of cut off die	mm	Φ30*45L	Φ30*45L	Φ50*50L	Φ45*59L	Φ45*59L	Φ63*69L	Φ63*69L
Overall dims.of punch die	mm	Φ40*90L	Φ40*90L	Φ45*125L	Φ53*115L	Φ53*115L	Φ60*130L	Φ60*229L
Overall dims.of main die	mm	Φ50*85L	Φ50*110L	Φ60*130L	Φ75*135L	Φ75*185L	Φ86*190L	Φ86*305L
Die pitch	mm	60	60	70	90	94	110	110
Approx.weight	Ton	8	10	14	18	21	28	33
Applicable bolt dia	mm	3-6	3-6	5-8	6-10	6-10	8-12.7	8-12.7
Shank length of blank	mm	10-65	10-80	15-90	15-110	20-152	20-160	40-220
Overall dims.	mm	530030002300	550031002300	650032002500	740035002800	900035002900	1000038002900	1100038003000

Product Selling Points

The selling point of the Automatic 4 Die 4 Blow Bolt Making Machine is "fully automatic + four mold forming". It is highly efficient and saves labor. From the perspective of process effects, the four-mold four-blow process can produce products with higher precision than the two-mold two-blow process through more precise molding control. The arc transition of the head of the round head bolt is uniform and continuous without obvious deviation; the hexagonal structure of the hexagonal head bolt is well symmetrical, and the dimensional error of each side is controllable. There is no need for subsequent grinding, and the waste rate is lower.

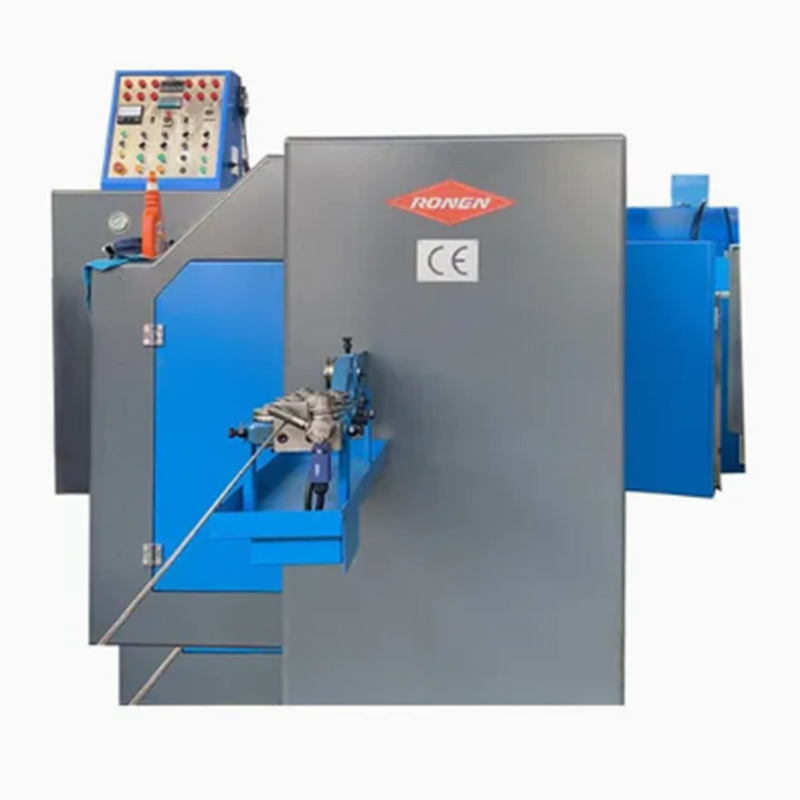

Automatic 4 Die 4 Blow Bolt Making Machine
