With years of experience in production Screw Forging Machine, RONEN MACHINERY can supply a wide range of Screw Forging Machine. High quality Alloy Steel Screw Forging Machine can meet many applications, if you need, please get our online timely service about Alloy Steel Screw Forging Machine. In addition to the product list below, you can also customize your own unique Screw Forging Machine according to your specific needs.
Alloy Steel Screw Forging Machine features :
1.The linkage lever provides precise feeding for the head.
2.High precision oil pump for machinery to provide more lasting power.
3.The machine has the advantages of high speed, accurate precision, wide versatility, low cost and high efficiency.
Product Parameter (Specification)
|
Model |
D12-70 |
D12-150 |
D12-200 |
D12-250 |
D12-300 |
D12-450 |
D16-180 |
D16-450 |
|
Max.Blank Diameter (mm) |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ8.0-16 |
Φ8.0-18 |
Φ8.0-18 |
|
Max.Blank Length (mm) |
70 |
150 |
200 |
250 |
300 |
450 |
180 |
450 |
|
Max.Cut- off Length (mm) |
90 |
170 |
220 |
270 |
320 |
480 |
210 |
480 |
|
Stroke (mm) |
120 |
190 |
250 |
300 |
330 |
550 |
240 |
550 |
|
Capacity (pcs/min) |
60-70 |
40-50 |
30-40 |
30-40 |
25-35 |
25-35 |
35-40 |
25-35 |
|
Main Die Diameter (mm) |
Φ80×120 |
Φ80×200 |
Φ88×260 |
Φ88×330 |
Φ88×360 |
Φ90×540 |
Φ98×220 |
Φ98×540 |
|
The Initial Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
The Precise Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
Cut-off Die Diameter (mm) |
Φ35×45 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ60×80 |
Φ60×80 |
|
Cutter Size (mm) |
16×50×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
20×60×125 |
20×70×125 |
|
Main Motor Power (kw) |
20HP/15kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/22kw |
25HP/22kw |
25HP/22k w |
|
Volume L*W*H/(mm) |
4.50×2.00×1.32 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
6.50×2.25×2.10 |
4.40×2.10×1.95 |
6.50×2.25×2/.10 |
|
Weight (kg) |
8700 |
14000 |
14300 |
15000 |
15850 |
20800 |
20800 |
21000 |
Machine Details And Finished Products Display
Alloy Steel Screw Forging Machine can produce Truss Head, Countersunk Head, Set Screw, Wood Screw, Chipboard Screw, Self Tapping Screw, Flat Head Hex Head, Pan Head, Hexagon Head, Socket Head, Button Head and so on.

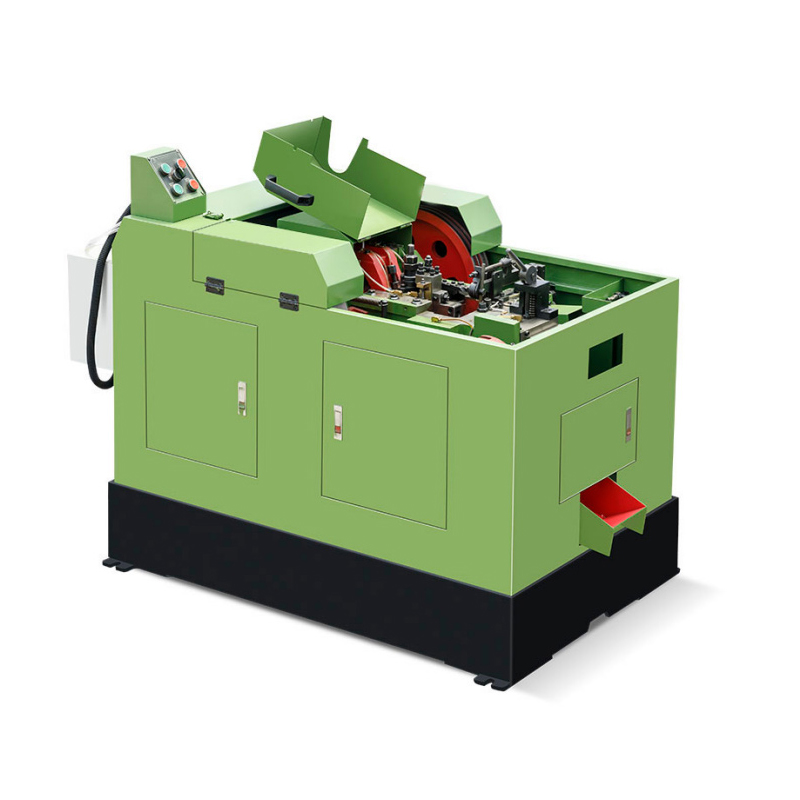

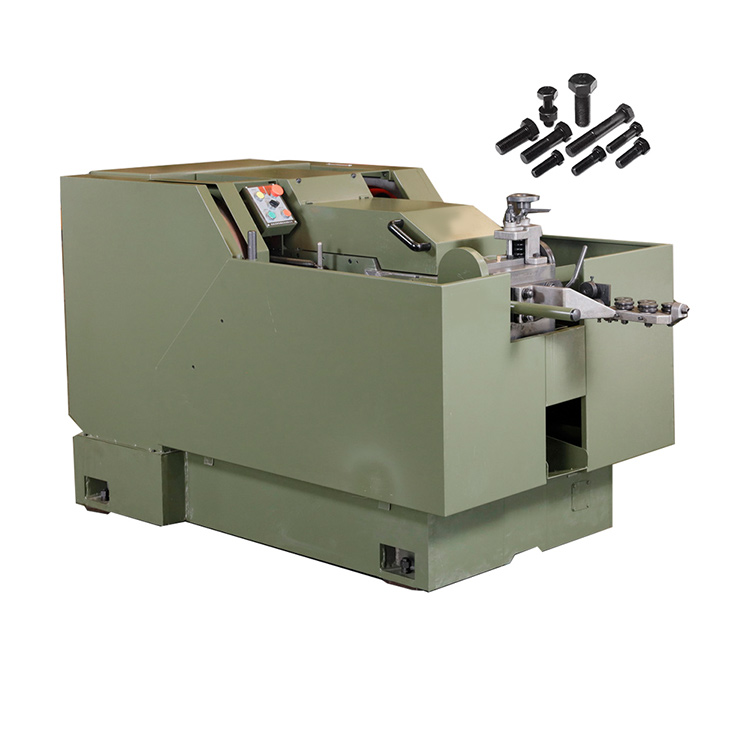

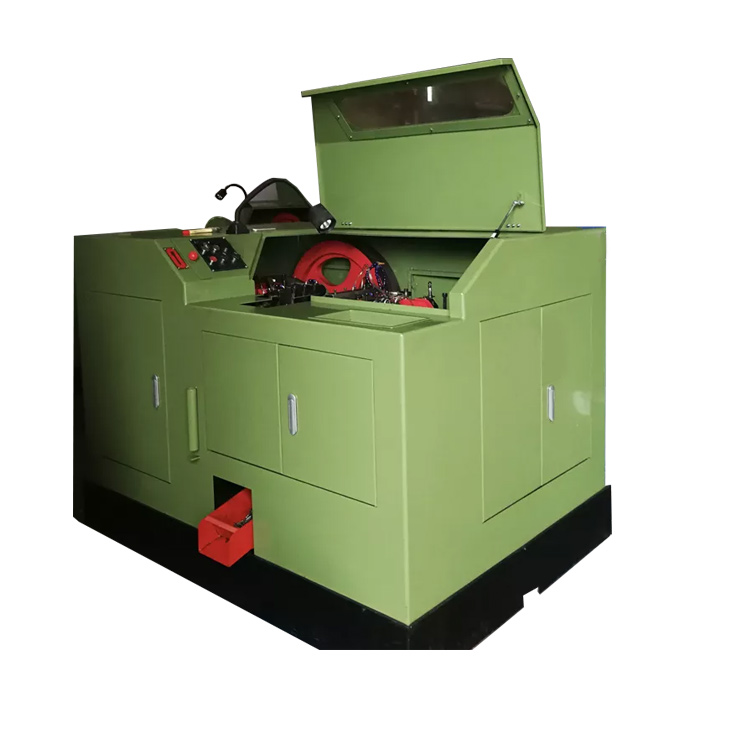

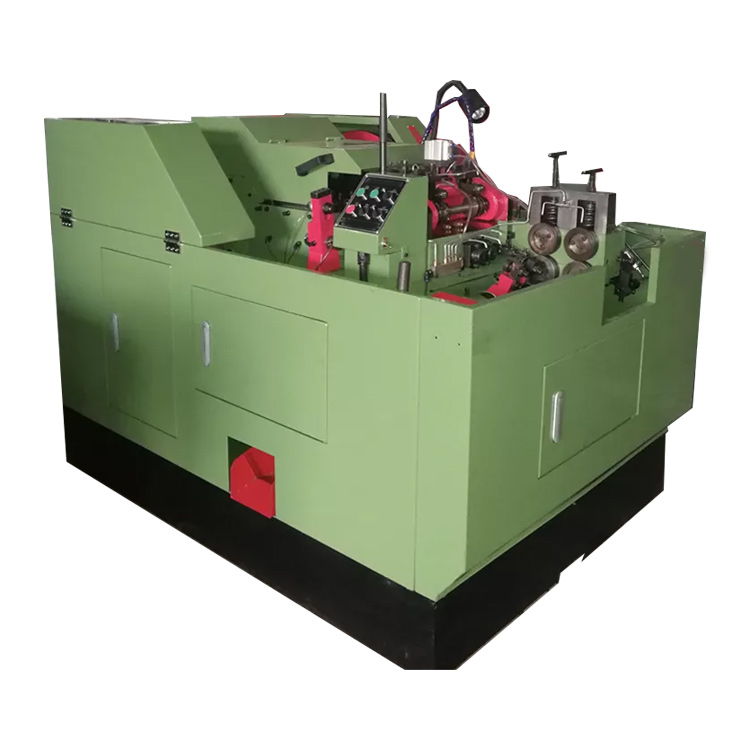

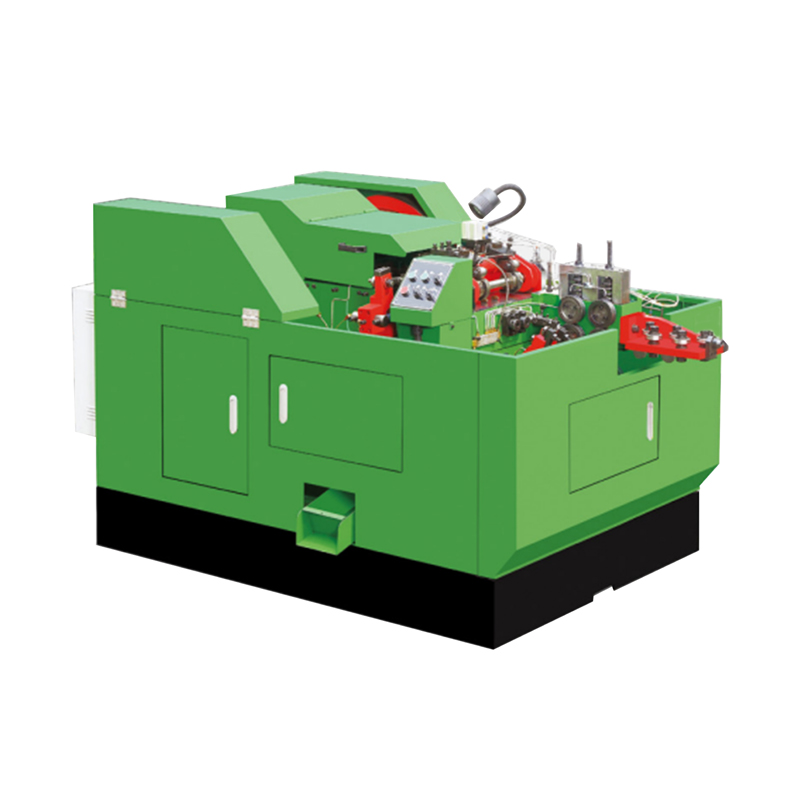

Alloy Steel Screw Forging Machine details:
Alloy Steel Screw Forging Machine’s finished products:
Product Function Display Video
Alloy Steel Screw Forging Machine working show.
Certifications
Alloy Steel Screw Forging Machine :certificates.
FAQ
Q:Do you provide custom services?
A:Yes,we customize the machine according to your samples or drawings.
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
Q: Can you provide commissioning video and samples?
A: Sure. We will update the information (photos, videos, etc.) with you during and after commissioning, and send samples. The shipment will be arranged only after you confirm it is correct.
Q: What about delivery time?
A: Normally within 30 days,but it depends on your quantity and order time.
Q:Do you have CE certification?
A: Yes, we have CE certification.
