As the professional Fastener machinery manufacturer, RONEN MACHINERY would like to provide you Hot Sale China Self-tapping screw rolling machine with high quality and reasonable price. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
Self-tapping screw rolling machine peculiarities:
1.The spindle of the machine adopts the combination of double row needle roller shaft and cylindrical roller shaft; the precision and rigidity requirement of the spindle are guaranteed.
2.The transmission system of the spindle adopts multi-pole gear box, which can realize smooth transmission and convenient speed change.
3.The machine hydraulic system adopts the superposition valve, takes up the space small, the appearance is artistic, the function is stable is easy to use and the maintenance.
4.Machine control system can be easily selected manually, semi-automatic, automatic three ways to adjust the working time, the use of new dial-code direct control rolling time and intermittent time.
2.Product Parameter (Specification)
Two-Axles Hydraulic Self-tapping screw rolling machine:
|
Model |
M4-M20 |
M2-M12 |
|
Rolling method |
Single or continuous piece of thread rolling |
Single or continuous piece of thread rolling |
|
Rolling workpiece diameter range |
ø3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Thread pitch range |
0.4-2.5P |
0.4-1.5P |
|
The maximum length of the thread |
Fixed or Thru-feeding |
Fixed or Thru-feeding |
|
Rotate speed |
30r/min |
40r/min |
|
Roller outer diameter |
ø95-ø120mm |
ø98mm |
|
Roller inner diameter (grove) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
Roller thickness |
60mm |
50mm |
|
Capacity |
80pcs/min |
80-220pcs/min |
|
Host motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulic motor |
2HP(1.5KW) |
2HP(1.5KW) |
|
Weight |
680 KG |
3600KG |
|
Mechanical volume |
1100*1000*1200mm |
1000*1450*750mm |
Three-Axles Cam Type Self-tapping screw rolling machine:
|
Model |
M12-M35 |
M20-M60 |
|
Rolling method |
Single piece of thread rolling |
Single piece of thread rolling |
|
Rolling workpiece diameter range |
ø11.2--ø34.2mm |
ø19.2-ø59.2mm |
|
Thread pitch range |
0.5-2.5P |
0.8-3.5P |
|
The maximum length of the thread |
26mm |
26mm |
|
Rotate speed |
480r/min |
300r/min |
|
Roller outer diameter |
ø45-ø75mm |
ø52-ø115mm |
|
Roller inner diameter (grove) |
ø35mm(10×5) |
ø40mm(12×6) |
|
Roller thickness |
30mm |
30mm |
|
Capacity |
28pcs/min |
20pcs/min |
|
Host motor |
1.5Kw |
3Kw |
|
Hydraulic motor |
380v |
380v |
|
Weight |
220KG |
280KG |
|
Mechanical volume |
1000*850*1250mm |
1100*950*1250mm30mm |
Three-Axles Thru-Feed Self-tapping screw rolling machine:
|
Model |
Max. Thread Diameter (mm) |
Max. Thread Length (mm) |
Moving Dies Stationary Length (mm) (L*TH.*W) |
Motor (Kw) |
Capacity (pcs/min) |
Volume (L*W*H) (m) |
Weight (Kg) |
|
|
M6-70 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-200 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |
Machine Display

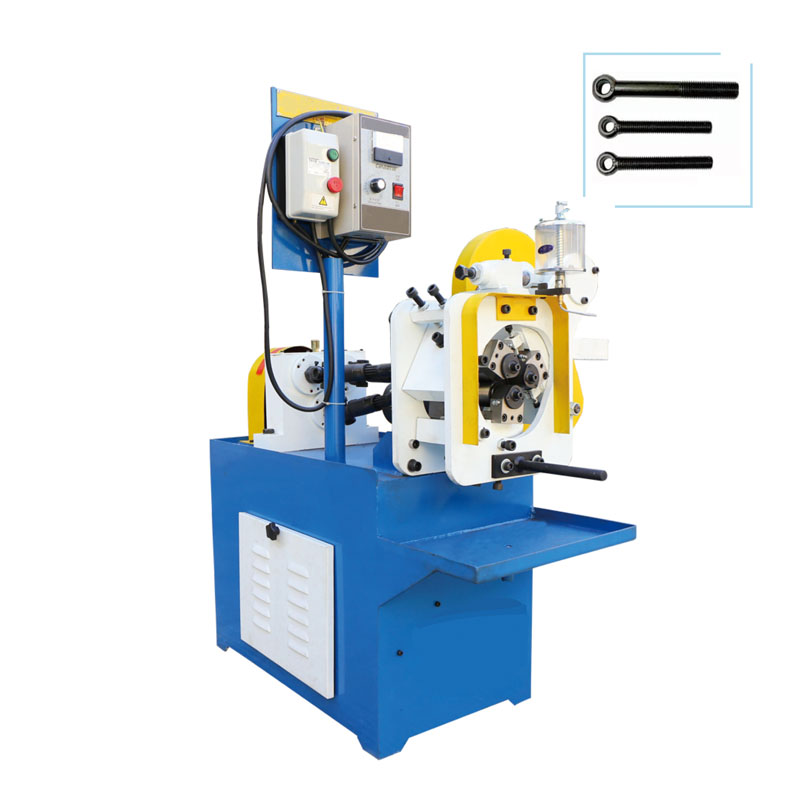

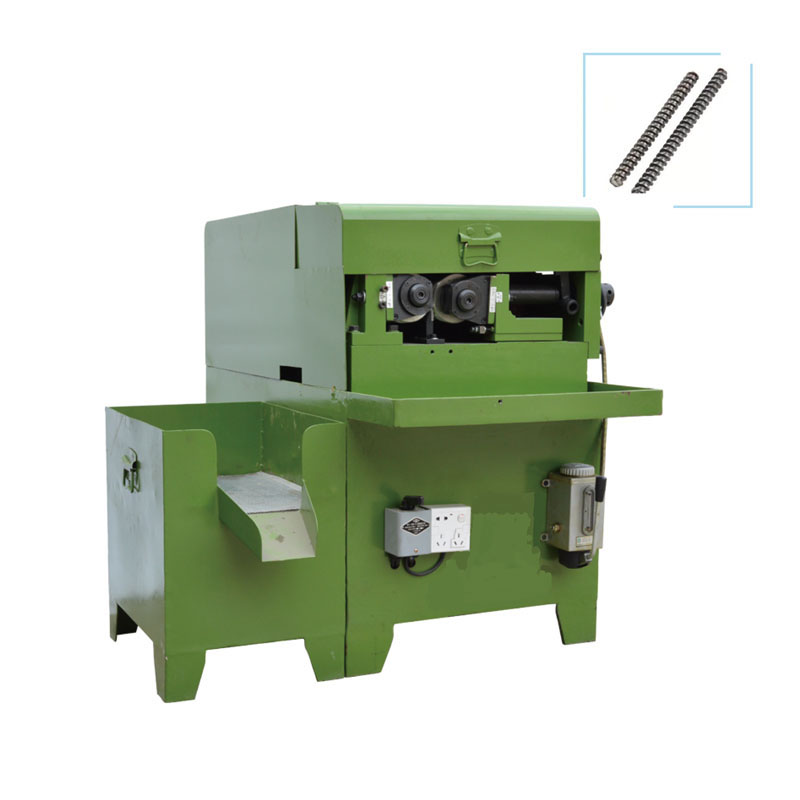

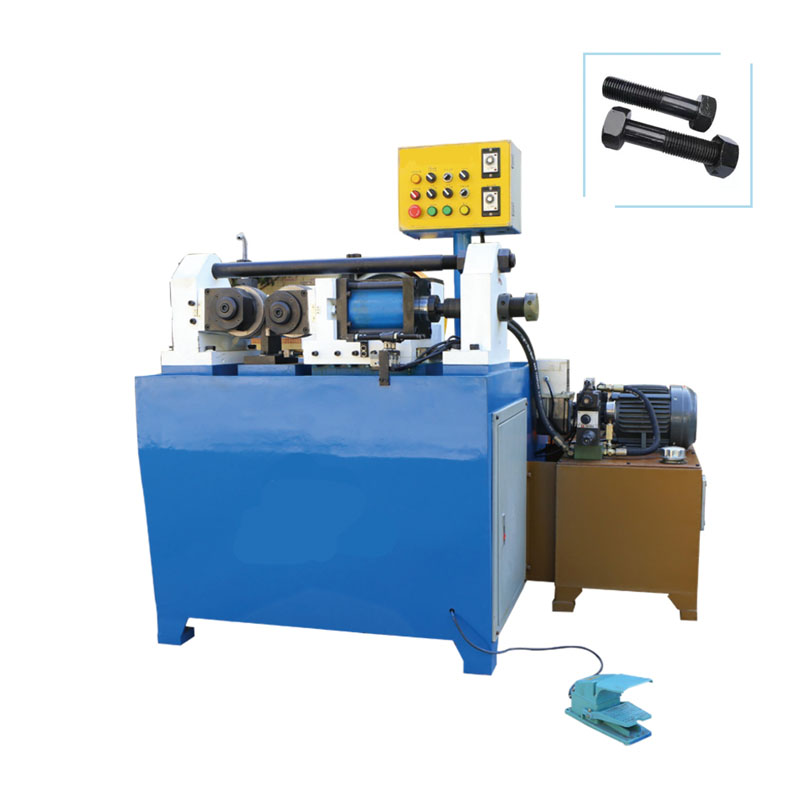

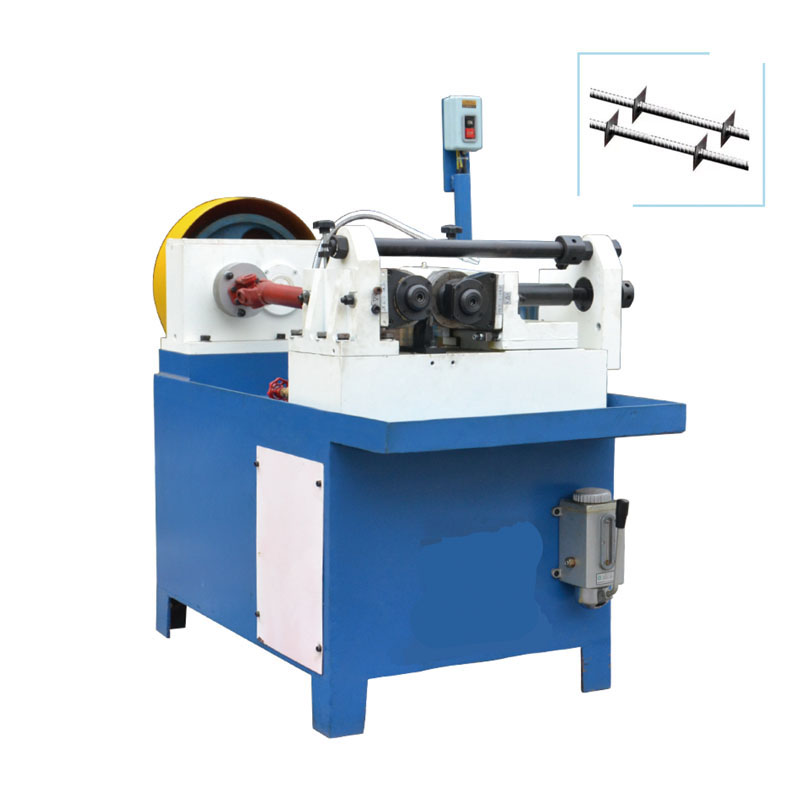

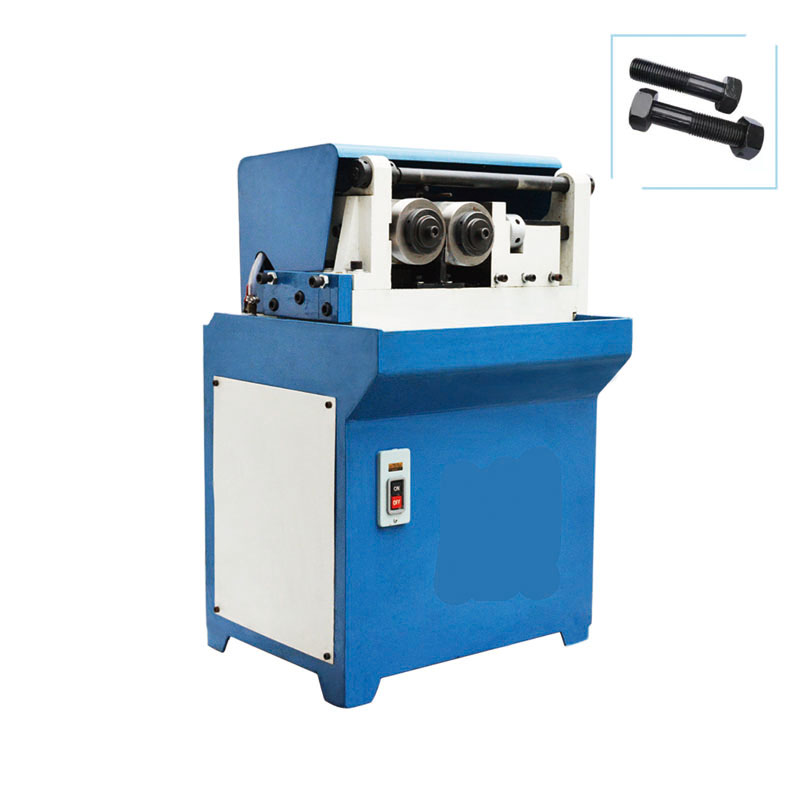

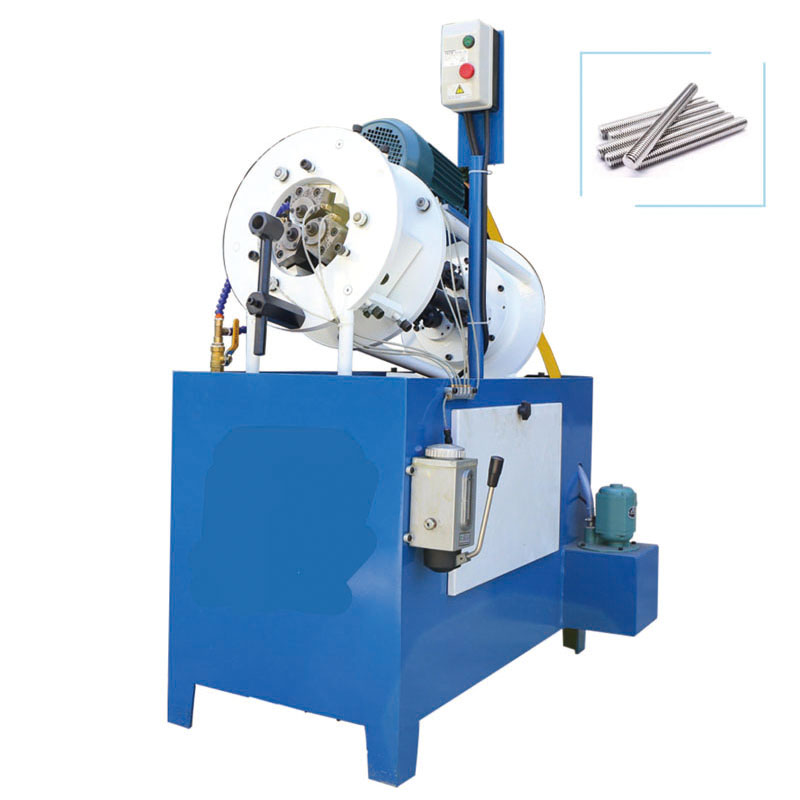

Self-tapping screw rolling machine:
Finished products:
Product Display Video
Self-tapping screw rolling machine video.
Related Products
RONEN is a professional China Self-tapping screw rolling machine manufacturer, provides nut bolt hot forming machine, screen sorting machine, cold heading machine, nut bolt tapping machine, screw threading machine, bolt making machine and so on.
Certifications
Self-tapping screw rolling machine certificates.
FAQ
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: How long can you provide the warranty?
A: Our machine has a one-year warranty.
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
Q:What can you buy from us?
A:Cold heading machine, cold forging machine, bolts nuts machine, screws machine, threading machine, etc.
Q: Do you provide any training to ensure that our users can operate the machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
