The following is an introduction to Mild Steel Screw Thread Rolling Machine. Ronen® hopes to help you find the best Screw Part Thread Rolling Machine for you.
Mild Steel Screw Thread Rolling Machine is a kind of multi-function cold extrusion molding machine. Its thread rolling function is to roll thread, straight line and twill pressure under cold state within the rolling pressure range. Rolling of straight, helical and helical spline gears; Straightening pressure reduction, rolling and forming rolling.
Mild Steel Screw Thread Rolling Machine peculiarities :
1.Through and fixed both can used, the spindle is controlled by frequency converter, speed adjustable.
2.Feed adopts hydraulic circuit control, feed smoothly.The operation is simple.
3.The drive gear after heat treatment, polishing, machine noise is small, high durability.
4.Suitable for connector,bicycles, automobiles industry, the tubing connector.
2.Product Parameter (Specification)
Two-Axles Hydraulic Mild Steel Screw Thread Rolling Machine:
|
Model |
M4-M20 |
M2-M12 |
|
Rolling method |
Single or continuous piece of thread rolling |
Single or continuous piece of thread rolling |
|
Rolling workpiece diameter range |
ø3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Thread pitch range |
0.4-2.5P |
0.4-1.5P |
|
The maximum length of the thread |
Fixed or Thru-feeding |
Fixed or Thru-feeding |
|
Rotate speed |
30r/min |
40r/min |
|
Roller outer diameter |
ø95-ø120mm |
ø98mm |
|
Roller inner diameter (grove) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
Roller thickness |
60mm |
50mm |
|
Capacity |
80pcs/min |
80-220pcs/min |
|
Host motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulic motor |
2HP(1.5KW) |
2HP(1.5KW) |
|
Weight |
680 KG |
3600KG |
|
Mechanical volume |
1100*1000*1200mm |
1000*1450*750mm |
Three-Axles Cam Type Mild Steel Screw Thread Rolling Machine:
|
Model |
M12-M35 |
M20-M60 |
|
Rolling method |
Single piece of thread rolling |
Single piece of thread rolling |
|
Rolling workpiece diameter range |
ø11.2--ø34.2mm |
ø19.2-ø59.2mm |
|
Thread pitch range |
0.5-2.5P |
0.8-3.5P |
|
The maximum length of the thread |
26mm |
26mm |
|
Rotate speed |
480r/min |
300r/min |
|
Roller outer diameter |
ø45-ø75mm |
ø52-ø115mm |
|
Roller inner diameter (grove) |
ø35mm(10×5) |
ø40mm(12×6) |
|
Roller thickness |
30mm |
30mm |
|
Capacity |
28pcs/min |
20pcs/min |
|
Host motor |
1.5Kw |
3Kw |
|
Hydraulic motor |
380v |
380v |
|
Weight |
220KG |
280KG |
|
Mechanical volume |
1000*850*1250mm |
1100*950*1250mm30mm |
Three-Axles Thru-Feed Mild Steel Screw Thread Rolling Machine:
|
Model |
Max. Thread Diameter (mm) |
Max. Thread Length (mm) |
Moving Dies Stationary Length (mm) (L*TH.*W) |
Motor (Kw) |
Capacity (pcs/min) |
Volume (L*W*H) (m) |
Weight (Kg) |
|
|
M6-70 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-200 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |

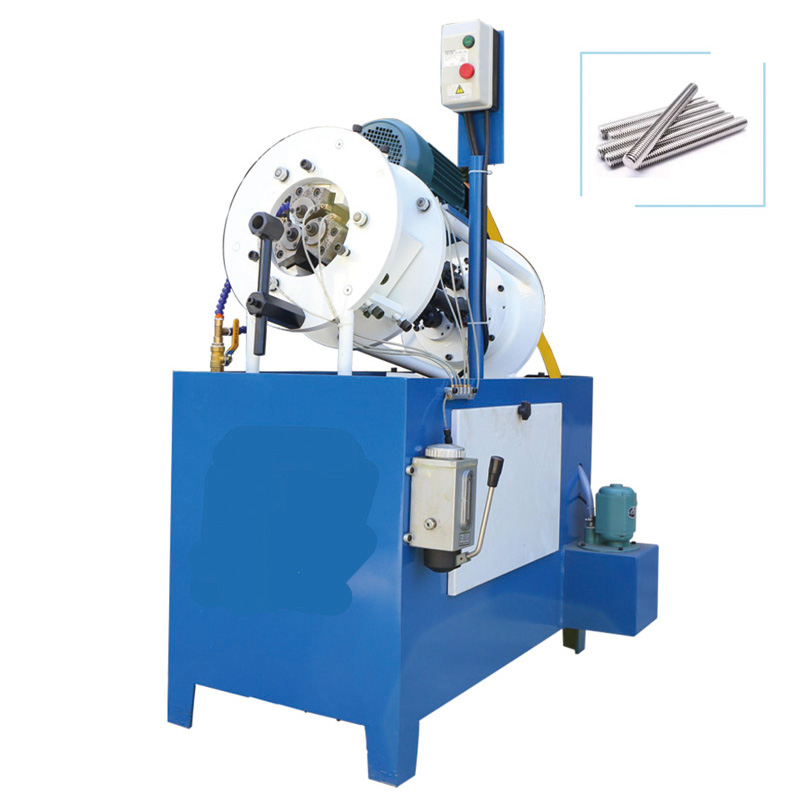

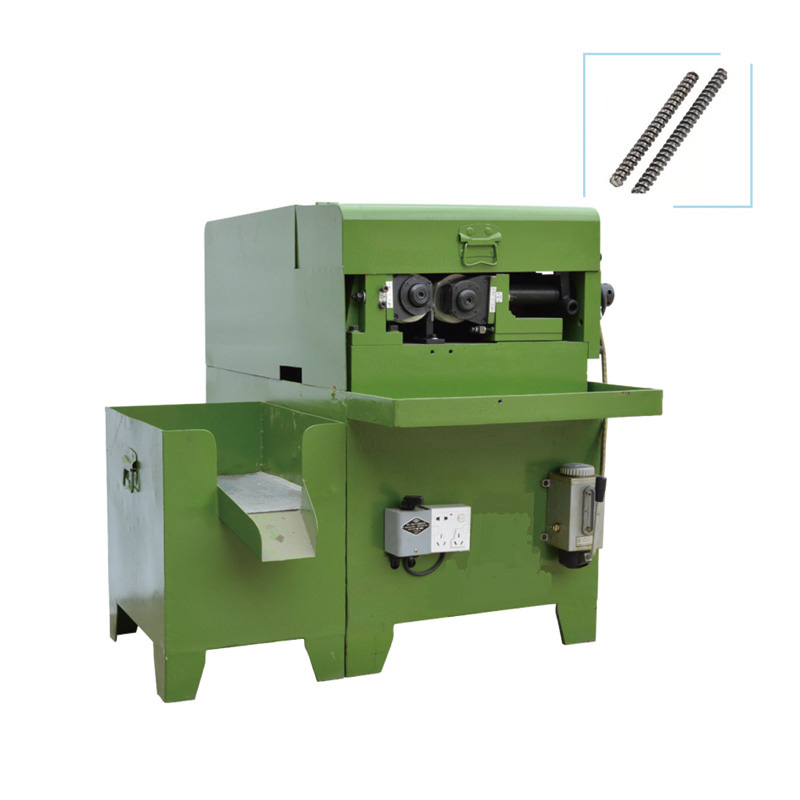

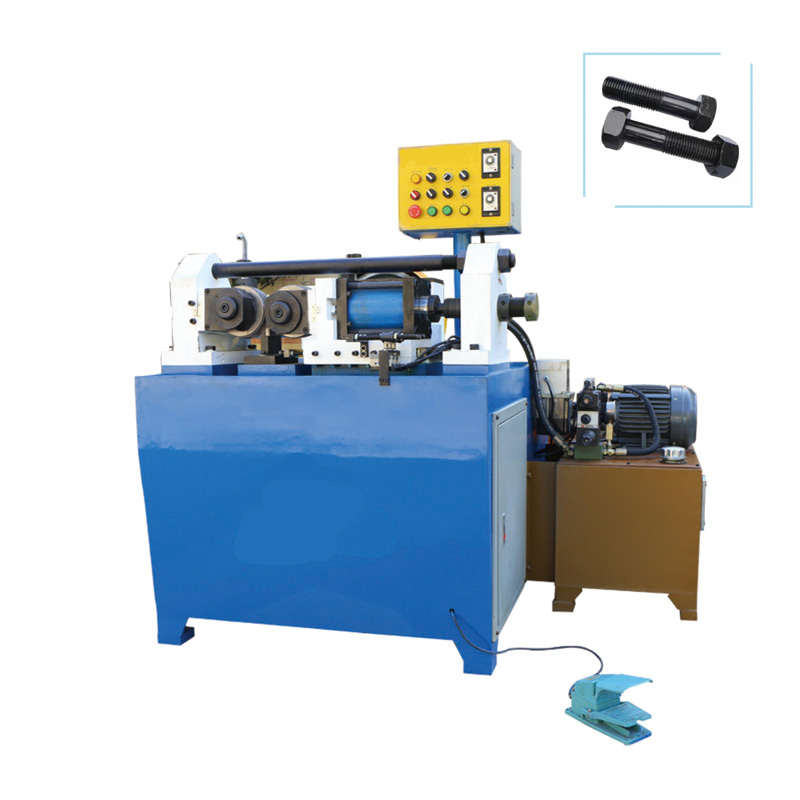

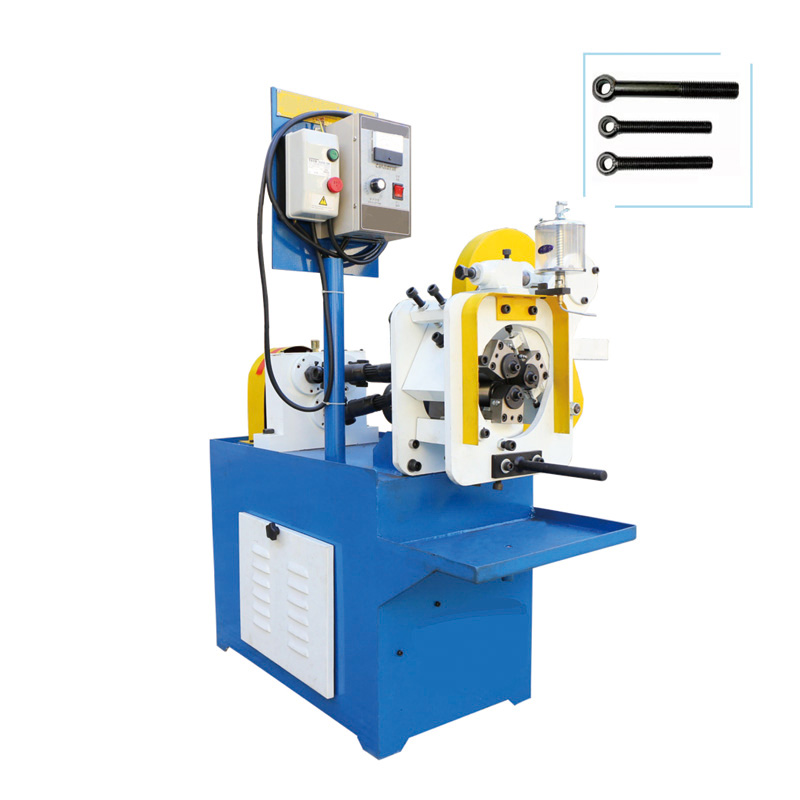

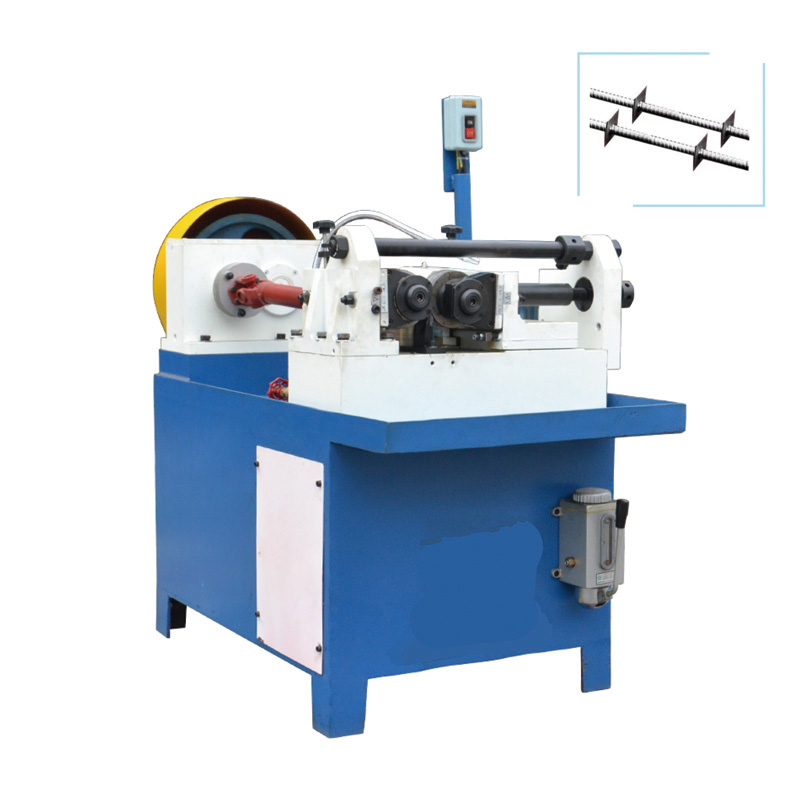

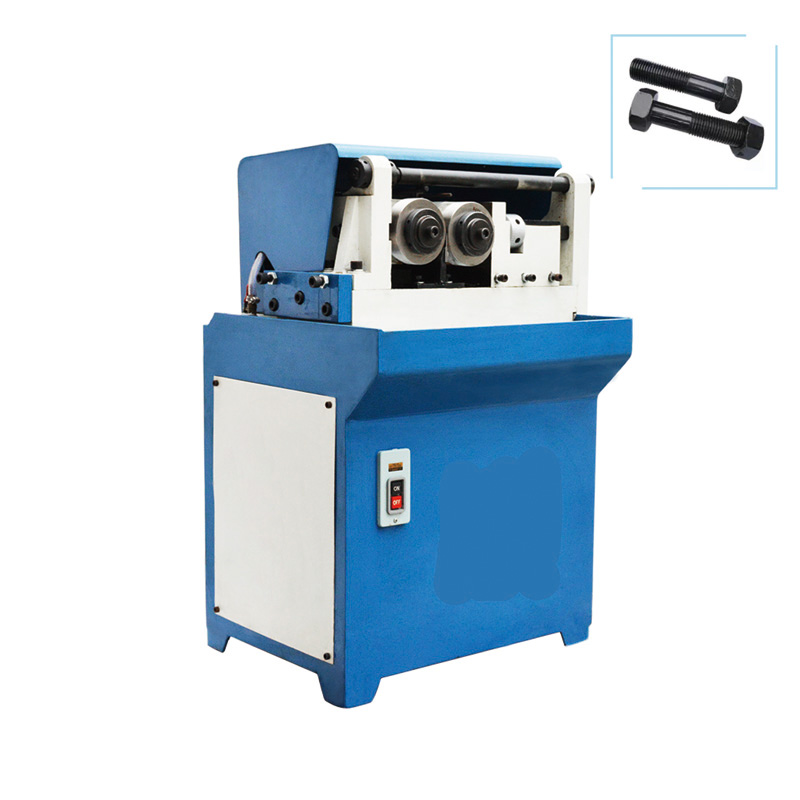

Machine Display
Mild Steel Screw Thread Rolling Machine:
Finished products:
Product Display Video
Mild Steel Screw Thread Rolling Machine video.
