The following is an introduction to M10 Bolt Making Machine, which is a specialized equipment with the high efficiency and automation among bolt making machinery. Ronen® an important tools for manufacturing a variety of bolts in fastener industry. Welcome new and old customers to continue to cooperate with us to create a better future together!
Now that the superiority of the M10 Bolt Making Machine itself and the advantage of cold heading technology, the machinery also are widely used in producing standard fasteners and abnormal non-standard parts such as furniture,motorcycle, machinery, rail-traffic, vehicle, steamer, construction, aviation, sewing machine, light industry and daily necessities,etc.
Product Parameter (Specification)
3 station M10 Bolt Making Machine:
Specification |
Unit |
RNBF-63S |
RNBF-83L |
RNBF-103S |
RNBF-103L |
RNBF-133S |
RNBF-133L |
Station no. |
No. |
3 |
3 |
3 |
3 |
3 |
3 |
Forging power |
kg |
35,000 |
60,000 |
80,000 |
80,000 |
115,000 |
115,000 |
Max.cutting diameter |
mm |
Φ8 |
Φ10 |
Φ12 |
Φ12 |
Φ15 |
Φ15 |
Max.cutting length |
mm |
86 |
130 |
105 |
192 |
145 |
250 |
Speed |
pcs /min |
160-240 |
120-180 |
120-180 |
80-120 |
100-160 |
60-100 |
P.K.O Stroke |
mm |
12 |
18 |
15 |
15 |
26 |
25 |
K.O Stroke |
mm |
65 |
100 |
80 |
162 |
102 |
230 |
Main ram stroke |
mm |
110 |
160 |
150 |
280 |
200 |
350 |
Main motor power |
kw |
11 |
18.5 |
18.5 |
22 |
30 |
30 |
Overall dim.of cut off die |
mm |
Φ35*45L |
Φ35*56L |
Φ45*59L |
Φ45*59L |
Φ63*69L |
Φ55*70L |
Overall dim.of punch die |
mm |
Φ40*90L |
Φ45*125L |
Φ53*115L |
Φ53*112L |
Φ60*130L |
Φ60*179L |
Overall dim.of main die |
mm |
Φ50*85L |
Φ60*130L |
Φ75*108L |
Φ75*200L |
Φ86*135L |
Φ86*265L |
Die pitch |
mm |
60 |
70 |
90 |
90 |
100 |
100 |
Approx.weight |
kg |
7,500 |
13,000 |
14,000 |
19,500 |
20,000 |
31,000 |
Applicable bolt diameter |
mm |
3-6 |
5-8 |
6-10 |
6-10 |
8-12.7 |
8-12.7 |
Shank length of blank |
mm |
10-65 |
15-100 |
15-100 |
25-152 |
20-100 |
70-210 |
4 station M10 Bolt Making Machine:
Specification |
Unit |
RNBF-64S |
RNBF-64L |
RNBF-84SL |
RNBF-84L |
RNBF-104S |
RNBF-104L |
Station no. |
No. |
4 |
4 |
4 |
4 |
4 |
4 |
Forging power |
kg |
40,000 |
40,000 |
60,000 |
65,000 |
80,000 |
80,000 |
Max.cutting diameter |
mm |
Φ8 |
Φ8 |
Φ10 |
Φ10 |
Φ12 |
Φ12 |
Max.cutting length |
mm |
86 |
125 |
185 |
130 |
130 |
185 |
Speed |
pcs/min |
160-240 |
120-160 |
120-180 |
120-160 |
120-160 |
85-135 |
P.K.O Stroke |
mm |
12 |
12 |
18 |
18 |
20 |
30 |
K.O Stroke |
mm |
65 |
100 |
150 |
100 |
100 |
160 |
Main ram stroke |
mm |
110 |
160 |
200 |
160 |
190 |
260 |
Main motor power |
kw |
11 |
11 |
15 |
22 |
22 |
30 |
Overall dim.of cut off die |
mm |
Φ30*45L |
Φ30*45L |
Φ35*56L |
Φ35*56L |
Φ45*56L |
Φ45*59L |
Overall dim.of punch die |
mm |
Φ40*90L |
Φ40*125L |
Φ45*125L |
Φ45*125L |
Φ53*125L |
Φ53*215L |
Overall dim.of main die |
mm |
Φ50*85L |
Φ50*130L |
Φ60*130L |
Φ60*130L |
Φ75*135L |
Φ75*185L |
Die pitch |
mm |
60 |
60 |
70 |
880 |
90 |
94 |
Approx.weight |
kg |
8,000 |
10,000 |
13,000 |
14,000 |
18,000 |
21,000 |
Applicable bolt diameter |
mm |
3-6 |
3-6 |
5-8 |
5-8 |
6-10 |
6-10 |
Shank length of blank |
mm |
10-65 |
10-100 |
25-150 |
15-100 |
20-152 |
80-300 |
5 station M10 Bolt Making Machine:
Specification |
Unit |
RNBF-65S |
RNBF-85L |
RNBF-105S |
RNBF-135L |
RNBF-165S |
RNBF-205S |
Station no. |
No. |
5 |
5 |
5 |
5 |
5 |
5 |
Forging power |
kg |
40,000 |
80,000 |
90,000 |
130,000 |
200,000 |
350,000 |
Max.cutting diameter |
mm |
Φ8 |
Φ10 |
Φ12 |
Φ15 |
Φ18 |
Φ23 |
Max.cutting length |
mm |
86 |
130 |
133 |
190 |
190 |
240 |
Speed |
pcs/min |
120-200 |
95-160 |
90-150 |
60-105 |
50-80 |
45-75 |
P.K.O Stroke |
mm |
12 |
26 |
20 |
30 |
35 |
46 |
K.O Stroke |
mm |
65 |
85 |
110 |
160 |
160 |
220 |
Main ram stroke |
mm |
110 |
140 |
190 |
270 |
285 |
346 |
Main motor power |
kw |
11 |
22 |
22 |
37 |
55 |
75 |
Overall dim.of cut off die |
mm |
Φ30*45L |
Φ35*62L |
Φ45*59L |
Φ63*69L |
Φ64*100L |
Φ75*120L |
Overall dim.of punch die |
mm |
Φ40*90L |
Φ45*115L |
Φ53*115L |
Φ60*130L |
Φ75*185L |
Φ90*215L |
Overall dim.of main die |
mm |
Φ50*85L |
Φ60*120L |
Φ75*135L |
Φ86*190L |
Φ108*200L |
Φ125*240L |
Die pitch |
mm |
60 |
80 |
94 |
110 |
129 |
140 |
Approx.weight |
kg |
10,000 |
16,000 |
20,000 |
31,000 |
52,000 |
40,000 |
Applicable bolt diameter |
mm |
3-6 |
5-8 |
6-10 |
8-12.7 |
10-16 |
12-20 |
Shank length of blank |
mm |
10-65 |
15-100 |
15-105 |
25-152 |
25-152 |
25-200 |
Machine Details And Workshop Display

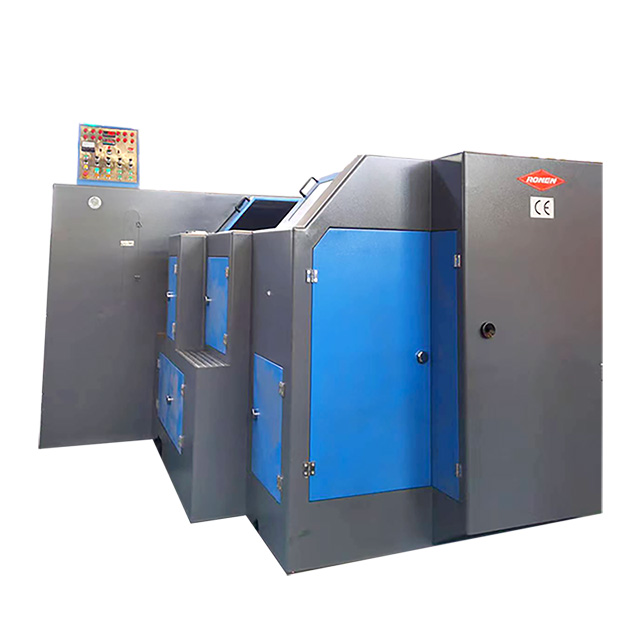

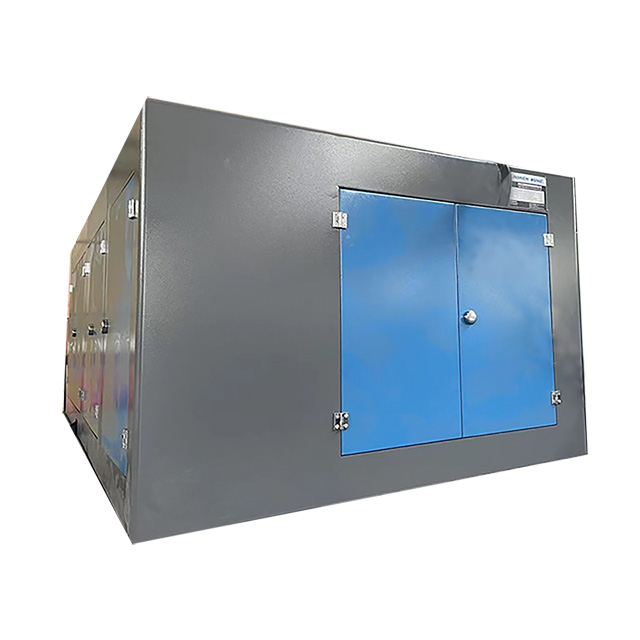

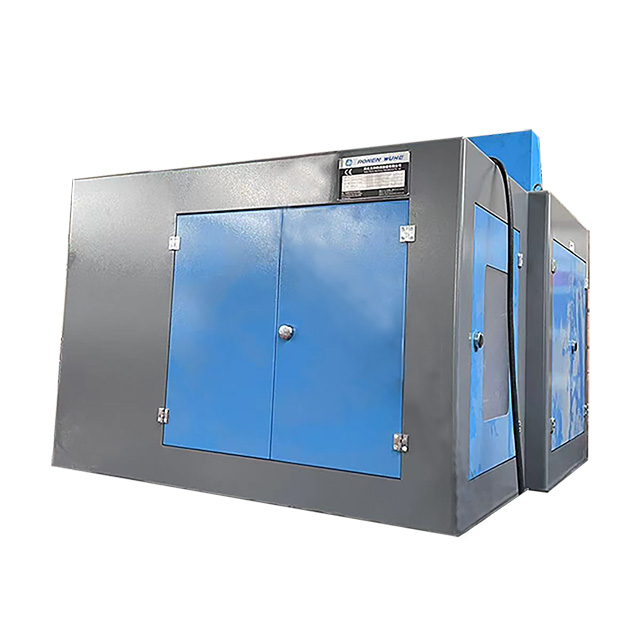

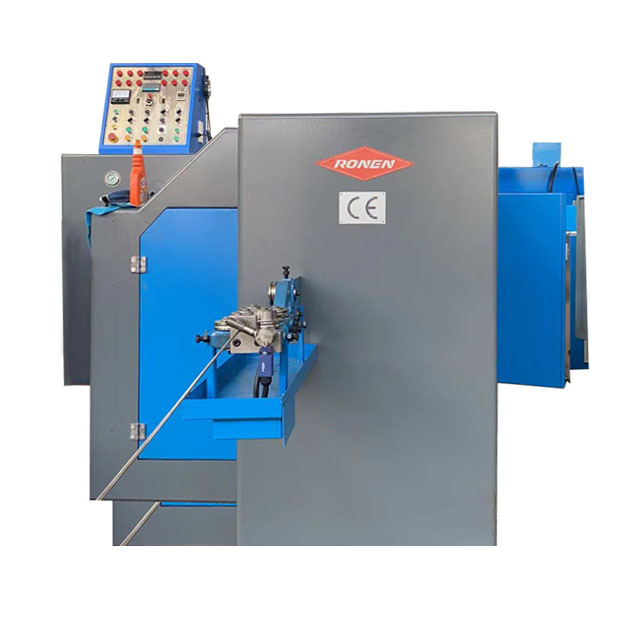

M10 Bolt Making Machine in RONEN workshop.
Finished product:
Product Function Display Video
Following is the working video of M10 Bolt Making Machine.
Certifications
M10 Bolt Making Machine: certificates.
FAQ
Q: What is the power supply of the M10 Bolt Making Machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.
Q: If it is beyond the warranty period, can we check the technical problems with you?
A: Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
Q: Can you provide commissioning video and samples?
A: Sure. We will update the information (photos, videos, etc.) with you during and after commissioning , and send samples. The shipment will be arranged only after you confirm it is correct.
