Ronen® factory Direct Sale Composite Groove Screw Part Thread Rolling Machine adapts a kind of advanced machining, can effectively improve the inner and surface quality of the workpiece, processing when the radial compressive stress, can significantly improve the fatigue strength and torsional strength, is a kind of high efficiency，energy saving,low consumption of the ideal process. We have the design and production engineers with more than 20 years of experience, we can customize according to your drawings or samples.
Composite Groove Screw Part Thread Rolling Machine advantages :
1.With the governor, you can adjust the processing speed, suitable for manual operation.
2.With can control, low failure rate, high yield.
3.The use of cooling cycle system,can make the roller wheel life is higher.
4.Another tooth front optional sub-seat, you can make the process longer and longer machine life, rolling the product more stable precision.
2.Product Parameter (Specification)
Two-Axles Hydraulic Composite Groove Screw Part Thread Rolling Machine:
|
Model |
M4-M20 |
M2-M12 |
|
Rolling method |
Single or continuous piece of thread rolling |
Single or continuous piece of thread rolling |
|
Rolling workpiece diameter range |
ø3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Thread pitch range |
0.4-2.5P |
0.4-1.5P |
|
The maximum length of the thread |
Fixed or Thru-feeding |
Fixed or Thru-feeding |
|
Rotate speed |
30r/min |
40r/min |
|
Roller outer diameter |
ø95-ø120mm |
ø98mm |
|
Roller inner diameter (grove) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
Roller thickness |
60mm |
50mm |
|
Capacity |
80pcs/min |
80-220pcs/min |
|
Host motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulic motor |
2HP(1.5KW) |
2HP(1.5KW) |
|
Weight |
680 KG |
3600KG |
|
Mechanical volume |
1100*1000*1200mm |
1000*1450*750mm |
Three-Axles Cam Type Composite Groove Screw Part Thread Rolling Machine:
|
Model |
M12-M35 |
M20-M60 |
|
Rolling method |
Single piece of thread rolling |
Single piece of thread rolling |
|
Rolling workpiece diameter range |
ø11.2--ø34.2mm |
ø19.2-ø59.2mm |
|
Thread pitch range |
0.5-2.5P |
0.8-3.5P |
|
The maximum length of the thread |
26mm |
26mm |
|
Rotate speed |
480r/min |
300r/min |
|
Roller outer diameter |
ø45-ø75mm |
ø52-ø115mm |
|
Roller inner diameter (grove) |
ø35mm(10×5) |
ø40mm(12×6) |
|
Roller thickness |
30mm |
30mm |
|
Capacity |
28pcs/min |
20pcs/min |
|
Host motor |
1.5Kw |
3Kw |
|
Hydraulic motor |
380v |
380v |
|
Weight |
220KG |
280KG |
|
Mechanical volume |
1000*850*1250mm |
1100*950*1250mm30mm |
Three-Axles Thru-Feed Composite Groove Screw Part Thread Rolling Machine:
|
Model |
Max. Thread Diameter (mm) |
Max. Thread Length (mm) |
Moving Dies Stationary Length (mm) (L*TH.*W) |
Motor (Kw) |
Capacity (pcs/min) |
Volume (L*W*H) (m) |
Weight (Kg) |
|
|
M6-70 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-200 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |

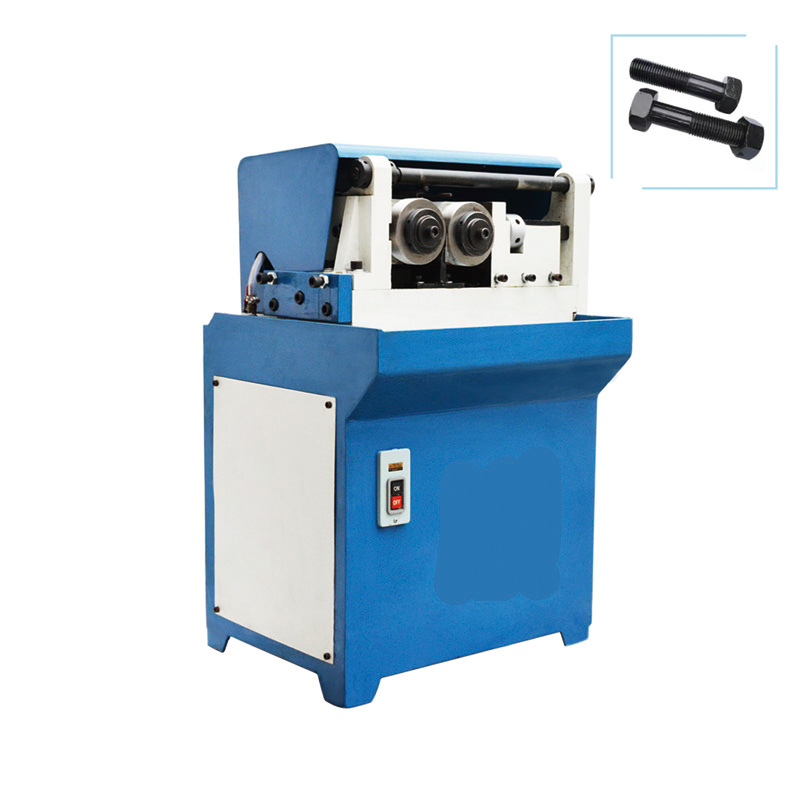

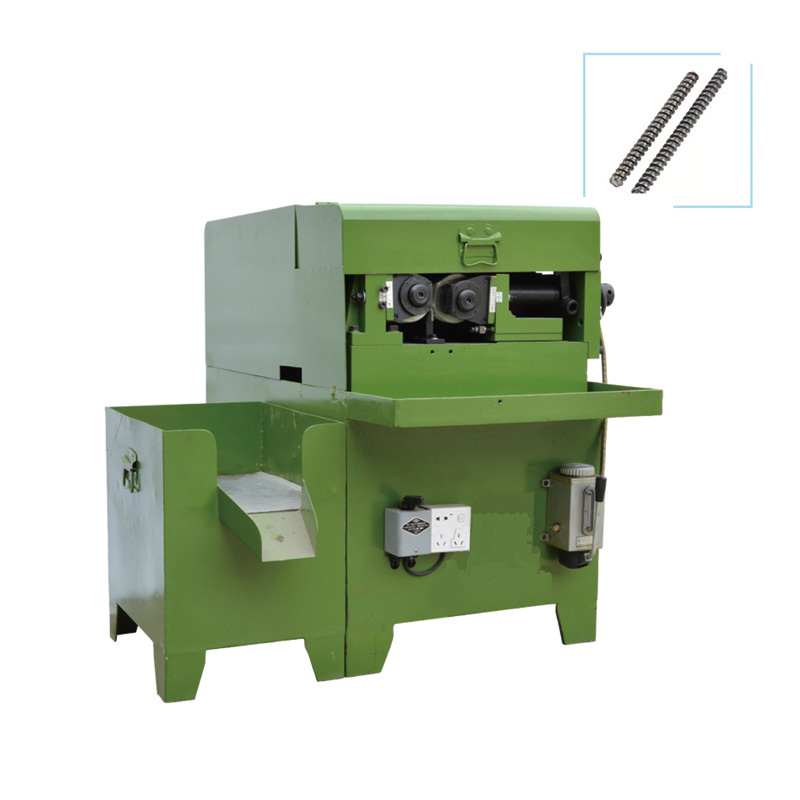

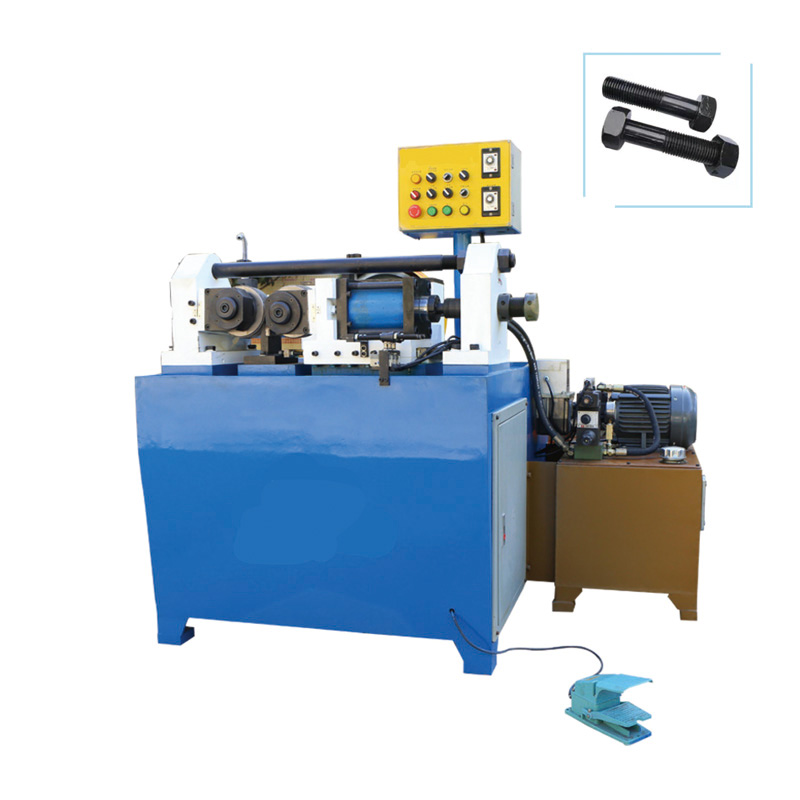

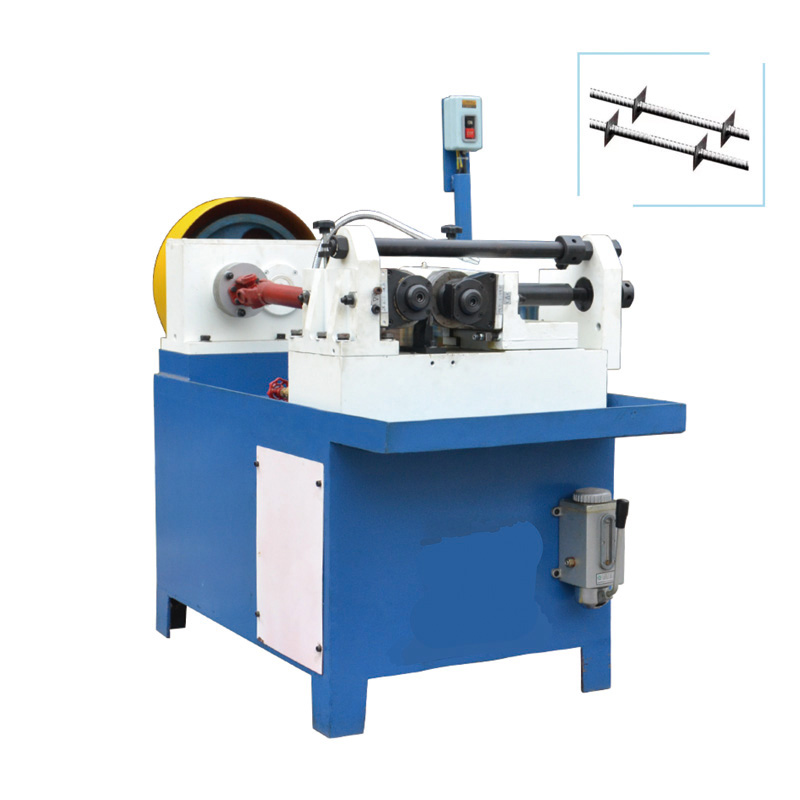

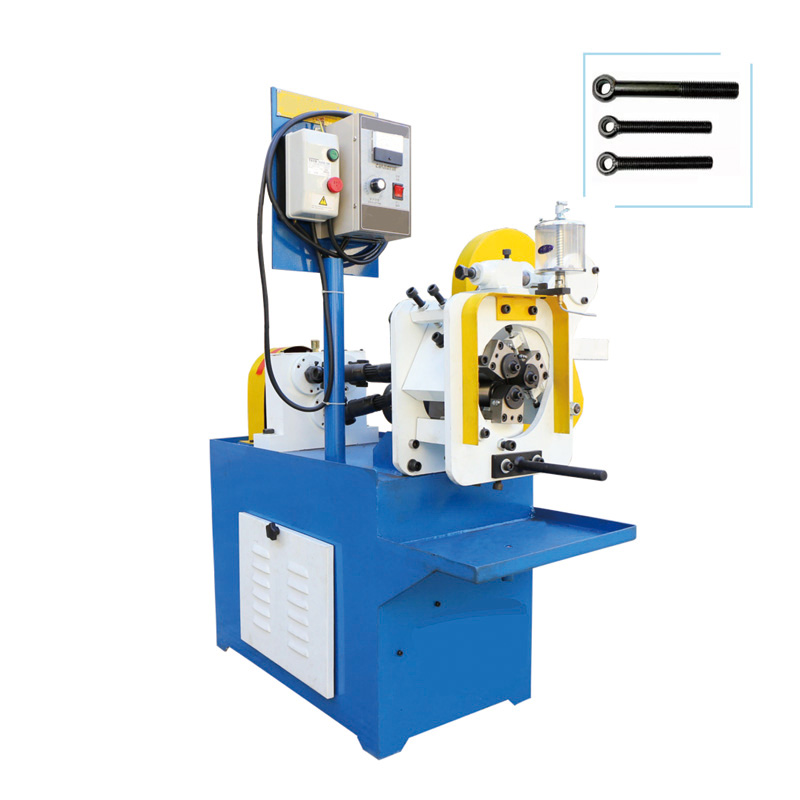

Machine Display
Composite Groove Screw Part Thread Rolling Machine:
Finished products:
Product Display Video
Composite Groove Screw Part Thread Rolling Machine video.
